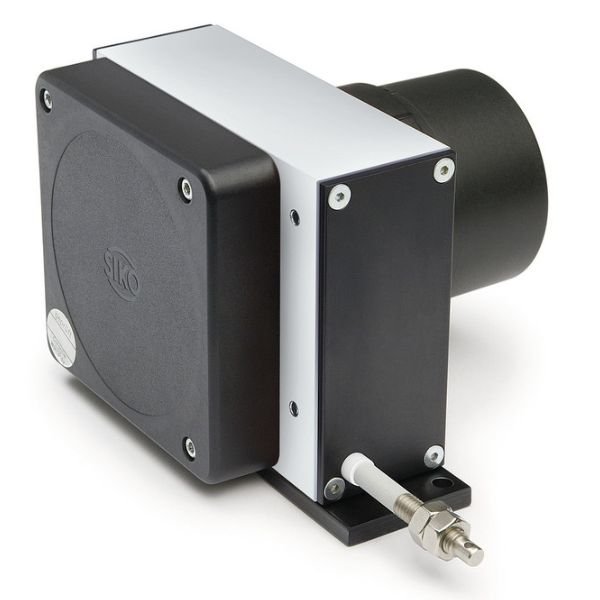

Siko SGP/1 Draw-Wire Encoder

Siko SGP/1 Draw-Wire Encoder robust design with analog output and 6000 mm measurement length. Wire-actuated encoder with analog output, potentiometric, current source, or voltage output, with a measuring length of up to 6000 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.

Siko SGP/1 Draw-Wire Encoder robust design with analog output and 6000 mm measurement length. Wire-actuated encoder with analog output, potentiometric, current source, or voltage output, with a measuring length of up to 6000 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.

Only a wire-actuated encoder can be used as a linear measured displacement encoder for many applications because no guided sensor systems can be used due to the spatial constellation.

Profile Siko SGP/1 Draw-Wire Encoder:

  • Robust design
  • Measurement lengths up to max. 6000 mm
  • Potentiometer, voltage, or power output
  • Housing made of aluminum and plastic
  • Potentiometer/resistance range adapted to actual measurement length via an integrated gear
  • Various wire types

Benefits of Siko SGP/1 Draw-Wire Encoder

  • Temperature range up to -40° C
  • Robust even when wet and dirty
  • Easy installation of the wire extension
  • Flexible system integration of any output signals and interfaces
  • Optional increased safety thanks to redundant sensors

Features

  • Robust design
  • Measurement lengths up to max. 6000 mm
  • Potentiometer, voltage, or power output
  • Housing made of aluminum and plastic
  • Potentiometer/resistance range adapted to actual measurement length via an integrated gear
  • Various wire types

Applications

Only a wire-actuated encoder can be used as a linear measured displacement encoder for many applications because no guided sensor systems can be used due to the spatial constellation.

Specifications

Feature Technical data Additional information
Housing aluminum/plastic
Wire design ø0.54 mm rustproof stainless steel
ø0.87 mm rustproof stainless steel, plastic-coated
ø1.05 mm para-line
Extension force ≥8 N
Measured distance/ rope drum revolution 200 mm
Acceleration ≤23.5 m/s2
Weight ~0.7 kg

Downloads

Datasheet: Siko SGP1 Draw-Wire Encoder
