Description

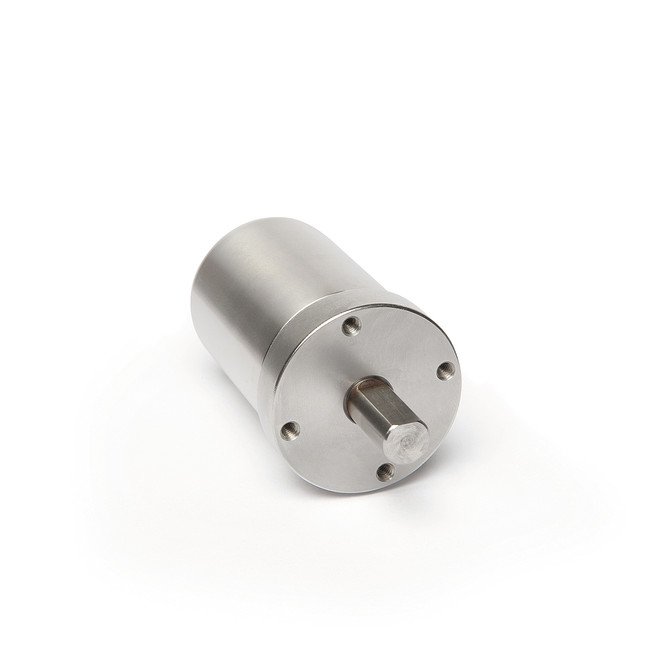

Siko WV42HD Absolute Encoder
Siko WV42HD Absolute Encoder, a heavy-duty absolute rotary encoder. The magnetic absolute multi-turn rotary encoder in heavy-duty stainless-steel design is batteryless, robust, and flexible. The WV42HD is predestined for demanding measuring jobs in the heavy-duty area owing to its extremely robust housing, its bearings, which are designed to tolerate high radial and axial loads as well as its high resistance against external impact.
Profile Siko WV42HD Absolute Encoder:
- Heavy-duty design in stainless steel
- Compact design (42 mm diameter)
- IP6K9K, IP68 protection class
- Resistant to salt spray and acids
- CANopen interface, SSI, analog
- Multi-turn without battery
- High shaft load ability of up to 270 N
- 16-bit multi-turn (65536 revolutions)
- 13-bit single-turn (8192 revolutions)
Benefits of Siko WV42HD Absolute Encoder
- Absolute measurement system
- Very high resolution
- Precise positioning
- Different interfaces
- Fieldbus interfaces
- Miniature designs also available in heavy-duty housings
