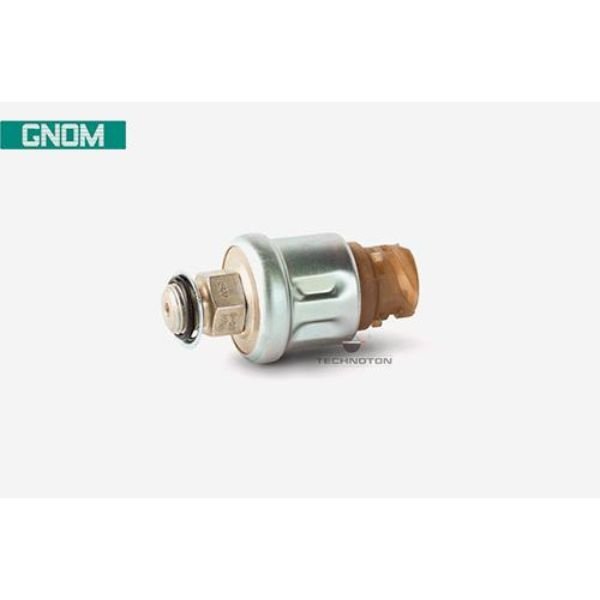

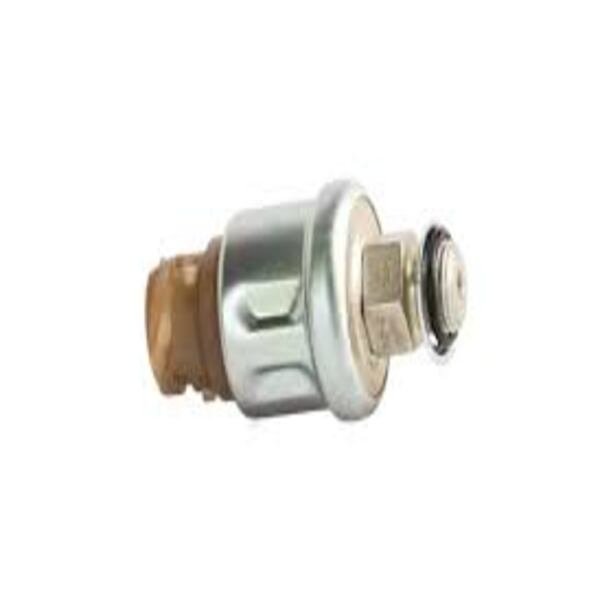

Technoton GNOM DDE Axle Load Sensor

Technoton GNOM DDE Axle Load Sensor is used to determine the axle load in vehicles equipped with air suspension in transport telematics systems.

Technoton GNOM DDE Axle Load Sensor is used to determine the axle load in vehicles equipped with air suspension in transport telematics systems.
A pressure sensor measures the pressure in the vehicle’s pneumatic system and transmits data as an analog signal to the telematics terminal. It is recommended to use the online terminals gateway CANUp to organize transport tracking with axle load and weight monitoring or use MasterCAN Display 35.

Technoton has 20 years of experience in developing, manufacturing, and installing aftermarket vehicle electronics for fuel monitoring and operating parameter analysis of highway trucks, light commercial vehicles, diesel trains, construction and agricultural equipment, riverboats, tractors, and special equipment. Also, the solutions are applicable for stationary units – fuel storages, boilers, burners, and diesel generators.

Features

  • compliance with European and Russian automobile standards;
  • the linear characteristic of the output signal simplifies data processing by a fleet monitoring system;
  • the output signal is stabilized and doesn’t depend on onboard voltage;
  • short circuit and cords confusion protection;
  • mounting elements included.

Applications

• Axle load
• In-motion cargo weight measurement
• Heavy and Lightweight trucks with or without trailer
• Road assistance trucks
• Garbage trucks
• Concrete mixers and etc.

Specifications

Inlet pressure, MPa 0…0.8
Supply voltage, V 8…32
Ingress Protection Rating IP55
Thread М16х1,5
Operating temperature, °С -40…+80
Weight, g, not more than 150

Downloads

Datasheet: Technoton GNOM DDE Axle Load Sensor
