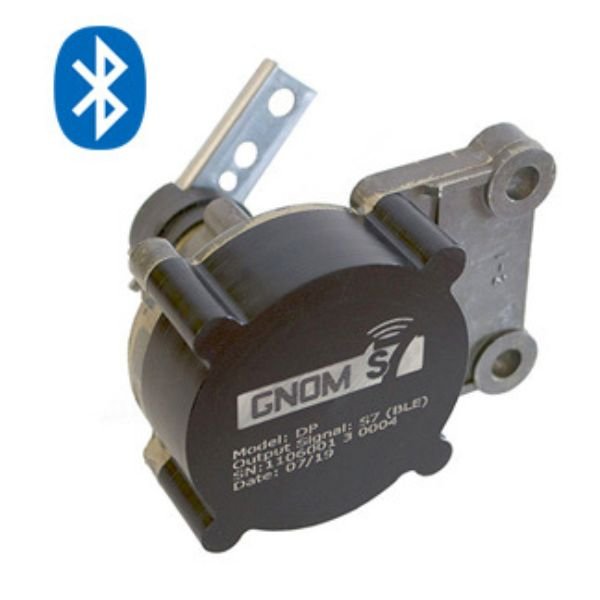

Technoton GNOM DP S7 Wireless Axle Load Sensor

Technoton GNOM DP S7 Wireless Axle Load Sensor is used in transport telematics systems (GPS/GLONASS vehicle monitoring systems) to monitor axle loads, determine the axle load in vehicles with spring suspension, and prevent exceeding axle loads.

GNOM DP S7 wireless axle load sensor is used to determine the vertical movement of the carriage frame relative to the axis of the vehicle when placing cargo in the body of the vehicle or in a canvas cover. This hardware is installed on the rear axle or the rear bogie of the vehicle. Wireless data transfer via Bluetooth Low Energy provides an opportunity to monitor the axle load of vehicle with the help of an online vehicle monitoring system and also directly on board – via smartphone, tablet, or driver’s cab display with Bluetooth 4. X.

Features

in-built-battery, power supply from battery up to 5 years
wireless data transfer using S7 Technology via BLE-channel
operation in «advertising» mode – no need to interlink with Receiver, the readings are sent to several receivers simultaneously
data transfer to the smartphone and tablet
no cables – quick and easy installation, improved resistance to vandalism or accidental damage

Applications

• Axle load
• In-motion cargo weight measurement
• Heavy and Lightweight trucks with or without trailer
• Road assistance trucks
• Garbage trucks
• Concrete mixers and etc.

Specifications

Measuring range of the angle of rotation of the lever, deg	0 … 360
Inaccuracy, ± %	1,5
Interface	Bluetooth 4.X
Tx power, dBm	+ 4
Rx sensitivity, dBm	– 88
Line-of-sight distance, m, not less than	50
Battery life, years, not less than	5
Operating temperature, ºC	-40…+80
Ingress protection rating (IP Сode)	IP55

Downloads

Datasheet: Technoton GNOM DP S7 Wireless Axle Load Sensor Leaf Spring Suspension
