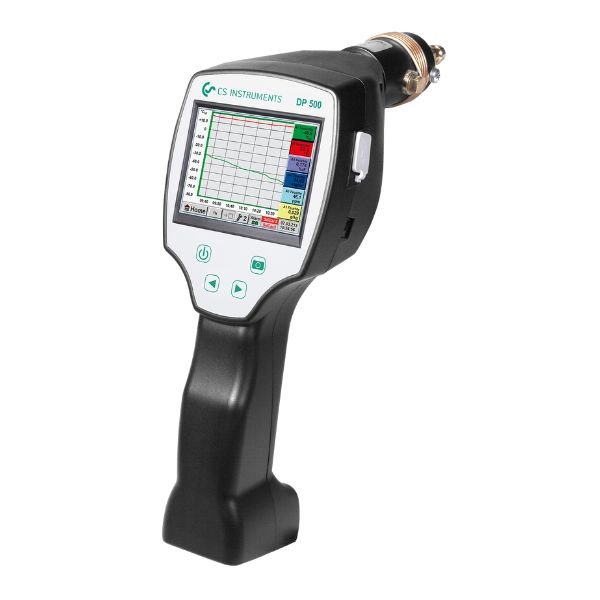

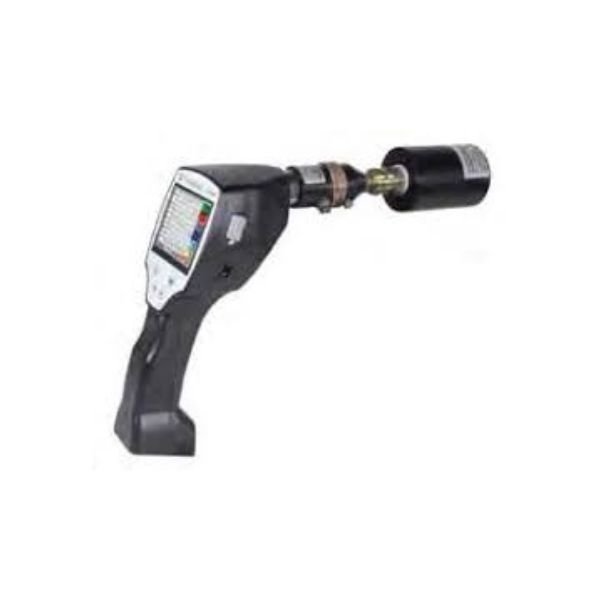

CS Instruments DP 500 – Portable Dew Point Meter

CS Instruments DP 500 – Portable Dew Point Meter with data logger is the ideal portable service instrument for dew point measurement for all types of dryers down to -80°Ctd dew point. The 3.5“ graphic display with a touch screen makes the operation very easy. The graphic indication of colored measuring curves is unique. Ideal for measurement of the current dew point and for graphic indication of the dew point curve/ the switching behavior of the dryer over a longer period of time.

Up to 100 million measured values can be stored with date and measuring site name. The measured data can be transferred to the computer via a USB stick. The data can be evaluated comfortably by means of the software CS Soft Basic. Measured data and service reports can be issued easily and quickly.

Features

Percise dew point measurement down to -80°Ctd
Quick response time
3.5″ graphic display / easy operation via touch screen
Integrated data logger for storage of the measured values
USB interface for reading out via USB stick
Calculates all necessary moisture parameters like g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm
International: Up to 8 languages selectable

Applications

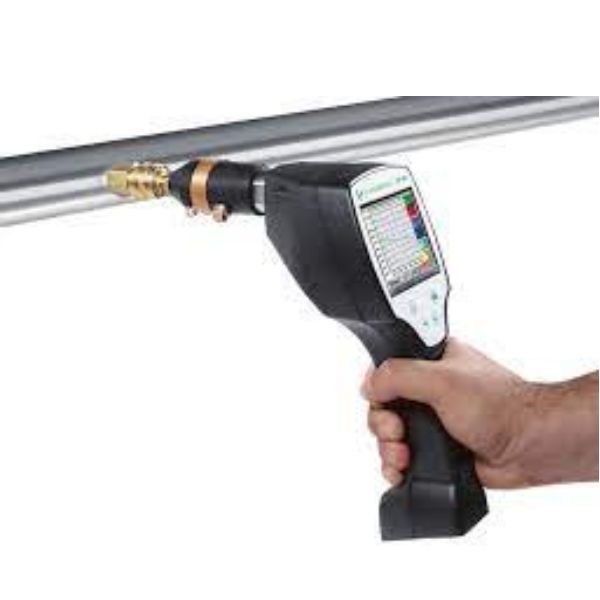

Mobile dew point measurement when servicing dryers

Specifications

Display: 3.5″ touch screen
Measuring range: -80…+50 °Ctd
-20…+70 °C
0…100% RH
Accuracy: ± 0.5 °Ctd at
-10…+50 °Ctd
Typ. ± 2 °Ctd (further range)
Moisture parameters:
g/m³, mg/m³, ppm V/V, g/kg,
°Ctdatm, % RH
Pressure range: -1…50 bar standard
-1…350 bar special version
Interface: USB interface
Data logger: 16 GB SD memory card
(100 million values)
Power supply: Output voltage: 24 VDC ±
10%
Output current: 120 mA in
continuous operation
Power supply: Internal rechargeable Li-Ion
batteries, approx. 12 h
continuous operation, 4 h
charging time
Screw-in thread: G 1/2″ stainless steel
Ambient temperature:
0…+50 °C
EMC: DIN EN 61326-1
