Thermax 4 Level Micro Temperature Label Sensor

Thermax 4 Level Micro Temperature Label Sensor is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved with Various styles of labels produced to cover temperatures. Available in a wide range of temperatures and sizes. These irreversible labels can be used in numerous applications such as Food, Medical, Automotive, Aerospace, and Engineering.

Thermax 4 Level Micro Temperature Label Sensor is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved with Various styles of labels produced to cover temperatures. Available in a wide range of temperatures and sizes. These irreversible labels can be used in numerous applications such as Food, Medical, Automotive, Aerospace, and Engineering.

Inexpensive and Easy to Use, Immediate Response, Permanent Record of Highest Temperature Reached, Oil, Water, and Steam Resistant. a fast, simple temperature monitoring system based on Proprietary color change technology

Thermax is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved. Available in a wide range of temperatures and sizes.

These self-adhesive labels consist of a series of temperature-sensitive elements sealed between heat-resistant substrates with transparent windows. Each element changes color distinctly as its rated temperature is exceeded. The changes are irreversible, providing a temperature history of the surface being monitored. The labels will not de-laminate when removed for reference and can be attached to an inspection report to serve as a permanent record.

Features

Peel the temperature-indicating label from the backing paper. Apply to dust & grease-free surfaces. Indicators change from white/grey to black when the temperature rating has been achieved.

  • Inexpensive and Easy to Use
  • Immediate Response
  • Permanent Record of Highest Temperature

Accuracy Tolerances:

  • Less than 100°C is +/-1°C
  • 100°C to 154°C is +/-1.5°C
  • Greater than 154°C is +/-4ºC
  • Temperature range 29-290°C
  • Silver to Black Color Change
  • Last Black Event is the highest temperature achieved

***Note that labels with a polyimide film will appear orange to start.

Applications

These irreversible labels can be used in numerous applications such as :

  • Food
  • Medical
  • Automotive
  • Aerospace
  • Engineering

Specifications

4 Level Micro Range 1    40-46°C

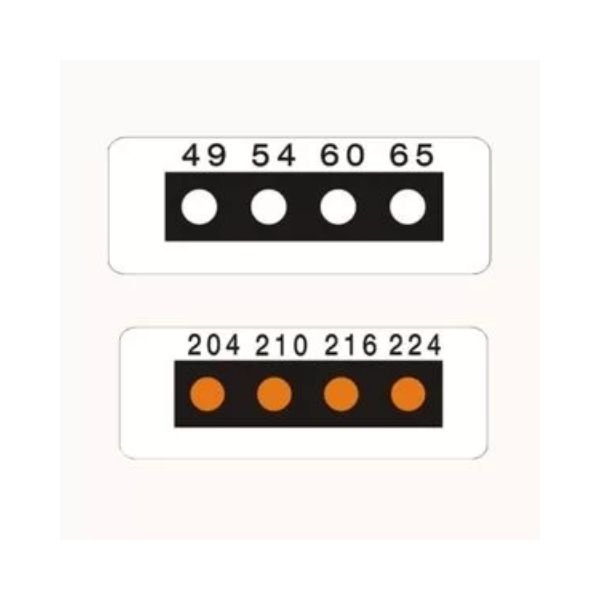

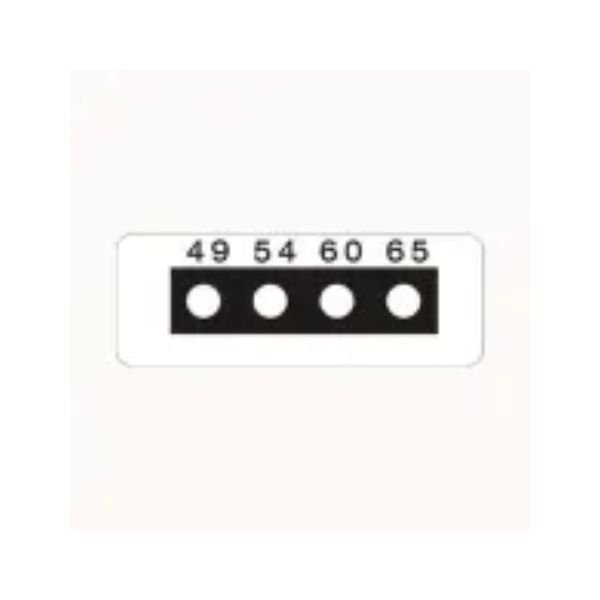

4 Level Micro Range 2    49-65°C
4 Level Micro Range 3    71-88°C
4 Level Micro Range 4    93-110°C
4 Level Micro Range 5    116-132°C
4 Level Micro Range 6    138-154°C
4 Level Micro Range 7    160-177°C
4 Level Micro Range 8    182-199°C

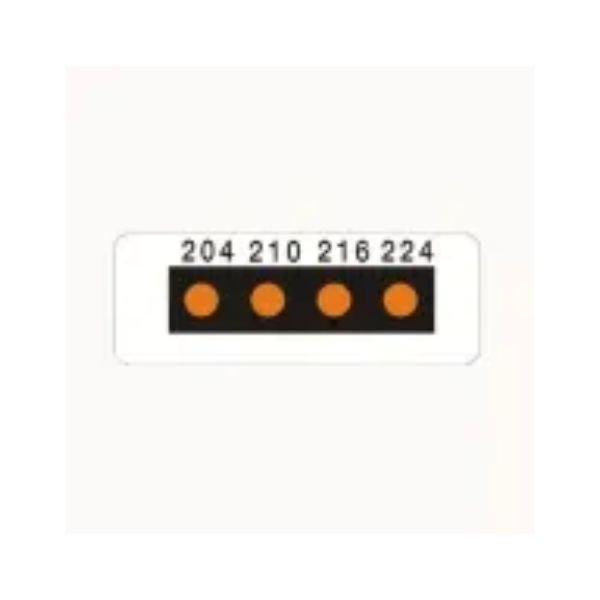

4 Level Micro Range 9    204-224°C

Size: 0.15″x0.43″ / 4x11mm

Type: Horizontal, Self Adhesive

Scale: °C

Pack Size: Sold in units of 10

Downloads

Datasheet : Thermax 4 Level Micro Temperature Label Sensor
