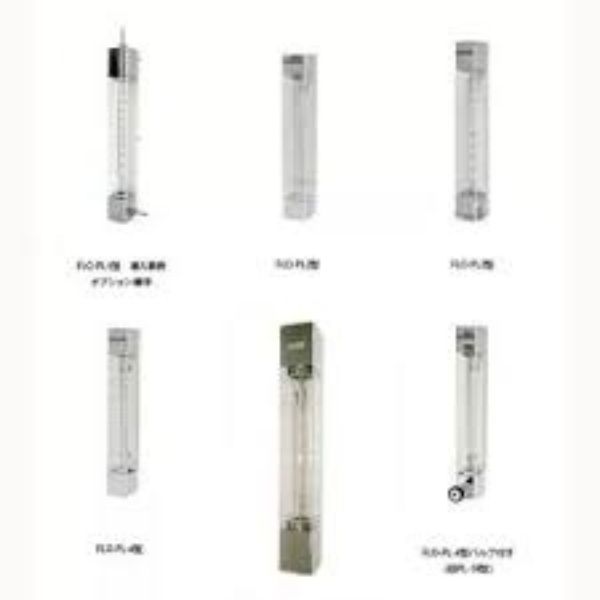

Tokyo Ryuki Kogyo FLO-L65/FLO-L68 Variable Area type flowmeter with a base (level). High-precision flow measurements can be performed in laboratories, laboratories, etc.

Tokyo Ryuki Kogyo FLO-L65/FLO-L68 Descriptions

This is a highly accurate area flow meter that can directly read the instantaneous flow rate of various liquids and gases from the scale indicated by the float. Valve adjustment allows you to freely adjust the flow rate. It is used for general equipment and panel mounting in various industries including academic research institutes.

Tokyo Ryuki Kogyo FLO-L65/FLO-L68 is a high-precision area-type flow meter that can directly read the instantaneous flow rate of various types of liquids and gases from the scale indicated by the float.

Variable Area type flow meter with a base (level). Highly accurate flow rate measurement is possible in laboratories and laboratories. It is a high-precision area-type flow meter that can directly read the instantaneous flow rate of various types of liquids and gases from the scale indicated by the float. The flow rate can be freely adjusted by adjusting the valve. It is used for general equipment and panel mounting in various industries including academic research institutes.

Features

For liquid measurement (float: SUS304, etc.)
* Density = 1.0 g / cm3 and viscosity = 1 cP are standard.
For gas measurement (float: aluminum, etc.)
* The flow rate is displayed by flowing AIR 20 ° C and converting it to the standard state of 0 ° C atm (0.101MPa (A)). (Unit: NL / min)
* Manufactured in standard condition (atmospheric pressure 20 ° C) upon request. (Unit: SL / min)

Applications

Liquid
water
coolant
transparent liquids
Gas
air
nitrogen
argon
carbon
dioxide

Specifications

Classification No	Flow rate display	Flow rate display	Connection diameter	External dimensions mm
	H2O (L / min)	AIR (NL / min)	Rc
0	0.001 to 0.01	0.01-0.1	1 / 4B	320
1	0.05-0.5	0.5-5	1 / 4B	320
2	0.2-2.0	5-50	1 / 4B	320
3	0.5-5	15-150	1 / 4B	320
Four	1-10	20-200	1 / 2B	320
Five	2-20	40-400	3 / 4B	450
6	4-40	60-600	1B	530
7	7-70	90-900	1B	540

* Manufactured in standard condition (atmospheric pressure 20 ° C) upon request. (Unit: SL / min)

FLO-L65 Valveless type

	Flow direction	fluid	Classification	Wet contact material	valve	Packing material	Alarm output	Flow rate range / operating temperature / pressure
FLO-L65-	-□	-□	-0 □	-T	-V	-P	-□
	2 [Bottom side (right) → Top side (left))]	A [AIR]	0	BS	N [None]	1 [NBR]	0-None
	3 [Bottom side (left) → Top side (right)]	W [Wed]	1	SUS304		2 [CR (neoprene)]	1-Yes (conditional)
	4 [Bottom back → Top back]	Any	2	SS		3 [M Byton]
