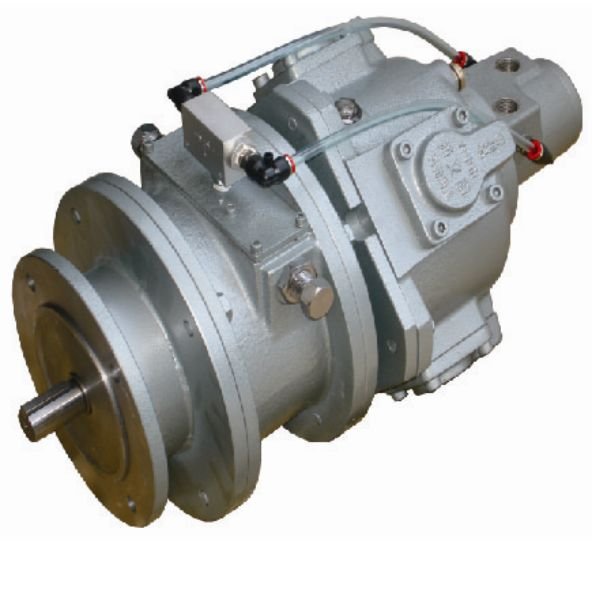

Tonson M11 Standard Piston Air Motor

Tonson M11 Standard Piston Air Motor patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane-type air motors. Air Motors are designed to operate by compressed air and to be used with a filter, regulator, and lubricator to improve performance and provide longer life.

Tonson M11 Standard Piston Air Motor

Tonson M11 Standard Piston Air Motor patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane-type air motors. Air Motors are designed to operate by compressed air and to be used with a filter, regulator, and lubricator to improve performance and provide longer life. Air Motors can easily work under unfavorable conditions for electric, hydraulic, stepper, and servo motors.

Tonson M11 Standard Piston Air Motor Piston Air Motors can easily operate under conditions unsuitable for Electric Motors and operate in exceptional environments conditions including:

  • Very high/low ambient temperatures
  • Radiated heat
  • Powdery/Dust
  • Humid
  • Corrosive
  • Flammable
  • Explosive

Piston Air Motor Optional Accessories:

  • IEC Flange Or Foot Mount
  • Parking Brake
  • Valve Controls
  • Remote Control valve
  • Hand Control Valve
  • Instant Reversibility
  • Filter – Lubricator – Regulator (FRL)
  • Pressure Gauges
  • Silencers

Features

  • Explosion-proof
  • Stalling Safety
  • Rugged Design
  • Positive Start
  • High Start Torque
  • High Torque output
  • Instantly Reversible
  • Stepless Speed Control
  • Low Air Consumption
  • Easy Maintenance
  • Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available
  • Modular Design: All motors may be equipped with gear
  • reducer, brake, hand, remote, remote pendant control as options.
  • Dual-shaft model available.
  • Intrinsically safe in hazardous environment (ex. mines, petrochemical, volatile atmosphere

Applications

  • Hoist / Winches
  • Lifting Devices
  • Mixing Equipment
  • Pump Drives
  • Choppers / Grinders
  • Mining Equipment

Specifications

  • With Brake Option
  • Type: Standard
  • Gear Ratio: 1:1
  • Performance at Maximum Speed
  1. Power (HP): 1.36
  2. Power (kW): 1.00
  3. Torque: 6.57 N·m
  4. Torque: 58.1 lb·in
  5. Speed: 1450 RPM
  6. Air Consumption: 1750 l/min
  7. Air Consumption: 62 CFM
  8. Speed: 290 RPM
  • Maximum Torque
  1. Torque: 11.5 N·m
  2. Torque: 102 lb·in

Downloads

Datasheet : Tonson M11 Standard Piston Air Motor
