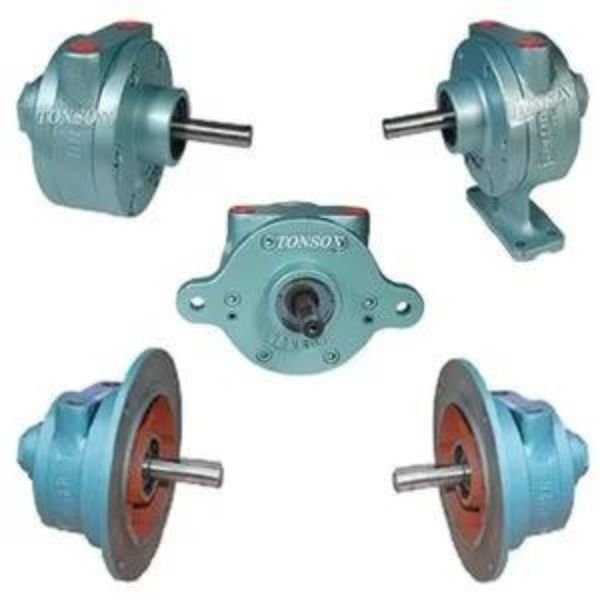

Tonson V2 B Brake Vane Air Motor

Tonson V2 B Brake Vane Air Motor patented high precision distinctive radial piston design delivers high torque without high levels

Tonson V2 B Brake Vane Air Motor patented high-precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane-type air motors.

Air Motors can easily operate under conditions that are not suitable for electric, hydraulic, stepper, and servo motors

  • Our Vane air motors are all reversible & Available in 8 Vanes
  • Dual output shafts are available
  • Gear reductions are available. Huge range of Reduction Gearboxes
  • Brakes are available as an option
  • Control valves are available

Vane Air motor applications are unlimited:

  • Hoists / Winches
  • Hose Reels
  • Turntables
  • Conveyor Drives
  • Pump Drives
  • Automation Device
  • Choppers / Grinders
  • Food / Pharmacy Packaging

Vane Air Motor Features Include:

  • Cast Iron Construction
  • 100% Explosion-Proof
  • Stalling Safety
  • Stepless Speed Control
  • Never Burn out
  • Self-Sealing & Cool Running
  • Smooth Start
  • Mounting Flexibility
  • All Plane Operation
  • Toleration of Environment

Features

  • 100% Explosion-proof
  • Never Burn Out
  • Mounting Flexibility
  • Stalling Safety
  • Self-Sealing & Cool Running
  • All Plane Operation
  • Stepless Speed Control
  • Smooth Start
  • Toleration of Environment

Applications

  • Hoist / Winches
  • Conveyor Drives
  • Automation Devices
  • Hose Reels
  • Mixing Equipment
  • Choppers / Grinders
  • Turntables
  • Pump Drives
  • Food / Pharmacy Packaging

Specifications

  • Series: V2
  • Type: B with Brake
  • Mounting: Face, Foot, Butterfly, NEMA 58C, IEC #72 D71, D72C (Metric)
  • Gear Ratio: 1:1
  • Performance at Maximum Speed
  1. Power (HP): 0.93
  2. Power (kW): 0.69
  3. Torque: 2.20 N·m
  4. Torque: 19.5 lb·in
  5. Speed: 3,000 RPM
  6. Air Consumption: 850 l/min
  7. Air Consumption: 30 CFM
  8. Speed: 350 RPM
  • Maximum Torque
  1. Torque: 3.05 N·m
  2. Torque: 27 lb·in

Downloads

Datasheet : Tonson V2 B Brake Vane Air Motor
