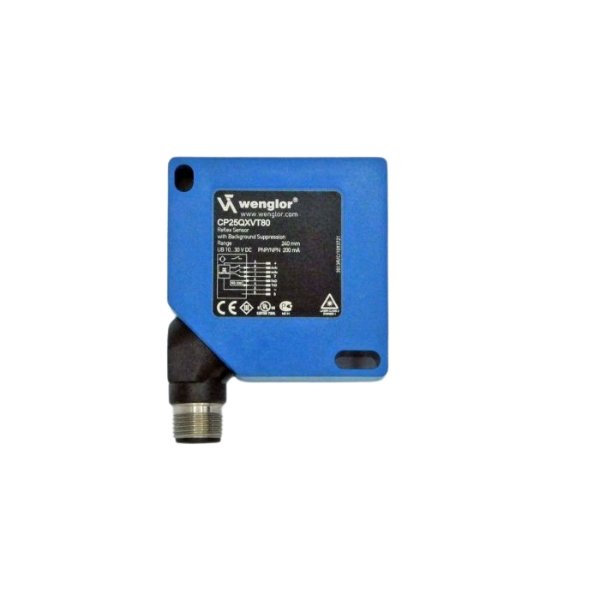

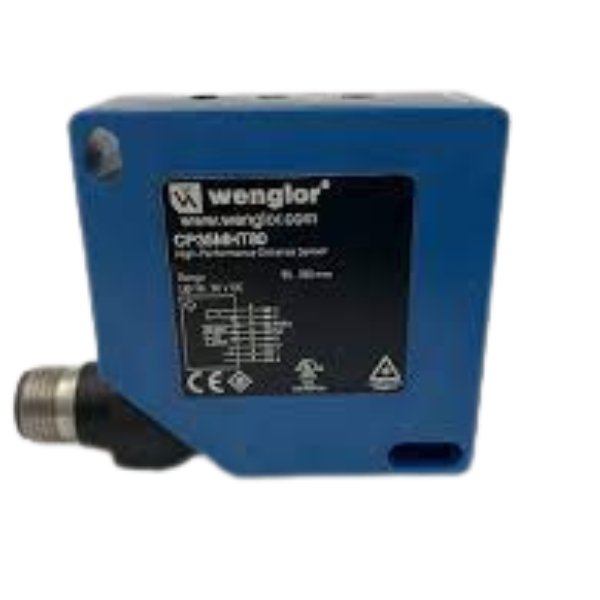

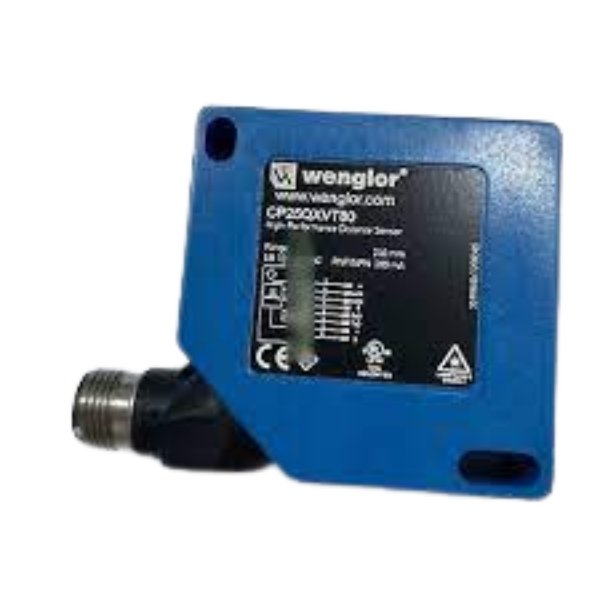

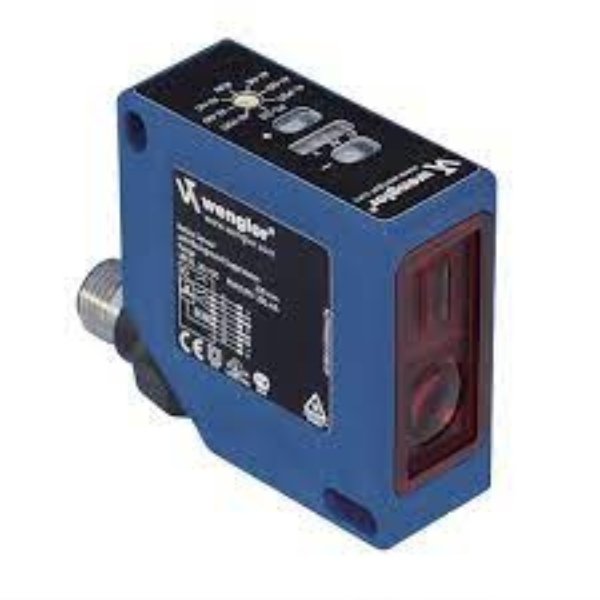

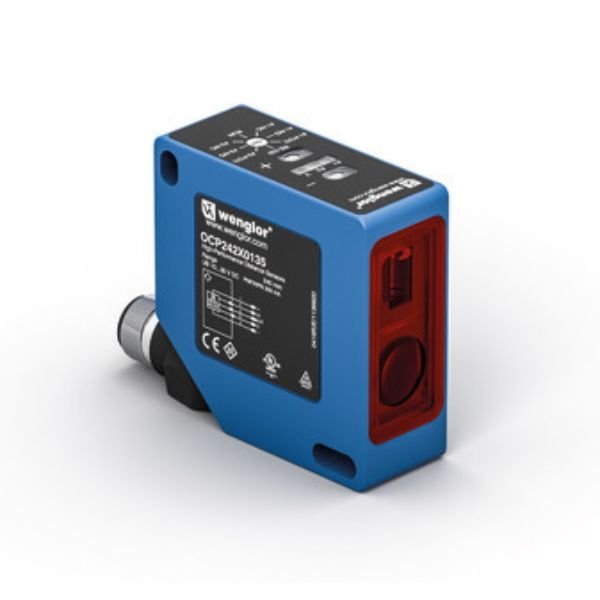

Wenglor CP25QXVT80 Sensor High Precision

Product Note:

No product notes available.

Description

Wenglor CP25QXVT80 Sensor High Precision

Wenglor CP25QXVT80 Sensor High Precision works with a high-resolution CMOS line and DSP technology and calculates the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color, and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.

Features at a Glance

  • Minimal switching hysteresis
  • Switching point independent of material, color, and brightness
  • CMOS line array
  • Highly accurate switching distance

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 500 Hz
Response Time 1 ms
On-/Off-Delay (RS-232) 0 … 1 s
Temperature Drift < 15 µm/K
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 1.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Teach Mode HT, VT, TP
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 0820586-000

Features

  • Minimal switching hysteresis
  • Switching point independent of material, color and brightness
  • CMOS line array
  • Highly accurate switching distance

Applications

Specifications

Optical Data

Range240 mm
Setting Range40 … 240 mm
Switching Hysteresis < 0.5 %
Light SourceLaser (red)
Wavelength655 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Light Spot Diametersee Table 1

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 50 mA
Switching Frequency500 Hz
Response Time1 ms
On-/Off-Delay (RS-232)0 … 1 s
Temperature Drift< 15 µm/K
Temperature Range-25 … 60 °C
Number of Switching Outputs2
Switching Output Voltage Drop< 1.5 V
Switching Output/Switching Current200 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Teach ModeHT, VT, TP
Baud Rate38,400 Bd
Protection ClassIII
FDA Accession Number0820586-000

Mechanical Data

Setting MethodTeach-In
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 8-pin

Output

Error Outputyes
PNP NOyes
RS-232 Interfaceyes

Adjustable parameters

OutputPush-pull
NPN
PNP
Error Output
Other parametersOff-delay
On-delay
Exposure time
Teach mode
Switching hysteresis
Laser light

Downloads

Datasheet : CP25QXVT80 CP70QXVT80 OCP662X0080 – Wenglor
