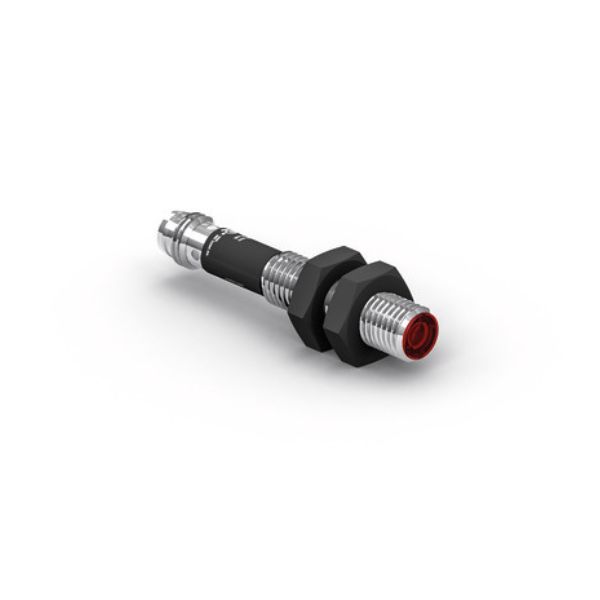

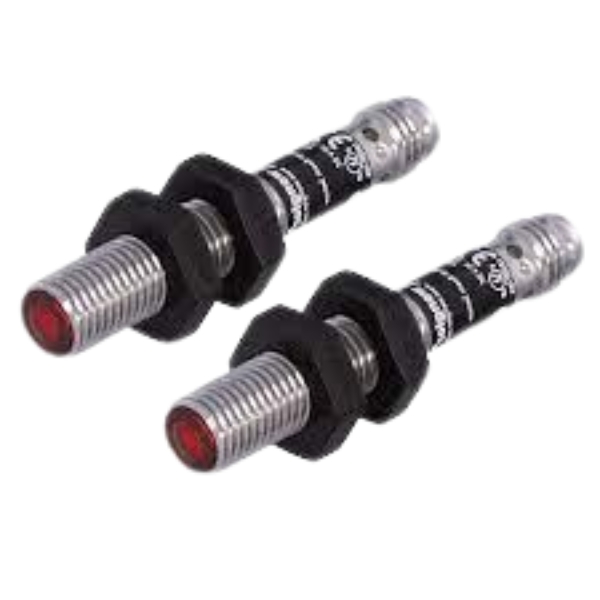

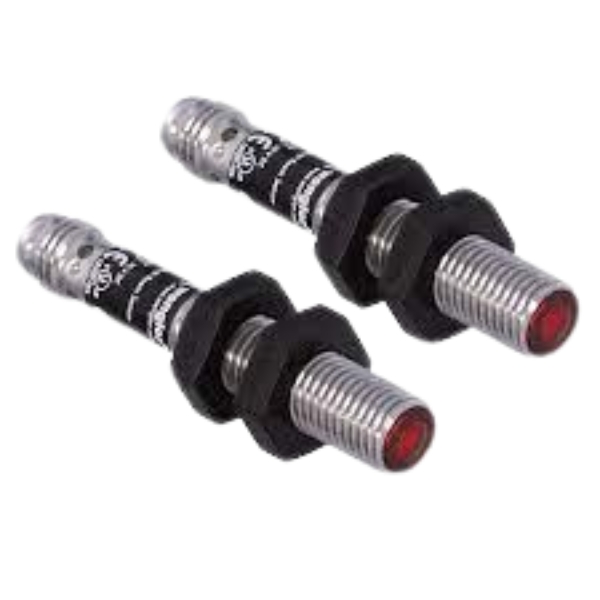

Wenglor EB77VB7 Through Beam Sensor

Wenglor EB77VB7 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. The sensors can be checked for correct functioning via the test input. The sensor switches as soon as an object interrupts the laser light, red light, or infrared light.

Wenglor EB77VB7 Through Beam Sensor

Wenglor EB77VB7 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input. The sensor switches as soon as an object interrupts the laser light, red light, or infrared light.

Features at a Glance

  • Insensitive to contamination
  • Ample performance reserves
  • Infrared light

Electrical Data
Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Features

  • Insensitive to contamination
  • Ample performance reserves
  • Infrared light

Applications

01 = Switching Status Indicator

Specifications

Optical Data

Range 1,500 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 20 °

Electrical Data

Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

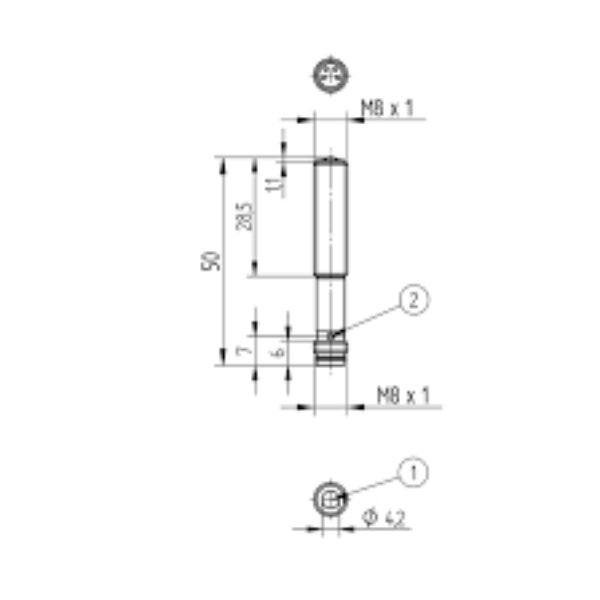

Mechanical Data

Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M8 × 1; 4-pin

Output

PNP NO yes

Downloads

Datasheet : Wenglor EB77VB7 Through Beam Sensor
