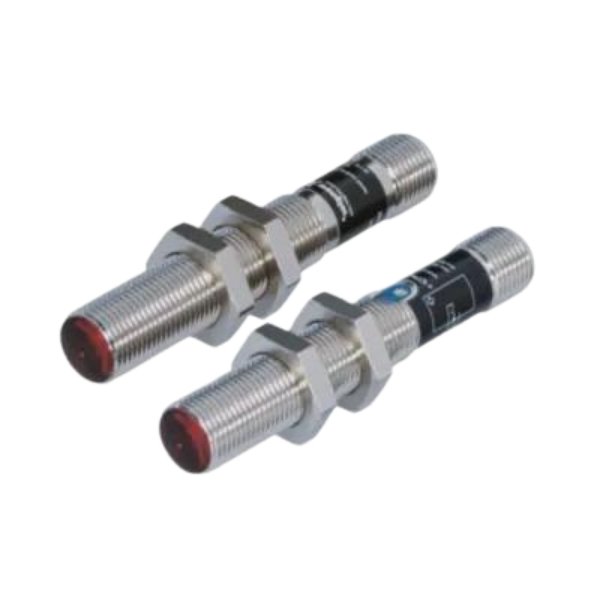

Wenglor EO98VB3 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor EO98VB3 Through Beam Sensor

Wenglor EO98VB3 Through Beam Sensor detects and counts small parts, detects the edges of objects and monitors passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light, or infrared light. the devices demonstrate excellent functional reliability in highly contaminated environments.

Features at a Glance

  • Ample performance reserves
  • Infrared light
  • Insensitive to contamination

Electrical Data
Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 250 Hz
Response Time 2 ms
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Features

  • Ample performance reserves
  • Infrared light
  • Insensitive to contamination

Applications

05 = Switching Distance Adjuster
01 = Switching Status Indicator

Specifications

Optical Data

Range10,000 mm
Switching Hysteresis < 15 %
Light SourceInfrared Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle8 °

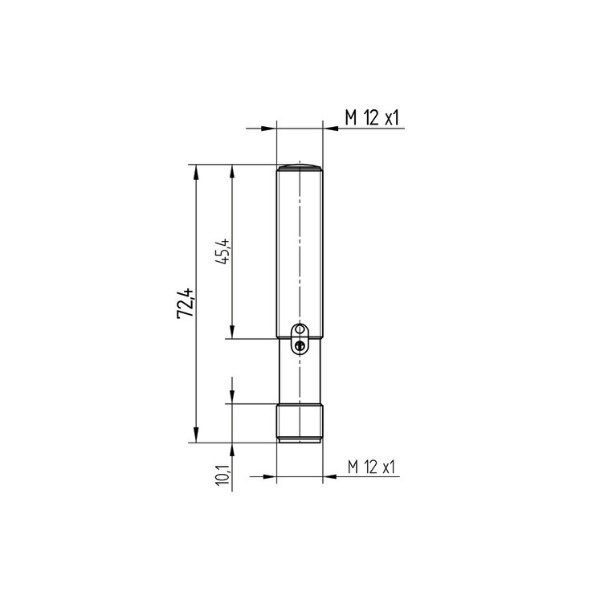

Mechanical Data

Setting MethodPotentiometer
Housing MaterialCuZn, nickel-plated
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)4,226.24 a

Output

PNP NOyes

Downloads

Datasheet : Wenglor EO98VB3 Through Beam Sensor
