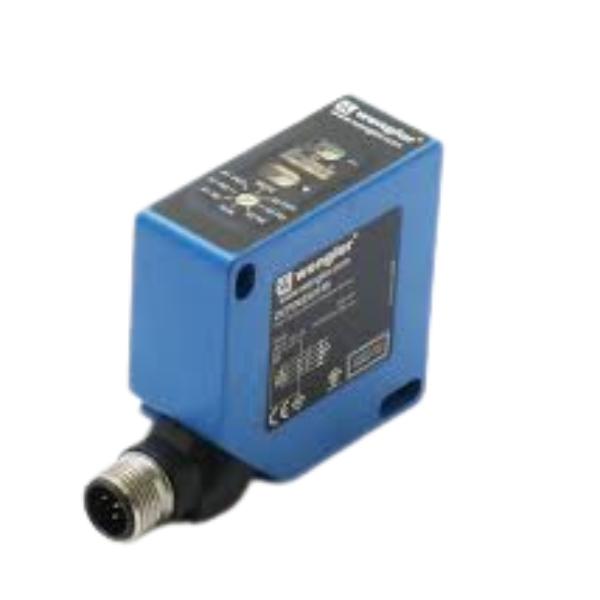

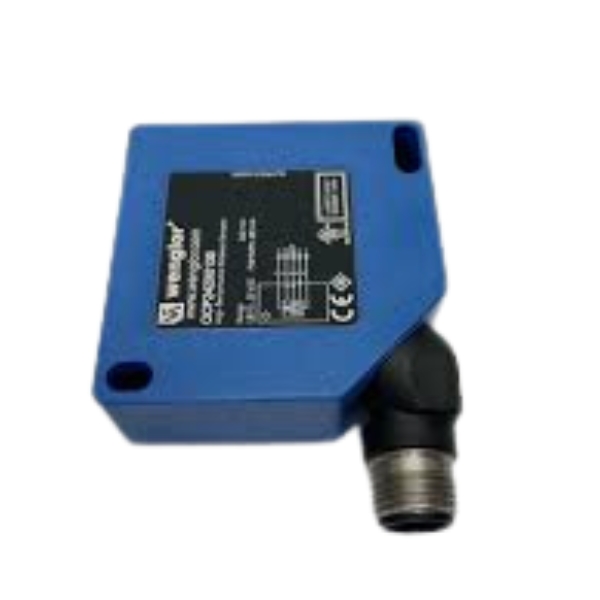

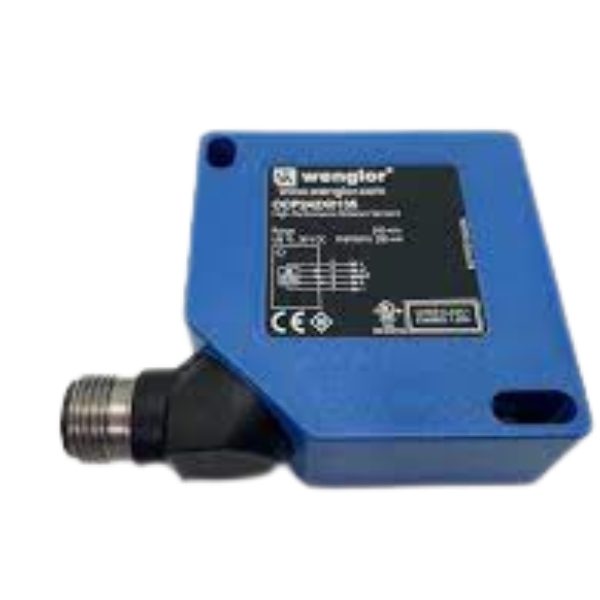

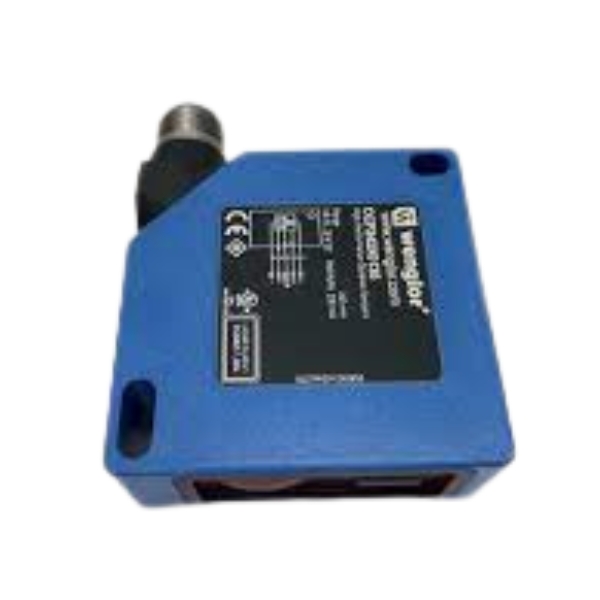

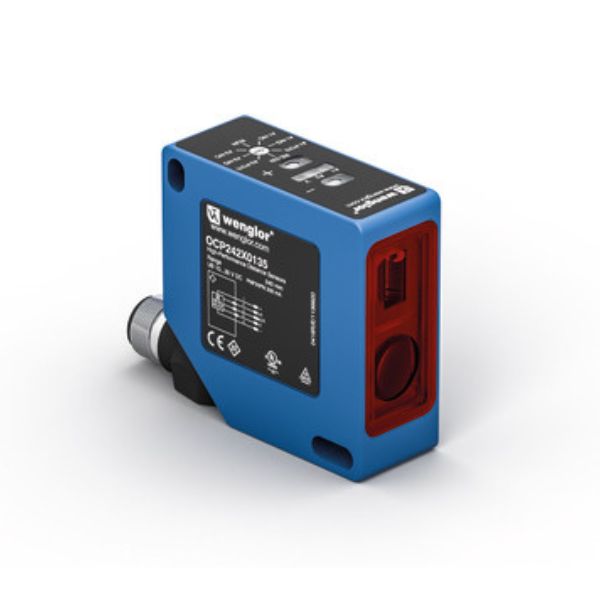

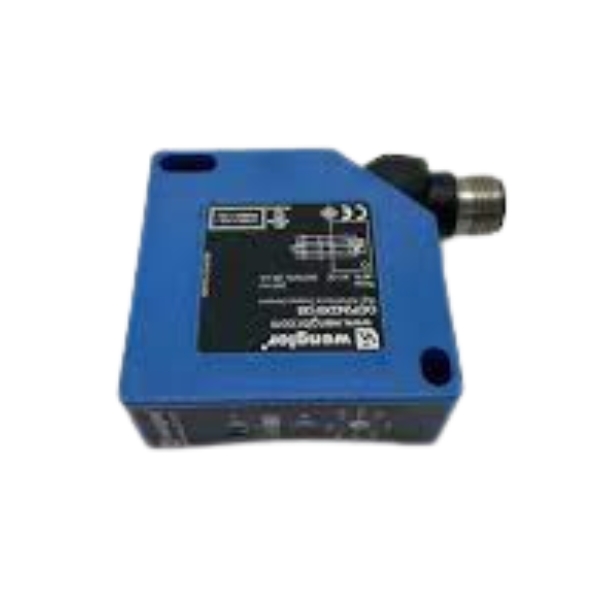

Wenglor OCP242X0135 Sensor High Precision

Product Note:

No product notes available.

Description

Wenglor OCP242X0135 Sensor High Precision

Wenglor OCP242X0135 Sensor High Precision works with a high-resolution CMOS line and DSP technology and calculates the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color, and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.

Features at a Glance

  • Minimal switching hysteresis
  • Switching point independent of material, color, and brightness
  • CMOS line array
  • Highly accurate switching distance

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 300 Hz
Response Time 1.7 ms
On-/Off-Delay (RS-232) 0 … 1 s
Temperature Drift < 15 µm/K
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 1.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Teach Mode HT, VT, FT, TP
Baud Rate 9,600 Bd
Protection Class III
FDA Accession Number 1120718-000

Features

Features Tab

  • Minimal switching hysteresis
  • Switching point independent of material, color and brightness
  • CMOS line array
  • Highly accurate switching distance

Applications

24 = Plus Button
25 = Minus Button
07 = Selector Switch
03 = Error Indicator
01 = Switching Status Indicator

Specifications

Optical Data

Range240 mm
Setting Range40 … 240 mm
Switching Hysteresis < 0.5 %
Light SourceLaser (red)
Wavelength655 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)1
Max. Ambient Light10,000 Lux
Light Spot Diametersee Table 1

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 50 mA
Switching Frequency300 Hz
Response Time1.7 ms
On-/Off-Delay (RS-232)0 … 1 s
Temperature Drift< 15 µm/K
Temperature Range-25 … 60 °C
Number of Switching Outputs2
Switching Output Voltage Drop< 1.5 V
Switching Output/Switching Current200 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Teach ModeHT, VT, FT, TP
Baud Rate9,600 Bd
Protection ClassIII
FDA Accession Number1120718-000

Mechanical Data

Setting MethodTeach-In
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 4/5-pin

Output

Error Outputyes
PNP NOyes
RS-232 with Adapterboxyes
External teach-in inputyes

Adjustable parameters

OutputError Output
Push-pull
NPN
PNP
CircuitNC
NC/NO
NO
Other parametersOff-delay
On-delay
Exposure time
Laser light
Switching hysteresis
Teach-in mode

Table 1

Detection Range40 mm240 mm
Spot Size0,4 × 0,9 mm1,1 × 2,3 mm

Downloads

Datasheet : Wenglor OCP242X0135 Laser Distance Sensor High Precision
