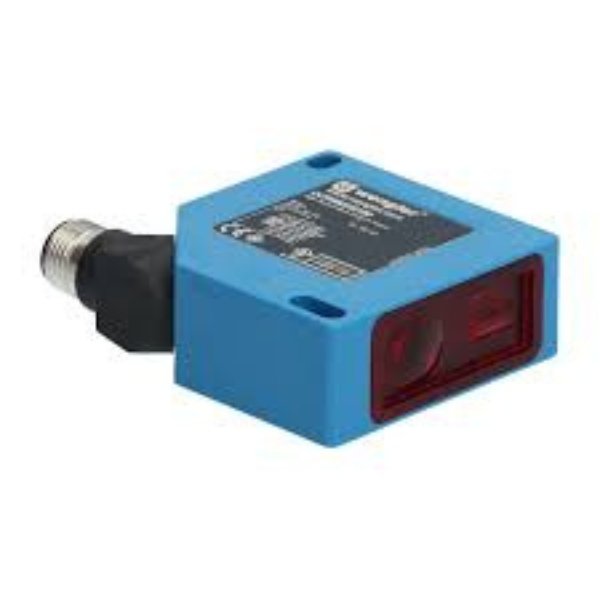

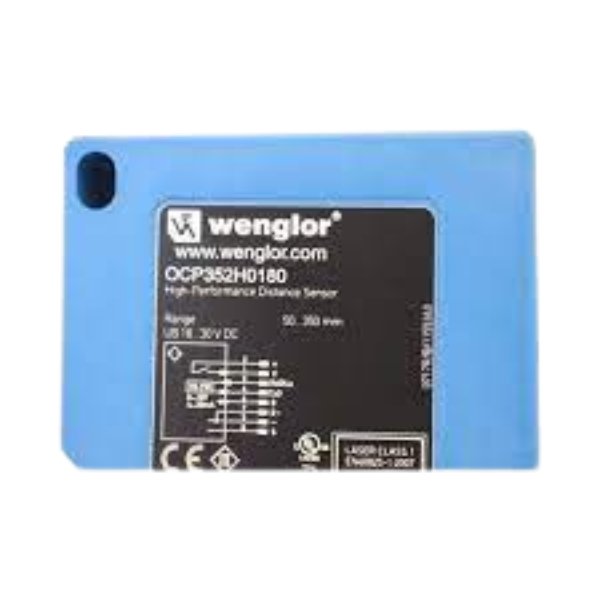

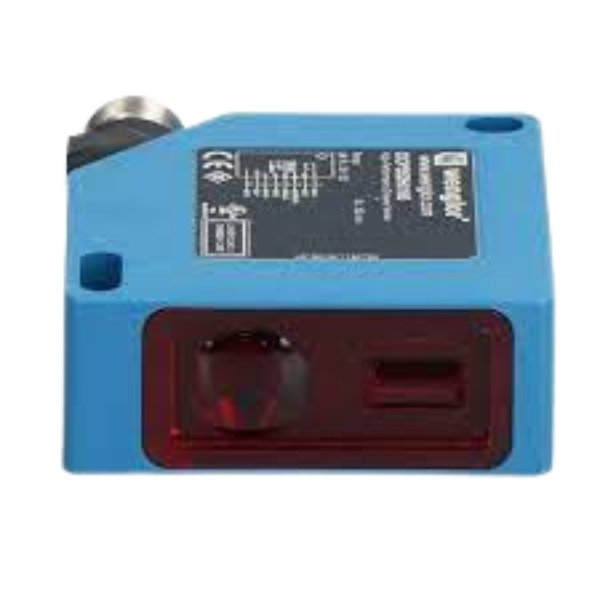

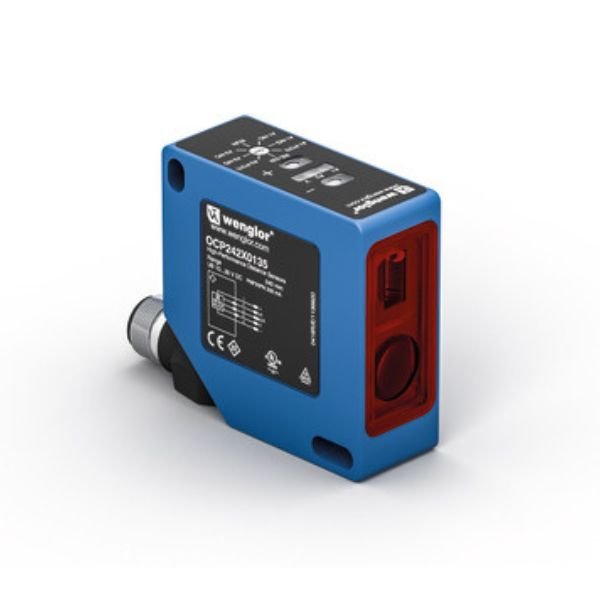

Wenglor OCP352H0180 Sensor High Precision

Product Note:

No product notes available.

Description

Wenglor OCP352H0180 Sensor High Precision

Wenglor OCP352H0180 Sensor High Precision works with a high-resolution CMOS line and DSP technology and determines distance using angular measurement. As a result, material, color, and brightness-related measurement differences are virtually eliminated. The integrated analog output can be configured for voltage 0…10 V (10…0 V) or current 4…20 mA (20…4 mA).

Features at a Glance

  • High resolution: 50 µm (resolution mode)
  • Linearity: 0,15 % (resolution mode)
  • Zoom function
  • Measured value independent of material, color, and brightness

Electrical Data
Supply Voltage 18 … 30 V DC
Current Consumption (Ub = 24 V) < 80 mA
Measuring Rate 500 /s
Measuring Rate (Resolution-Mode) 250 /s
Response Time 2,000 µs
Response Time (Resolution Mode) < 4,000 µs
Temperature Drift < 25 µm/K
Temperature Range -25 … 50 °C
Analog Output 0…10 V
Load Current Voltage Output < 1 mA
Current Output Load Resistance < 500 Ohm
Interface RS-232
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 1120723-000

Features

  • High resolution: 50 µm (resolution-mode)
  • Linearity: 0,15 % (resolution-mode)
  • Zoom function
  • Measured value independent of material, color and brightness

Applications

Production Monitoring of Parquet Tongues and Grooves via High-Precision Laser Distance Sensor with Analog Output

When manufacturing parquet flooring with tongues, it is important to ensure that the tongue is securely inserted into the groove in the parquet once pressed in. This is precisely monitored via high-precision laser distance sensors. Ideal for the wood industry: The sensors also work reliably in the event of flying chips and soiling. Since different parquet heights are produced on a single system, the respective distance to the background is detected via an analog output on the sensor. The sensors measure all relevant heights with their analog output: the distance to the conveyor belt, the tongue and groove and the parquet.

High-Precision Laser Distance Sensors

High-precision laser distance sensors work according to the principle of angle measurement, whereby color, shape and object surface do not influence the measurement. Depending on the setting, they can be operated at very high speed or resolution. The measuring range can be selected individually within the sensor’s working range.

Specifications

Optical Data

Working Range50 … 350 mm
Measuring Range300 mm
Resolution50 µm
Resolution (Speed-Mode)80 µm
Linearity0.15 %
Linearity (Speed-Mode)0.2 %
Linearity Deviation450 µm
Light SourceLaser (red)
Wavelength660 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)1
Max. Ambient Light10,000 Lux
Light Spot Diametersee Table 1

Electrical Data

Supply Voltage18 … 30 V DC
Current Consumption (Ub = 24 V)< 80 mA
Measuring Rate500 /s
Measuring Rate (Resolution-Mode)250 /s
Response Time2,000 µs
Response Time (Resolution Mode)< 4,000 µs
Temperature Drift< 25 µm/K
Temperature Range-25 … 50 °C
Analog Output0…10 V
Load Current Voltage Output< 1 mA
Current Output Load Resistance< 500 Ohm
InterfaceRS-232
Baud Rate38,400 Bd
Protection ClassIII
FDA Accession Number1120723-000

Mechanical Data

Setting MethodTeach-In
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 8-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)713.97 a

Output

Error Outputyes
Analog Outputyes
RS-232 Interfaceyes

Adjustable parameters

Analog output0…10 V
4…20 mA
Other parametersScale analog output
Exposure time
Filter
Laser light
Resolution mode
Speed mode

Table 1

Working Distance50 mm350 mm
Spot Size0,4 × 1 mm1,4 × 3,1 mm

Downloads

Datasheet : Wenglor OCP352H0180 Laser Distance Sensor High Precision
