Wenglor OEDK803A0002 Through Beam Sensor

Product Note:

No product notes available.

Description

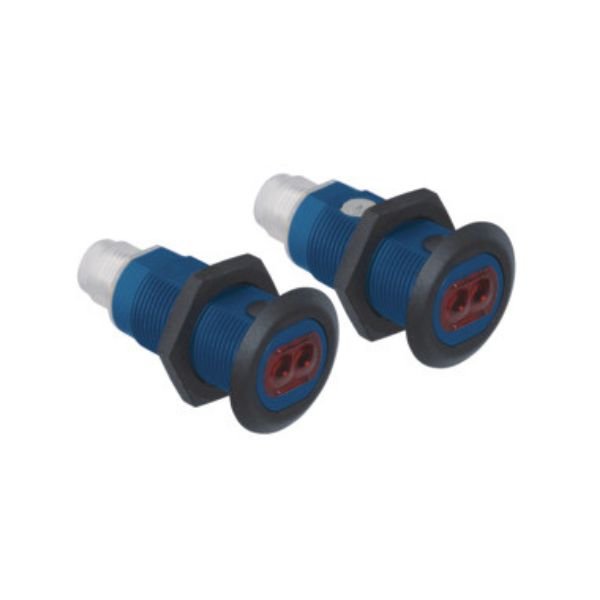

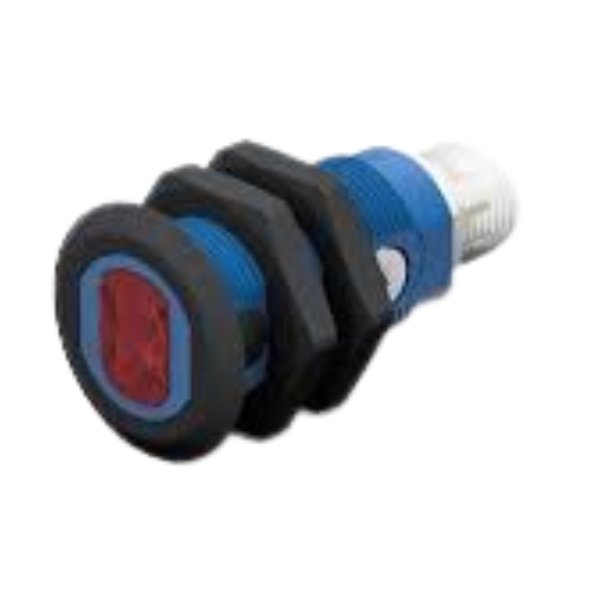

Wenglor OEDK803A0002 Through Beam Sensor

Wenglor OEDK803A0002 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Wenglor OEDK803A0002 Through Beam Sensor Features at a Glance Wenglor OEDK803A0002 Through Beam Sensor

  • Switching distance adjuster
  • Clever inclusive mounting technology
  • Simple installation
  • Large working range
  • Minimal installation space
  • Electrical Data
    Sensor Type Receiver
    Supply Voltage 10 … 30 V DC
    Current Consumption (Ub = 24 V) < 20 mA
    Switching Frequency 600 Hz
    Response Time 833 µs
    Temperature Drift < 10 %
    Temperature Range -25 … 60 °C
    Switching Output Voltage Drop < 2.5 V
    PNP Switching Output/Switching Current 100 mA
    Residual Current Switching Output < 50 µA
    Short Circuit and Overload Protection yes
    Reverse Polarity Protection yes
    Protection Class III

Features

  • Switching distance adjuster
  • Clever inclusive mounting technology
  • Simple installation
  • Large working range
  • Minimal installation space

Applications

B_BED_DK_3.eps
05 = Switching Distance Adjuster
68 = supply voltage indicator
01 = Switching Status Indicator

Specifications

Optical Data

Range8,000 mm
Switching Hysteresis < 15 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle4 °

Electrical Data

Sensor TypeReceiver
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 20 mA
Switching Frequency600 Hz
Response Time833 µs
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current100 mA
Residual Current Switching Output< 50 µA
Short Circuit and Overload Protectionyes
Reverse Polarity Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

General Data

Scope of deliveryMounting Console

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Downloads

Datasheet : Wenglor OEDK803A0002 Through Beam Sensor
