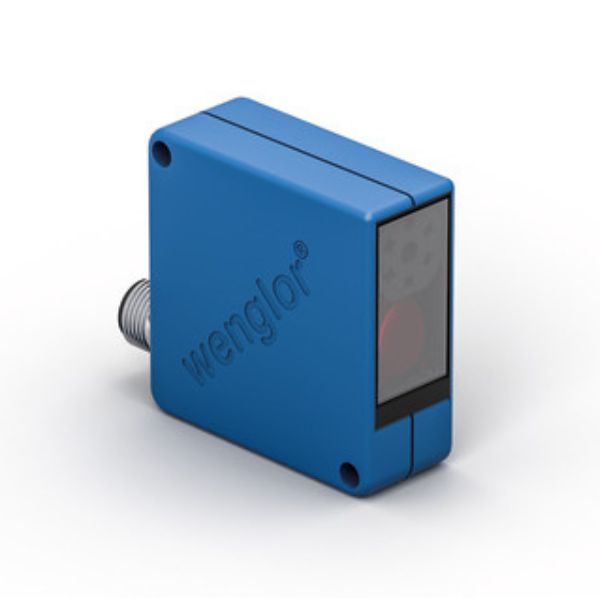

Wenglor OHP551B0003 Sensor High Precision these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.
Features at a Glance
- Smallest recognizable distance difference: 100 µm
- Spot diameter: 0,3 mm
Electrical Data
- Supply Voltage: 10 … 30 V DC
- Current Consumption (Ub = 24 V): < 30 mA
- Switching Frequency: 800 Hz
- Response Time: 650 µs
- Temperature Drift: < 5 µm/K
- Temperature Range: -25 … 60 °C
- Switching Output Voltage Drop: < 2.5 V
- PNP Switching Output/Switching Current: 200 mA
- PNP Contamination Output/Switching Current: 50 mA
- Short Circuit Protection: yes
- Reverse Polarity Protection: yes
- Overload Protection: yes
- Protection Class: III
- FDA Accession Number: 1120738-000
- Smallest recognizable distance difference: 100 µm
- Spot diameter: 0,3 mm
- Switching Hysteresis: < 100 µm
- Light Source: Laser (red)
- Wavelength: 660 nm
