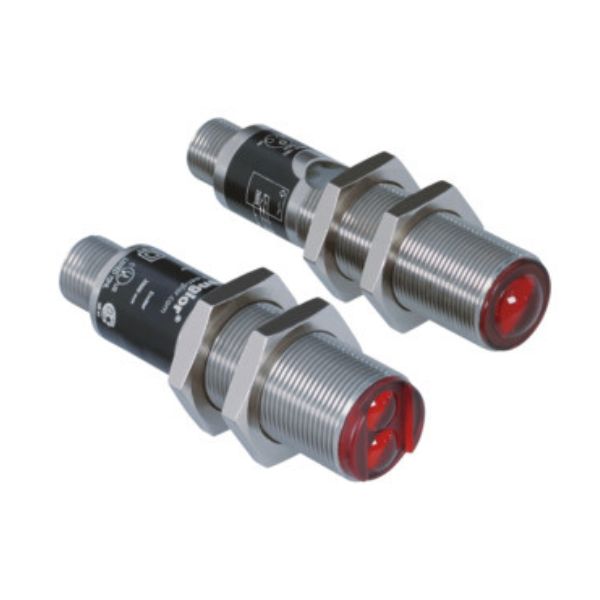

Wenglor OSD124Z0003 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
- Specially coated optics
- Optical Data
- Range 12000 mm
- Light Source Laser (red)
- Wavelength 655 nm
- Service Life (T = +25 °C) 100000 h
- Laser Class (EN 60825-1) 1
- Beam Divergence 10 mrad
- Electrical Data
- Sensor Type Emitter
- Supply Voltage 10…30 V DC
- Current Consumption (Ub = 24 V) < 15 mA
- Temperature Drift < 10 %
- Temperature Range -25…60 °C
- Reverse Polarity Protection yes
- Protection Class III
- FDA Accession Number 1120741-000
- Mechanical Data
- Housing Material Stainless Steel
- Coated Optics yes
- Full Encapsulation yes
- Degree of Protection IP67
- Connection M12 × 1; 4-pin
- Safety-relevant Data
- MTTFd (EN ISO 13849-1) 3715,77 a
- Shipping Weight – 2.5kg
