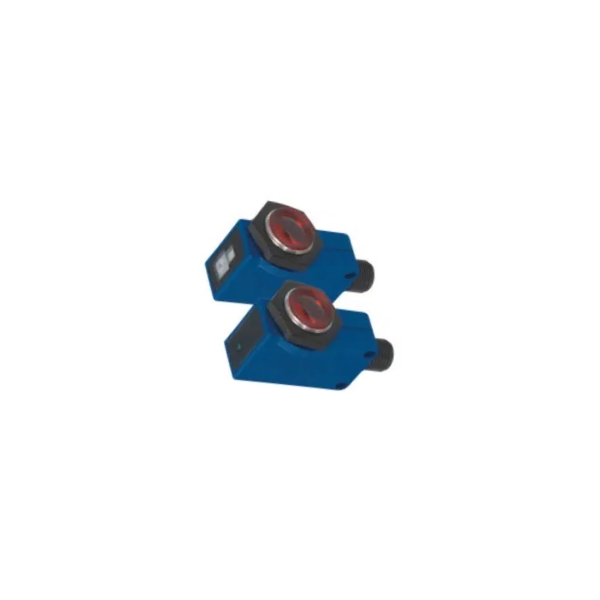

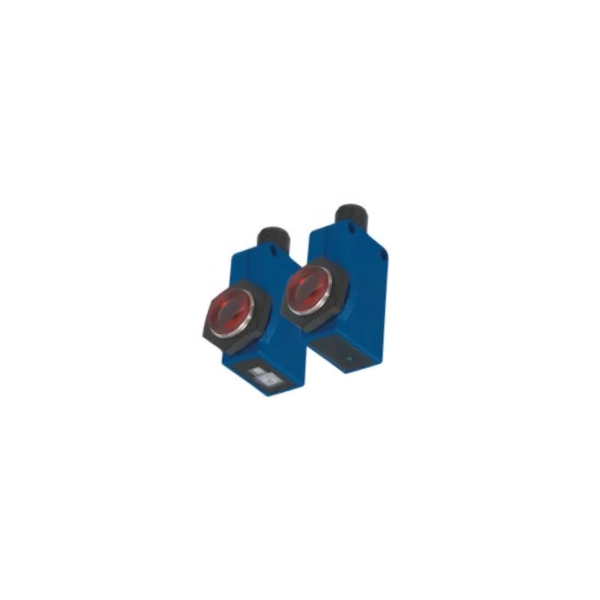

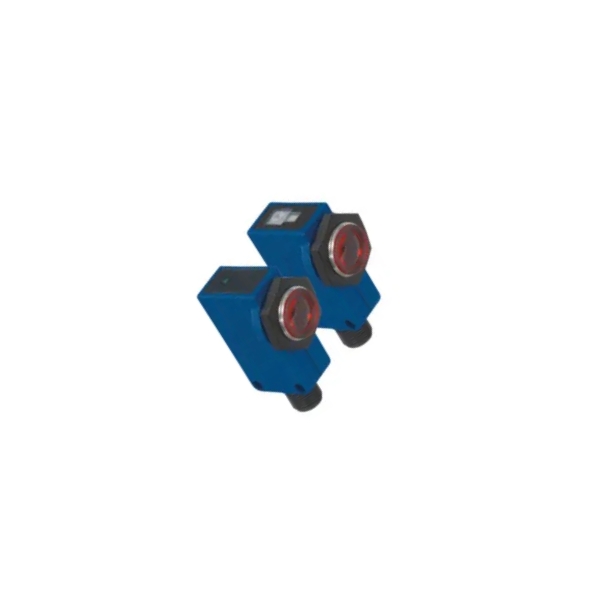

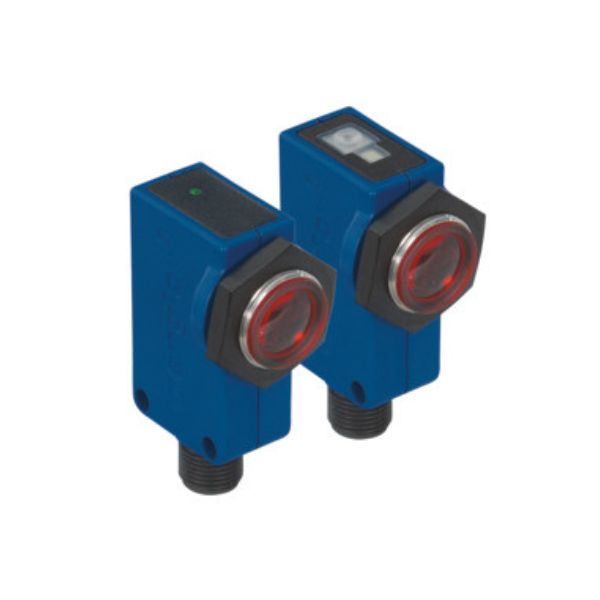

Wenglor OSRS946 Through Beam Sensor

These through-beam sensors distinguish transparent PET from other transparent materials such as glass and opaque objects.

These through-beam sensors distinguish transparent PET from other transparent materials such as glass and opaque objects. They have two switch outputs for representing these two states. The sensor can be tested for its function by means of the test input. Furthermore, several transmitters can be synchronized whereby close sensors do not affect each other. The M18 threaded mounting enables the Sensor to be easily mounted and protected mechanically.

Features

  • Compact housing
  • Red light
  • Test input
  • Simple installation

Applications

04 = Function Indicator

Specifications

Optical Data

Range 300 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 4 °

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Test input yes
Protection Class III

Mechanical Data

Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Downloads

Datasheet : Wenglor OSRS946 Through Beam Sensor for PET Selection
