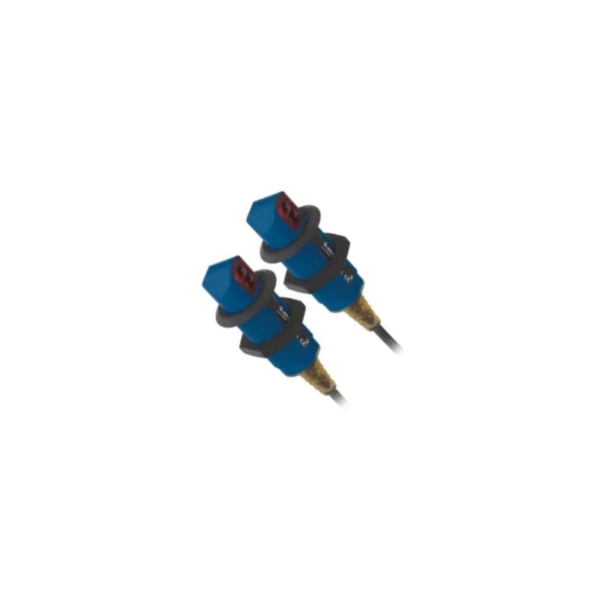

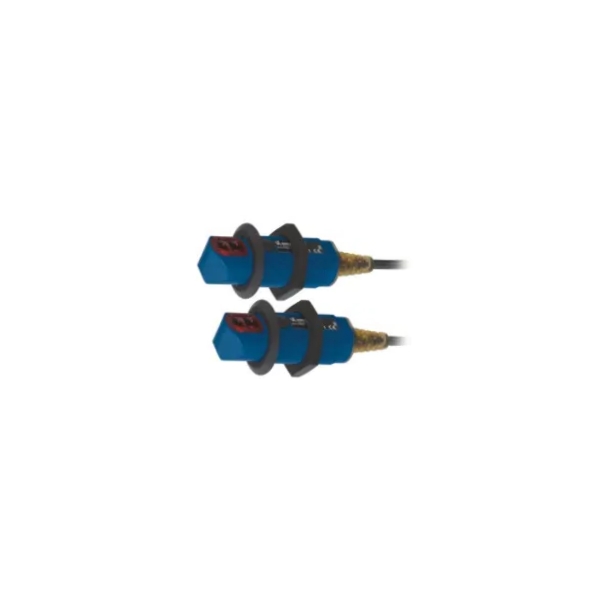

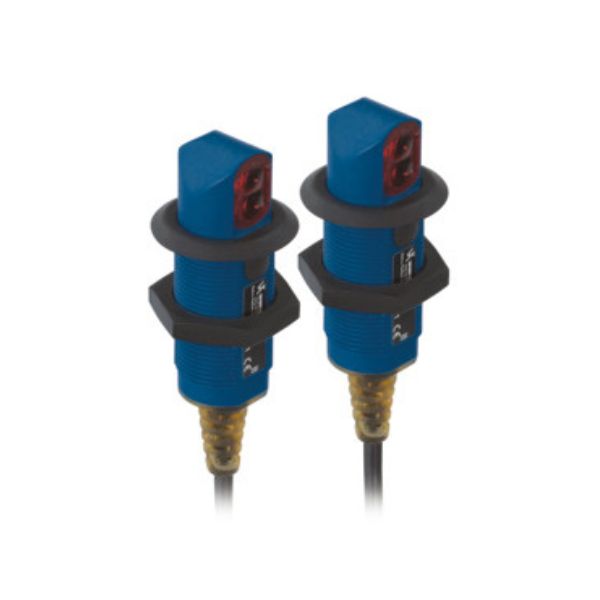

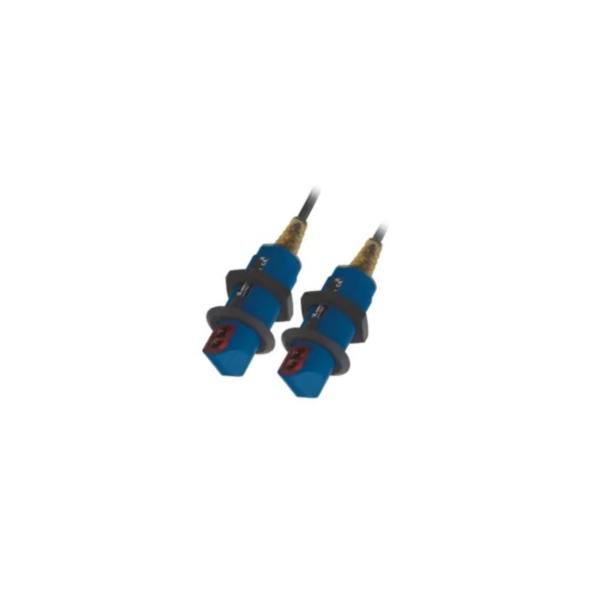

Wenglor OSWK803Z0091 Through Beam Sensor

Wenglor OSWK803Z0091 Through Beam Sensor is best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Wenglor OSWK803Z0091 Through Beam Sensor is best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

  • Clever inclusive mounting technology
  • Large working range
  • Minimal installation space
  • Simple installation
  • Test input

Features at a Glance

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space

Electrical Data

  • Sensor Type: Emitter
  • Supply Voltage: 10 … 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -25 … 60 °C
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Plastic
  • Degree of Protection: IP67
  • Connection: Cable, 3-wire, 2 m
  • General Data
  • Scope of delivery: Mounting Console

Features

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space

Applications

Ctrl. Panel

B_BED_DK_2.eps
04 = Function Indicator
68 = supply voltage indicator

Specifications

Optical Data

Range 8,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 5 °

Mechanical Data

Housing Material Plastic
Degree of Protection IP67
Connection Cable, 3-wire, 2 m

General Data

Scope of delivery Mounting Console

Downloads

Datasheet : Wenglor OSWK803Z0091 Through Beam Sensor
