Wenglor P1NE201 Through Beam Sensor

Product Note:

No product notes available.

Description

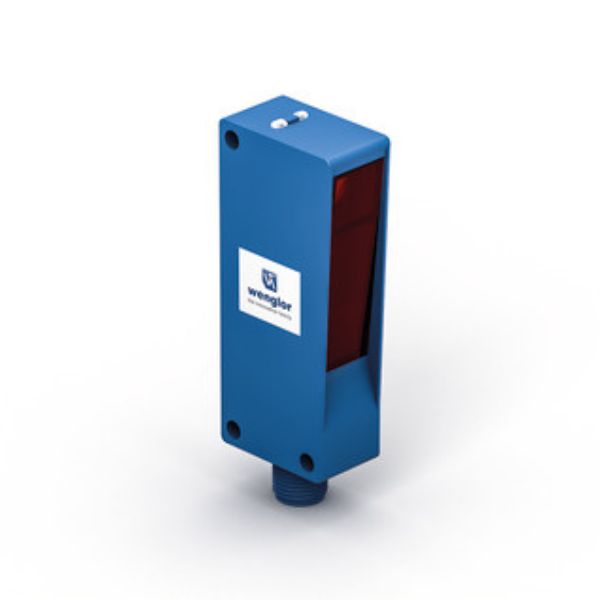

Wenglor P1NE201 Through Beam Sensor

Wenglor P1NE201 Through Beam Sensor works with red light as well as a transmitter and a receiver. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.

Features at a Glance

  • Condition monitoring
  • The high light intensity with a large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Electrical Data

  • Sensor Type: Receiver
  • Supply Voltage: 10 … 30 V DC
  • Supply Voltage with IO-Link: 18 … 30 V DC
  • Current Consumption (Ub = 24 V):  < 30 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response Time: 0.5 ms
  • Response time (interference-free mode): 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -40 … 60 °C
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Applications

Presence Check of Pallets in the Refrigerated High-Bay Warehouse with Through-Beam Sensors

In refrigerated logistics centers, the presence of pallets before and after each transfer position must be known in order to secure material flow between the conveyor line and the high-bay warehouse. Through-beam sensors that function according to the transmitter-receiver principle are attached to the conveyor line for this purpose. While solutions with reflectors do not offer process reliability due to contamination, the through-beam sensors, which can be configured via IO-Link, switch reliably. They do not require a reflector and have a higher power reserve thanks to the through-beam principle – even at temperatures down to –40 °C.

Through-Beam Sensors

Through-beam sensors detect and count small parts, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light or infrared light.

Specifications

Optical Data

Range60,000 mm
Smallest Recognizable Partsee Table 1
Switching Hysteresis10 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM12 × 1; 4-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)1,790.32 a

Output

PNP NO/NC antivalentyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitInactive
Error output
NC
NC+NO
NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point

Table 1

Distance transmitter/receiver12 m30 m60 m
Smallest Recognizable Part6 mm2 mm1,5 mm

Downloads

Datasheet : Wenglor P1NE201 Through Beam Sensor
