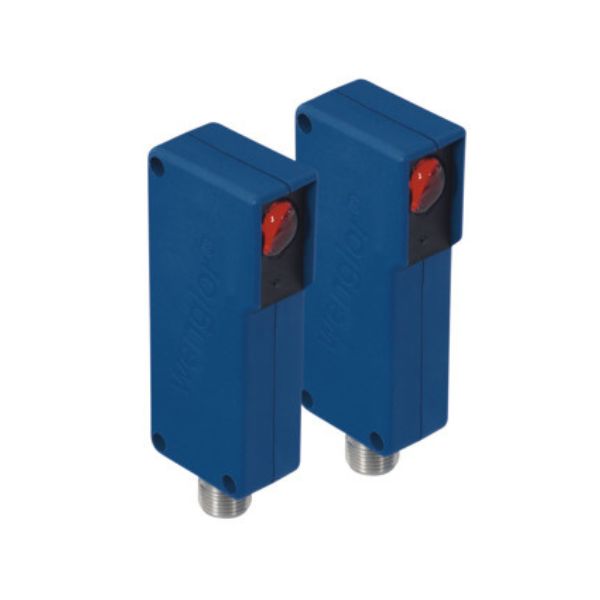

Wenglor SN2003 Through Beam Sensor

These through-beam sensors are best suited for use in industrial environments.

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features

  • Glass lenses
  • Test input

Applications

Ctrl. Panel

B_BED_K_03.epsB_BED_K_03.eps
04 = Function Indicator

Specifications

Optical Data

Range 20,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 4 °

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Protection Class III

Mechanical Data

Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Downloads

Datasheet : Wenglor SN2003 Through Beam Sensor
