Wenglor YP06MGVL80 Laser Distance Sensor High Precision

Product Note:

No product notes available.

Description

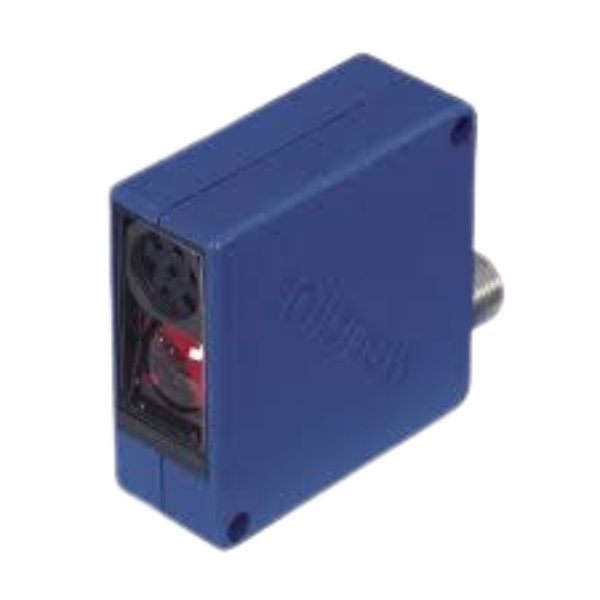

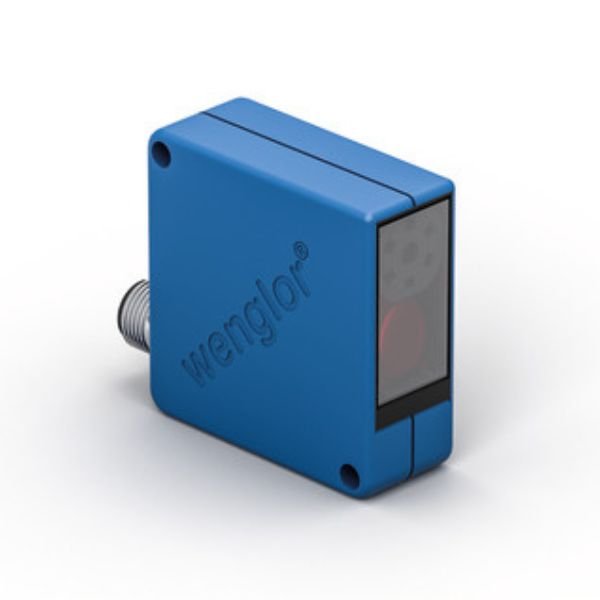

Wenglor YP06MGVL80 Laser Distance Sensor High Precision

Wenglor YP06MGVL80 Laser Distance Sensor High Precision can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object‘s color.

Optical Data:

  • Working Range 40 … 60 mm
  • Measuring Distance 50 mm
  • Measuring Range 20 mm
  • Resolution 10 µm
  • Linearity 0.5 %
  • Linearity Deviation 50 µm
  • Light Source Laser (red)
  • Wavelength 655 nm
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Light Spot Diameter 0.5 mm

Electrical Data:

  • Supply Voltage 18 … 30 V DC
  • Current Consumption (Ub = 24 V) < 30 mA
  • Cut-Off Frequency 100 Hz
  • Response Time 5 ms
  • Temperature Drift (Tu < 10 °C, Tu > 40 °C) 10 µm/K
  • Temperature Drift (10 °C < Tu < 40 °C) 7 µm/K
  • Temperature Range -10 … 60 °C
  • Error Output Voltage Drop < 2.5 V
  • PNP Error Output/Switching Current 200 mA
  • Analog Output 0…10 V
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

Mechanical Data:

  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 8-pin

Output:

  • Error Output yes
  • Analog Output yes

Features

  • Resolution up to 5 µm
  • Linearity: 0,5 %
  • Measuring range: 20 mm

Applications

B_BED_P_03.eps
03 = Error Indicator
12 = Analog Output Indicator

Specifications

Optical Data

Working Range40 … 60 mm
Measuring Distance50 mm
Measuring Range20 mm
Resolution10 µm
Linearity0.5 %
Linearity Deviation50 µm
Light SourceLaser (red)
Wavelength655 nm
Service Life (T = +25 °C)100,000 h
Laser Class (EN 60825-1)2
Max. Ambient Light10,000 Lux
Light Spot Diameter0.5 mm

Electrical Data

Supply Voltage18 … 30 V DC
Current Consumption (Ub = 24 V)< 30 mA
Cut-Off Frequency100 Hz
Response Time5 ms
Temperature Drift (Tu < 10 °C, Tu > 40 °C)10 µm/K
Temperature Drift (10 °C < Tu < 40 °C)7 µm/K
Temperature Range-10 … 60 °C
Error Output Voltage Drop< 2.5 V
PNP Error Output/Switching Current200 mA
Analog Output0…10 V
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

Mechanical Data

Housing MaterialPlastic
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 8-pin

Output

Error Outputyes
Analog Outputyes

Downloads

Datasheet : Wenglor YP06MGVL80 Laser Distance Sensor High Precision
