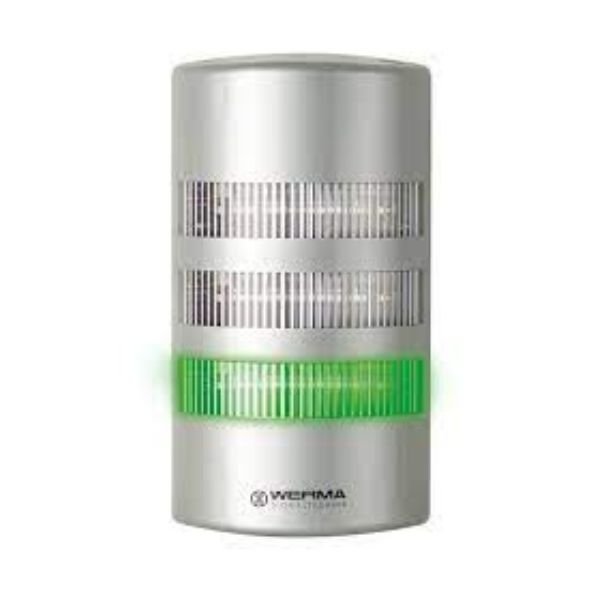

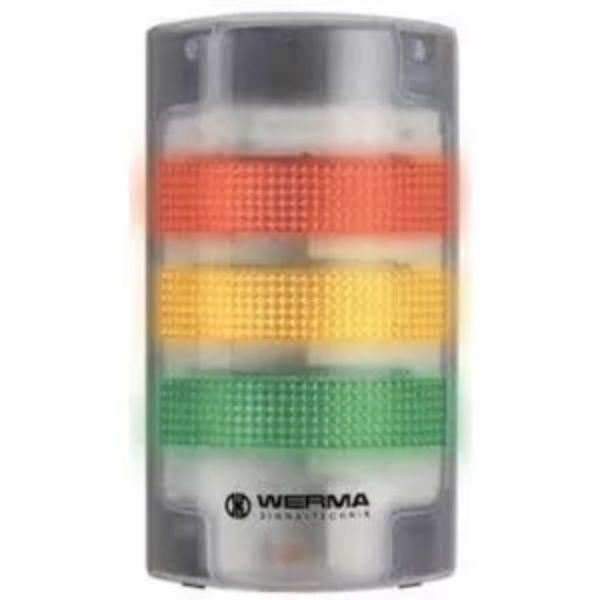

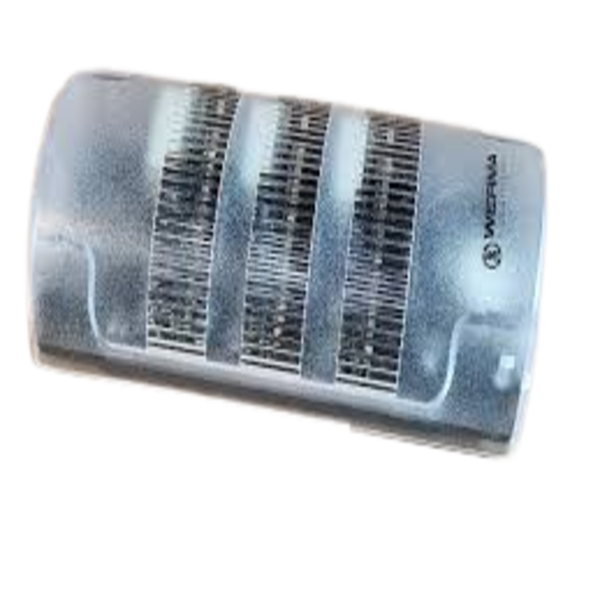

The curved front of the flatSIGN signal tower enables it to blend in uniformly with machine and building service applications. The 160-degree visibility angle ensures exceptional visibility even from the side.
Fault signalling or Access control

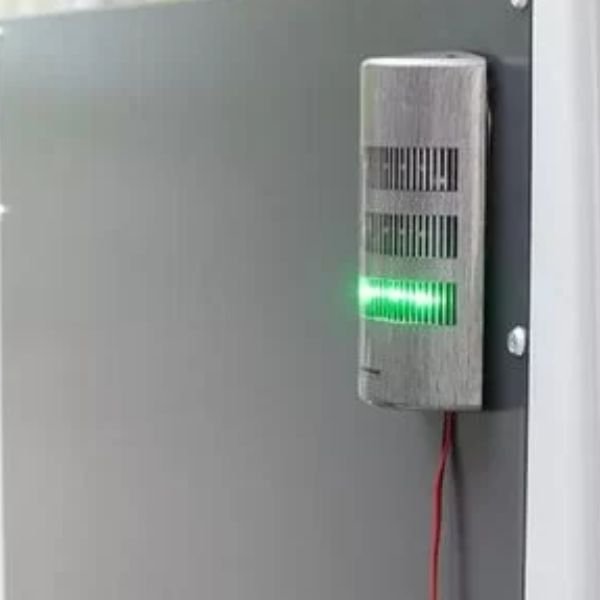

Installation options
Dimensions ( LxHxW) : 105 x 195 x 45mm
Lower part : PC-ABS, black
Upper part : PC, transparent or silver
Cable entry : Cable diameter max. 11mm
Connection : Screw terminal max. 1.5mm
Light effects: Permanent or blinking light selectable
Audible signal: Buzzer or multi-tone sounder (8 tones)
Sound output : Max 80dB (A)
Colors : Green, Yellow, Red
Voltage Multi-tone Sounder : 24 V DC
Voltage Buzzer (continuous tone) : 115 – 230 V AC
Current consumption :
Datasheet: Werma – flatSIGN
