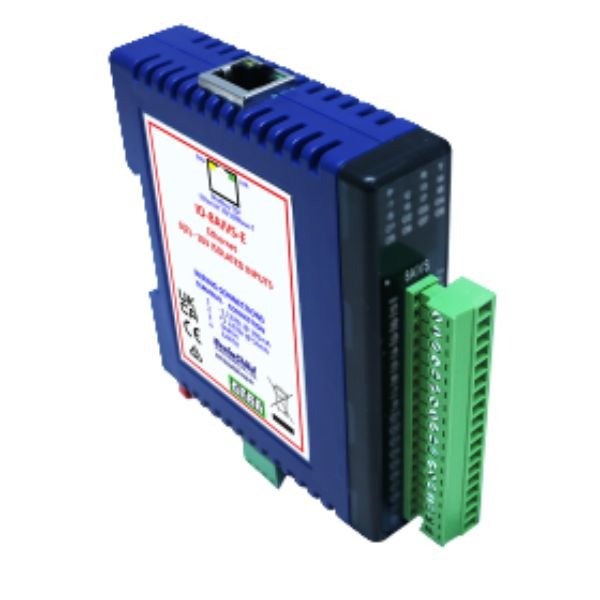

Brainchild IO-8AIVS-E Ethernet Modbus IO Module

Brainchild IO-8AIVS-E Ethernet Modbus IO Module This Remote IO module is based on Ethernet Modbus TCP communication for Data Acquisition and Control Systems.
These IO Modules offer good reliability, ease of installation, and easy Maintenance. Extremely cost-effective modules for industrial measurement and monitoring applications. They can be easily added to the existing RS485 or Ethernet Modbus network.

Different types of IO Modules are available for the users to select as per their requirements.

All Modules are having LED indications for monitoring the status of digital inputs & outputs and fault diagnostics. Special modules are available with interchannel isolation between channels.

Modbus TCP modules have an Ethernet interface with Modbus TCP protocol.

Features

Modbus TCP Modules for Data Acquisition and Control Systems
Extremely cost-effective modules for industrial measurement and monitoring applications
A wide range of modules for various digital and analog inputs and outputs
Wide range of baud rates available in Modbus RTU modules
Built-in web server in Modbus TCP modules for Monitoring real-time data and configuration
Isolated modules available for special application
User-friendly Setup software for Configuration and Troubleshooting
Optional Data acquisition software for data acquisition and analysis on PC
Interface with field devices to provide real-time data for SCADA/PLC/HMI
Integration with the 3rd party software via Modbus TCP Protocol
Front panel status LEDs on every module for digital IO status, communication, and power supply

Applications

Printed circuit board

Food and Pharmaceutical

Plastic injection molding

Textile industry

Laboratory

Specifications

General Specification
Parameters		Modbus TCP IO Modules
Interface		Ethernet Modbus TCP
Communication Speed		10/ 100 MBPS
Operating Temperature		-10℃ to 50℃
Storage Temperature		-40℃ to 85℃
Humidity		Up to 95% Non-condensing
Mounting		DIN Rail
Weight		105 grams
Dimensions( WHD)		2310998 mm
Approval Standard	Safety	IEC950
Connectors	EMC	IEC 61000-4-2-A1 Level2, IEC 61000-4-3-A1 Level2, IEC 61000-4-4 Level3, CISPR 11:1997-A1, EN55011:1998 Group1 Class A
	Input	18 Way screw connector on front
	Communication	RJ45 on topside of the unit
	Logic Power	4 Pin Connector on bottom side of unit

IO-8DIO-E
Type of Module		Digital Input/Digital Output
No. of Channels		8 Digital Inputs / 8 Digital Outputs
Power Supply	Logic Supply Voltage	12 to 24 VDC
	Logic Supply Current	75mA @ 12 V / 39mA @ 24V
	Field Supply Voltage	12 to 24 VDC
	Field Supply Current	6mA@12V / 6mA @ 24V
No. of Digital Inputs		8
Input Voltage Range		12 to 24 VDC
Input Current Per Input		5mA@ 12 VDC / 11mA@24VDC
Input Impedance		220Ω
Counters (Filter Disabled)	Inputs	1 to 8
	Resolution	32 Bits
	Frequency	1 KHZ (Max)
	Pulse Width	500μs (min)
	Retentive Counter	No
Output Type		Open Collector Transistor
No. of Outputs		8
Output Specification		SinK (NPN)
Output Voltage		36V DC (Max)
Vceon		1.1V (Max)
Load Current		100mA per Output
Isolation between Field and Logic		1500 VRMS
