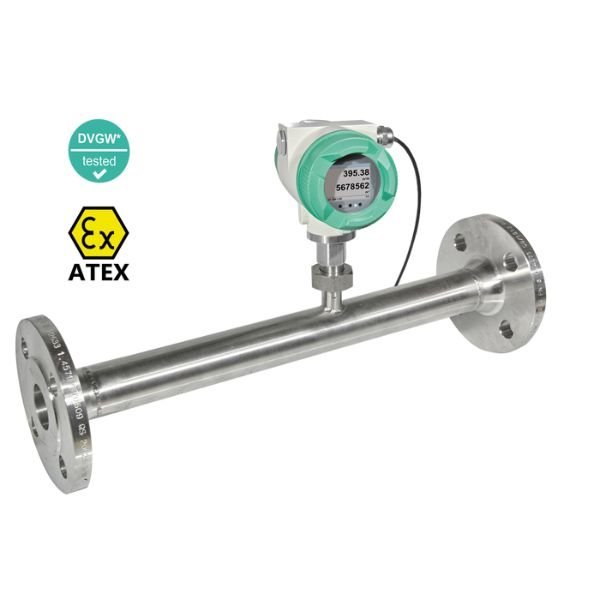

CS Instruments VA 570 – Thermal Mass Flow Meter is a flow meter with an integrated measuring section for compressed air and other gases. Measure and reduce your energy costs and increase your sustainability with the VA 570 flow meter. Monitor your consumption and analyze your leakage rate with a stationary flow meter in distribution stations, in front of individual departments, or for billing purposes of individual consumers. VA 570 is supplied with an integrated measuring section. The measuring sections are available in a flanged version or with R resp. NPT thread.

CS Instruments VA 570 – Thermal Mass Flow Meter

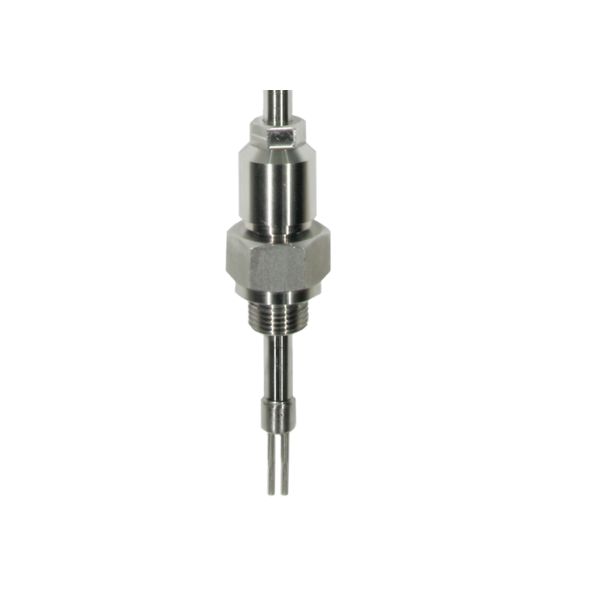

A special feature is the removable measuring head. So the measuring unit can be removed easily and quickly for calibration or cleaning
purposes without having to dismount the measuring section intricately. During this period the measuring section is sealed by a closing
cap (accessory). The screwing with a centering device is designed such that the sensor is positioned accurately in the center when screwing it into the measuring section; furthermore, it enables an exact positioning in the flow direction. This eliminates unnecessary measuring faults.

Features

Measurement of mass flow, direct output of standard volume flow, without additional measurement of pressure and temperature, possible
All wetted parts of the VA 570 are made of stainless steel, especially for applications with high demands on cleanliness and surface quality
The robust aluminum housing is ideally suited for harsh industrial conditions as well as for outdoor installations
No moving parts, therefore low maintenance
Vanishingly low pressure loss due to vanishingly low blockage of the diameter
ATEX or DVGW certification available, thus recommended for gases such as natural gas, hydrogen, biogas, etc.
Highly accurate at small as well as large flow rates
Pressure and temperature compensated by the thermal mass flow principle
Easy installation and removal of the sensor from the measuring section, the measuring section can remain in the line for cleaning or recalibration of the sensor and can simply be closed with a sealing cap

Applications

Underwater Noise Protection / Bubble Curtain
Efficiency-FAD analysis for compressors
Flow meters for professionals – optionally with ATEX approval
Flow meters for oxidizing gases
Consumption sensors and flow meters for inert gases
Flow meters for toxic and corrosive gases
Consumption meter for oxygen, hydrogen, carbon dioxide
Consumption meter for nitrogen in tire vulcanization
Consumption meter for gas measurement in the aerospace industry
Flow and consumption meter for gas measurement in the automotive industry
Consumption meter for gas measurement in metal processing
Consumption sensor for flow measurement of oxygen
Consumption meter for argon and nitrogen in chemistry
Nitrogen consumption measurement in the food industry
Inline consumption meter for nitrogen generators
Flow measurement in gas mixtures as source gas
Food gas measurement
Measurement of the flow rate in a compressed air production line in the cosmetics sector

Specifications

For velocities up to 224 Nm/s
Temperature range up to a maximum of 180°C
Maximum pressure 16 bar, up to 40 bar in PN 40 special version
Can be used from DN15 to DN 80
Highly accurate with a precision of ±1.5% or ±1% of the measured value, as well as ±0.3% of the full scale
04…20 mA, pulse and one Modbus RTU (RS 485) interface as standard, optional interfaces like two galvanically isolated analog outputs (04…20 mA), Modbus TCP (Ethernet), PoE, M-Bus
Pressure range up to 40 bar
IP 67
Integrated display for showing the measured values
Settings can be changed via the keys on the display
Total counter reading can be reset via the display
