Fluidwell C401 Hydrogen Dispenser

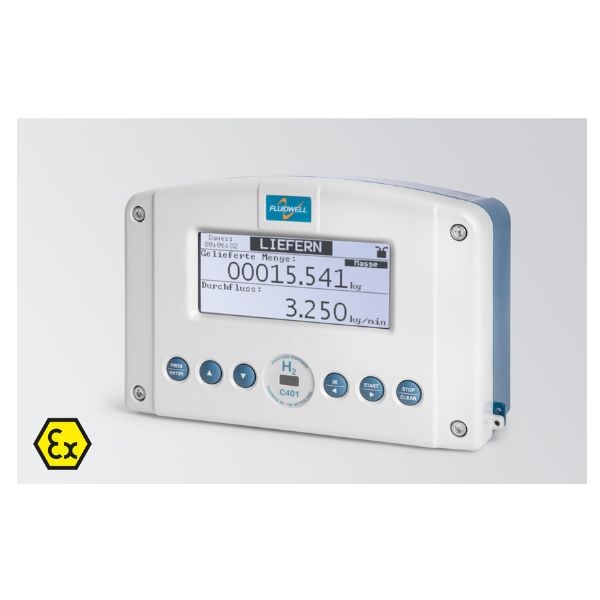

Fluidwell C401 Hydrogen Dispenser The next level in flow computing: powerful, field mounted, weights and measures approved and suitable for use in hazardous atmospheres.

The design of the C401 is a logical next step, based on our successful product lines for harsh surroundings and explosive atmospheres. The C-series is designed with a focus on high-quality and reliability for use in metrological / custody transfer applications. The C401 is a Hydrogen dispenser in conjunction with Coriolis mass flow meters.

Core Operational Functions

High-Pressure Mass Measurement: Accepts high-frequency pulse inputs from Coriolis mass flow meters (e.g., Micro Motion, Endress+Hauser) and calculates exact hydrogen mass transferred in Kilograms ( $\text{kg}$ ) or Pounds ( $\text{lb}$ ).
Target Pressure Ramping (SAE J2601 Compliance): Controls proportional valves or multi-bank sequencing manifolds to manage pressure ramp rates and target pressure thresholds (such as $350\text{ bar} / \text{H35}$ and $700\text{ bar} / \text{H70}$ refueling profiles).
Multi-Bank Storage Sequencing: Manages automatic switching between low, medium, and high-pressure cascade storage banks during vehicle fill cycles to optimize compressor utilization and fill speeds.

Specifications

Signal Inputs

Flowmeter Inputs

Coriolis Mass Flowmeter Input:
RS485: Modbus ASCII / RTU

Signal Outputs

Pulse outputs

None

Alarm outputs

None

Analog outputs

None

Control outputs

None

Supply

Power Supply

16 – 27V DC.

Hazardous Area

Non-Sparking, Zone 2

ATEX:
Gas: II 3 G Ex ec IIC T4 Gc

Communication

Port 2:Function: All Metrologically relevant data.Protocol:Interface: RS232 / RS485 2-wire or 4-wire.
Port 3:Function: Metrologically Print receipt.Protocol:Interface: RS232

Features

Metrology approved system by PTB, according to MID MI002 / OIML R137.
Zone 2 ATEX certification according to: EX II 3 G Ex ec IIC T4 Gc.

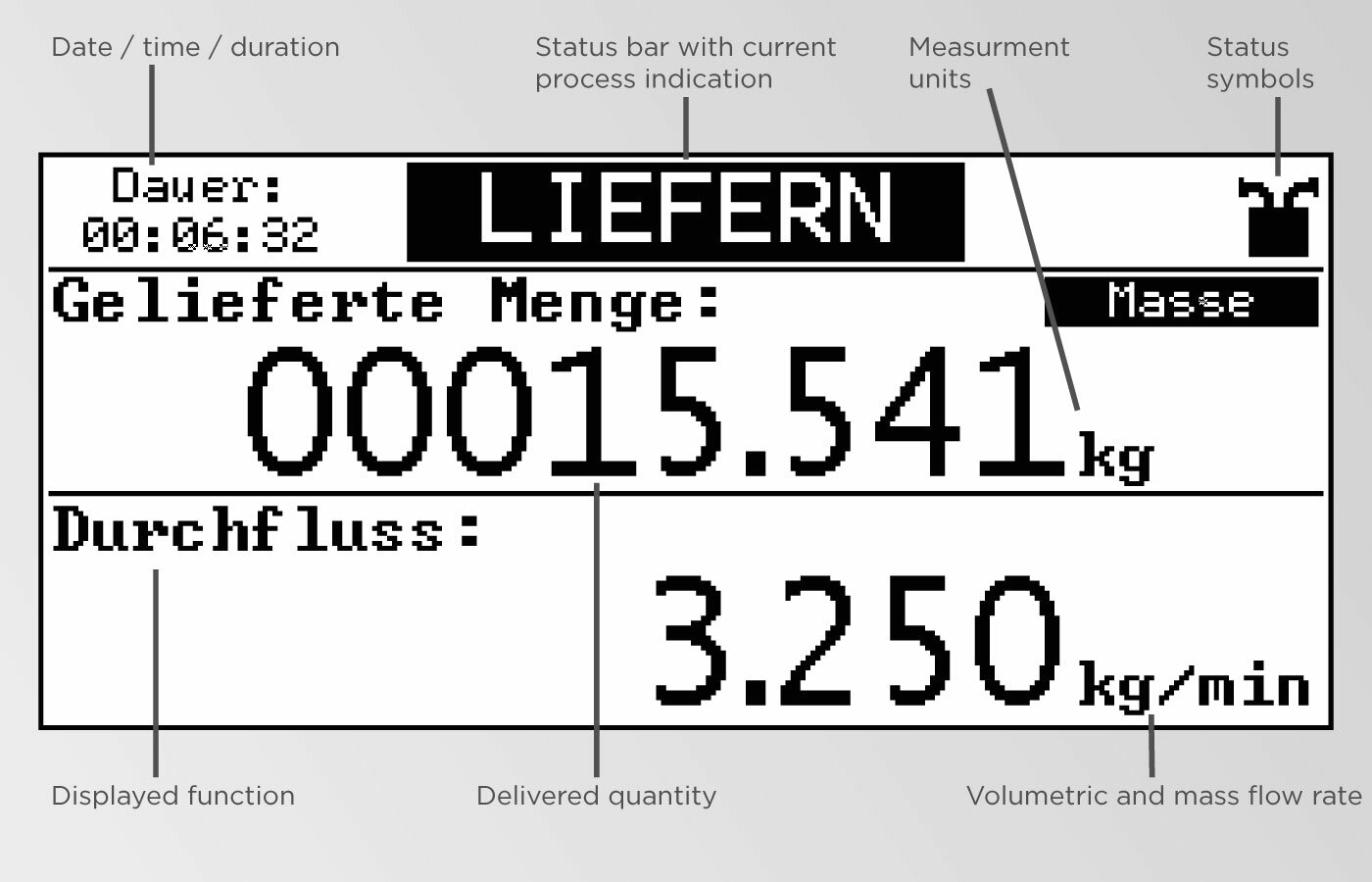

Displays current volumetric and mass flow rate, deliverd total, time/date, status indication, engineering and time units.
Low flow rate and cut-off limit alarms with adjustable hysteresis. hysteresis.
Application driven design for truck dispense of Hydrogen (GH2+).
Dedicated communication port for Coriolis mass flow meter.
Communication port for data transfer to industrial Open Platform Communications (OPC).
Communication port for direct ticket printing.
Full integration and control of the Coriolis mass flow meter.
Extensive logging of process data, events and error handling.
Large graphical user interface with large digits.
Bright backlight for good readability during day and night.
Multiple languages supported.
Ambient temperature: -25°C to +55°C (-13°F to 133°F).
For further details or new opportunities, please contact us: +31 413 343786 or click here.

Applications

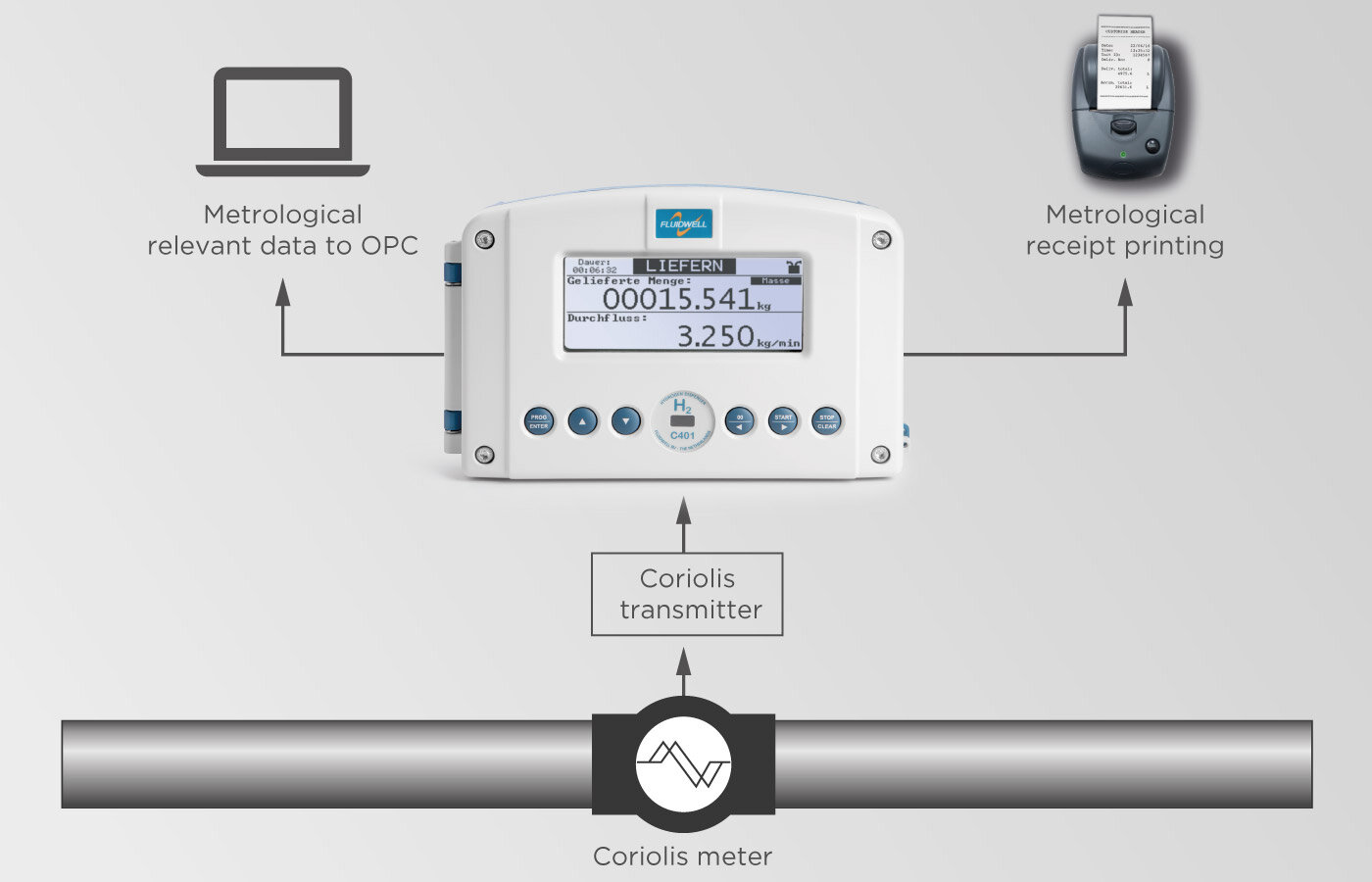

Hydrogen distribution on board of trucks or marine bunkering. For accurately register metrologically the dispensed amount of Hydrogen.
For loading and unloading Hydrogen trucks, trains and other carriers.
The (re)calibration of Hydrogen Refilling Station (HRS).
