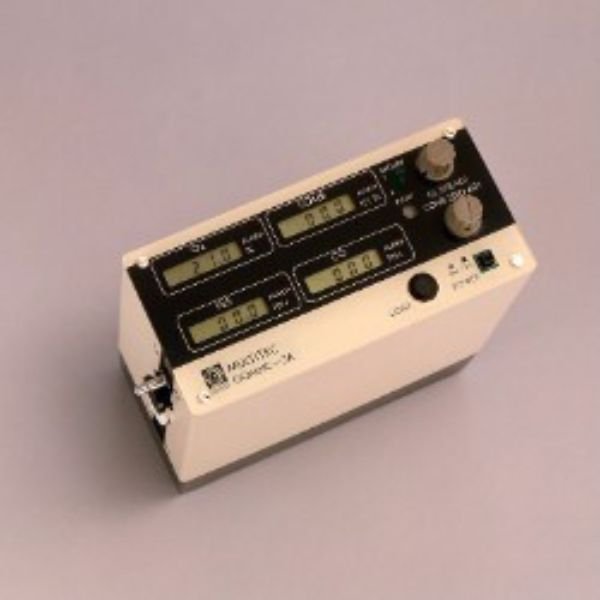

Gastec GOMHC-3A Multiple Gas Detector

Gastec GOMHC-3A Multiple Gas Detector one unit performs four roles, realizing highly efficient and safe control at the same time.

Gastec GOMHC-3A Multiple Gas Detector

Gastec GOMHC-3A Multiple Gas Detector one unit performs four roles, realizing highly efficient and safe control at the same time.

Can simultaneously measure four gases: oxygen, a flammable gas, carbon monoxide, and hydrogen sulphide.

GASTEC Detector Tubes indicate concentrations directly by way of a calibrated scale printed on the tubes. At GASTEC, we endeavour to achieve highest quality detector tubes for analysing airborne gases/vapours, as well as pollutants in soil and water through our advanced state-of-the-art research and development. Through our efforts we have acquired a solid reputation among our customers in virtually all sectors of industry, commerce and society. Tubes are now available for more than 500 different applications.

Features

  • Simultaneous measurement of oxygen, flammable gases (non-methane), hydrogen sulphide and carbon monoxide
  • Small / compact and lightweight
  • Low power consumption design
  • With Light & flow rate check function

Applications

  •  four gases: oxygen, a flammable gas, carbon monoxide, and hydrogen sulphide.

Specifications

Target Gas Oxygen Combustible Gas Hydrogen Sulphide Carbon Monoxide
Measurement range 0 – 25 % 0 – 100 %LEL 0 – 30 ppm 0 – 300 ppm
Measurement principle Galvanic cell method Combustion contact method Controlled potential electrolysis
Sampling method Diaphragm pump
Display Digital LCD (backlit)
Indicating accuracy +/- 0.5% 5% of full scale
Alarm threshold <18 % >20 %LEL >10 ppm >50 ppm
Alarm signal Short, intermittent sound and blinking alarm light
Operating Temperaturel -10 – 40℃
Power source Four size C dry cell batteries for approx. 4 hours of operation
(without alarm signal being emitted)
Dimensions 150(W) x 70(D) x 170(H) mm
Weight 1.2kg

Downloads

Datasheet : Gastec GOMHC-3A Multiple Gas Detector
