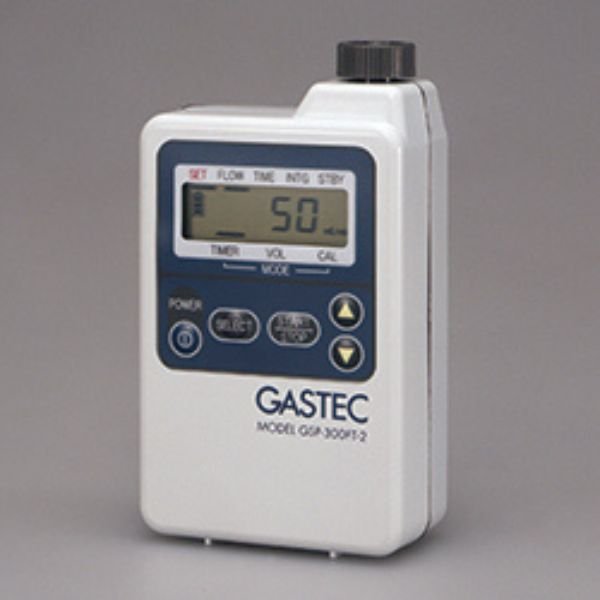

Gastec GSP-300FT-2 Automatic Air Sampling Pump

The Model GSP-300FT-2 has been designed small and compact air sampling pump available with an integrated flowmetre for Hand-held, Personal or site sampling.

The Model GSP-300FT-2 has been designed small and compact air sampling pump available with an integrated flowmetre for Hand-held, Personal or site sampling.

Features

  • Flow volume of 50-250mL/min can be set for the inserted detector tube
  • The fixed flow function automatically regulates load changes
  • Real-time flow volume and integrated flow volume are automatically corrected to the values for 20ºC(68ºF)
  • Automatic start enables sampling to begin after a preset time
  • Automatic stop at preset time/volume, with total flow and transpired time calculations
  • Ventilation system configured for uninterrupted sampling
  • Compact and lightweight; 10 hrs. continuous operation on 2 AA batteries
  • Specially-suited detector tubes for continuous workplace sampling (10 min.)
  • Activated carbon and other solid-collecting detector tubes can be utilised

Applications

  • Break tips off the detector tube using the tube tip holder.
  • Insert the detector tube to the inlet of the rubber tube holder. Put the power switch to ON. Adjust the flow rate, confirm that the timer of the air sampling pump is set, then push the start button.
  • After sampling, remove the detector tube from the rubber tube holder and read the concentration of the tube.

Specifications

Spot Flow Rate & Measuring Range:0-250mL/min
Operating Mode:Timer mode/Constant volume mode
Dimension&weight:80(W) x 40(D)x 140(H)mm/300g(with batteries)
