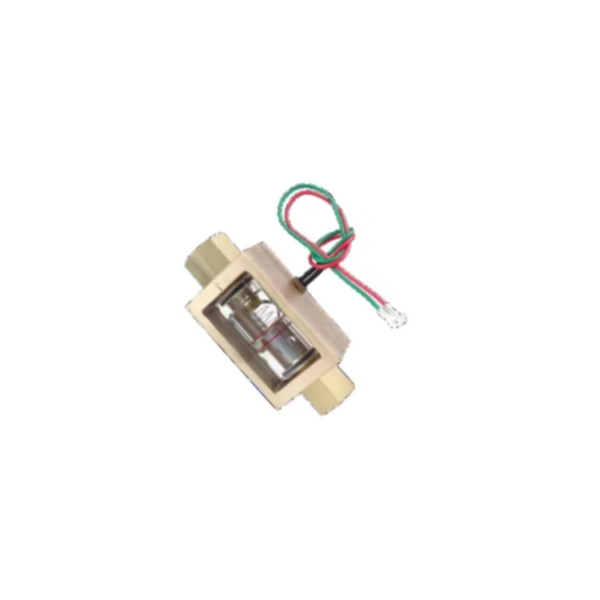

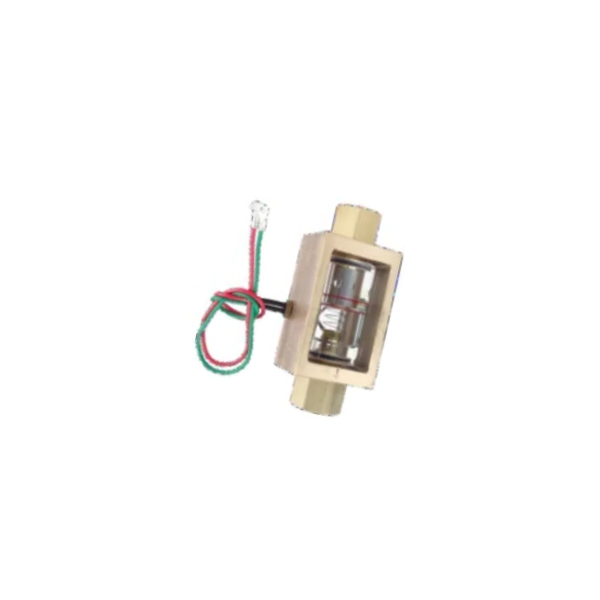

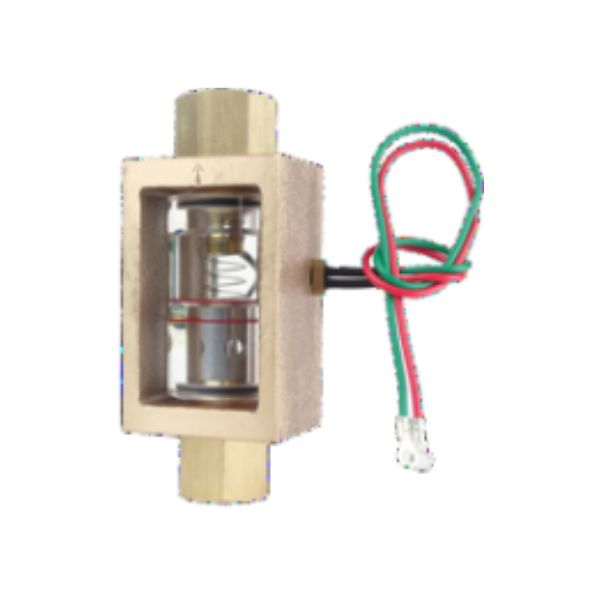

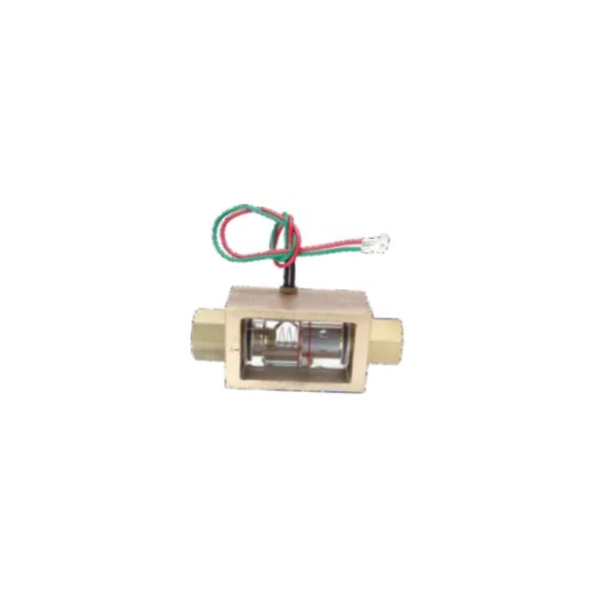

Maeda Koki MKCM type OIL SIGNAL- Flow Indicator

Maeda Koki MKCM it is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction, detect fluid flow and let it is ON, or a switch be off with the flow quantity of the designation.

Maeda Koki MKCM it is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction, detect fluid flow and let it is ON, or a switch be off with the flow quantity of the designation.  It is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction.

By a metal protective cover possibility of damage by shocks from the outside, The posture when I attach it as I use a spring inside look up and look down and can perform sideways-facing freely.

Features

  • A switch is with flow quantity
    It detect fluid flow and let it is ON, or a switch be off with the flow quantity of the designation
    ※The switch is rigid (the setpoint change from a trace is not possible)
  • It can see a flow at first sight
    It is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction
  • With protective cover
    By a metal protective cover possibility of the damage by shocks from the outside
    I reduce it.
  • The installation direction does not matter
    The posture when I attach it as I use a spring inside
    I look up and look down and can perform sideways-facing freely.

Applications

MKCM oil signal is a flow indicator, flow switch, and flow control depending on the type. Flow Switch with the point of contact function. It is equipped with a protective cover superior in reliable durability in a severe environment. It is low-priced with a simple structure. A simple flow Switch.

Specifications

Standard specifications

Fluid Oil
Operation flow quantity Please appoint it with the above, a flow quantity level in the designated range of the operation flow quantity.
(please appoint it with a flow quantity level less than 1/3 of the smallest use flow quantity if possible.)
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature A maximum of 60 degrees Celsius I can produce the heat-resistant specifications (a maximum of 100 degrees Celsius), too.
Withstand pressure 1MPa I can produce the withstand pressure specifications (up to 5MPa), too.
The use of maximum voltage DC, AC 300V
Use of maximum electric current DC, AC 0.5A
Point of contact capacity 50VA
Materials
Quality
Transparent pipe Acrylic The heat resistance, withstand pressure specifications product becomes brass pipe (C3604).
The heat resistance, withstand pressure specifications product cannot see the float.
Protective cover BC (gunmetal) I can produce the product made in aluminum, too.
Coupling C3604 (brass) I can produce the product made in SUS, too.
Spring SUS304
Float with magnet Aluminum
O ring Nitrile rubber Heat resistance, the withstand pressure specifications become the fluorine rubber.
Lead switch Marketing product
Lead
(authentic sample 200mm)
Marketing product Designation of the length of the lead,
The change to cab tire cord is possible, too.

List of models

Model  Dimensions (mm) Flow quantity (L/min)
 Connection diameter Full length Overall width Depth The smallest inside diameter
φmm
Designated range of the operation flow quantity Maximum
MKCM20-1TL-OFF  Rc1/8 80 30 22 6.5  0.005 (5cc) – 2 5
MKCM20-1TL-ON
MKCM20-2TL-OFF Rc1/4 80 30 22 6.5  0.005 (5cc) – 2 5
MKCM20-2TL-ON
MKCM20-3TL-OFF Rc3/8 86 30 25 6.5  0.005 (5cc) – 2 5
MKCM20-3TL-ON
MKCM30-2TL-OFF Rc1/4 104 43 32 9.5  0.05 (50cc) – 5 10
MKCM30-2TL-ON
MKCM30-3TL-OFF Rc3/8 104 43 32 9.5  0.05 (50cc) – 5 10
MKCM30-3TL-ON
MKCM30-4TL-OFF Rc1/2 110 43 32 9.5  0.05 (50cc) – 5 10
MKCM30-4TL-ON
MKCM35-4TL-OFF Rc1/2 124 49 44  13.5 1.0-10 25
MKCM35-4TL-ON
MKCM35-6TL-OFF Rc3/4 124 49 44  13.5 1.0-10 25
MKCM35-6TL-ON
MKCM45-6TL-OFF Rc3/4 142 62 50 18.0 3.0-15 50
MKCM45-6TL-ON
MKCM45-8TL-OFF Rc1 142 62 50 18.0 3.0-15 50
MKCM45-8TL-ON

Downloads

Datasheet: Maeda Koki MKCM type OIL SIGNAL- Flow Indicator
