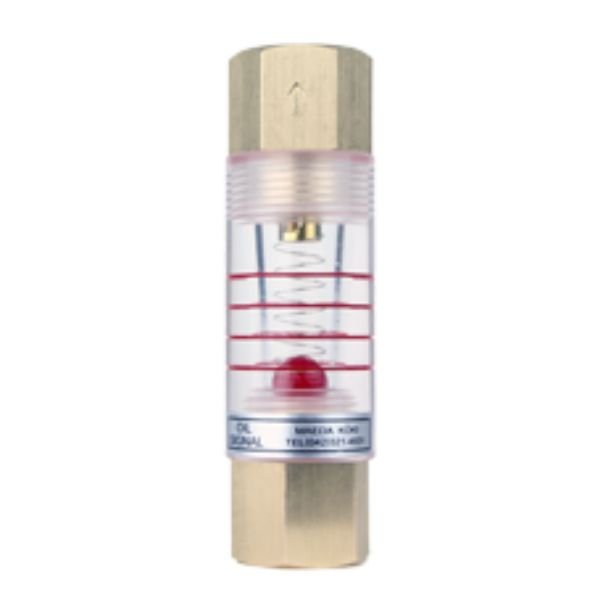

Maeda Koki MKT Oil SIgnal Flow Gauge

Maeda Koki MKT Oil SIgnal Flow Gauge, Since this product is using the tube taper form for a transparent tube, it can be used also as a flow rate viewing type of a short form by seeing the related position of a ball and the indicating red line. Since the spring is being used for this product in a transparent tube, the postures when attaching our freedom, such as facing up, facing down, and sideways.

Maeda Koki MKT Oil SIgnal Flow Gauge

Maeda Koki MKT Oil SIgnal Flow Gauge, Since this product is using the tube taper form for a transparent tube, it can be used also as a flow rate viewing type of a short form by seeing the related position of a ball and the indicating red line. Since the spring is being used for this product in a transparent tube, the postures when attaching our freedom, such as facing up, facing down, and sideways. The heat resistance is 80 ℃. Standard pressure resistance: 1MPa.

Maeda Koki product, galvanometer for detecting the flow of fluid and galvanometers. In the field of distribution units, new products and technology developed and know-how on past experience. We strive for development. At present, the major companies / influential companies. We have been adopted in response to the tremendous thrust from work.

Features

  • It shows flow quantity by viewing Because it use a transparent taper pipe, MKT can confirm approximate flow quantity by looking at a ball (or a float) and the position with the indication red line concerned.
  • The installation direction does not matter Because it use a spring inside, the posture when it attach it looks up and looks down and can perform sideways-facing freely.

Applications

MKT is a flow indicator, flow switch, and flow control depending on the type. It knows the flow quantity of the oil at a glance with a lightweight compact.

Specifications

Standard specifications (protest a form)

Fluid Oil
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass) I can produce the product made in SUS, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.

Standard specifications (for the copper pipe)

Fluid Oil
Connection The reference mentioned above
Heat-resistant temperature A maximum of 80 degrees Celsius
 Withstand pressure 1MPa
Materials Transparent taper pipe Acrylic
Coupling C3604 (brass)
Cap nut C3604 (brass)
 Zipper sleeve Cu
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.



Model Dimensions (mm) Maximum flow quantity
(L/min)
Connection diameter Full length Overall width
Right?
ji
Include
See
Form
MKT25-1TL Rc1/8 78 25 5
MKT25-2TL Rc1/4 78 25 5
MKT25-3TL Rc3/8 84 25 5
MKT30-2TL Rc1/4 104 30 10
MKT30-3TL Rc3/8 104 30 10
MKT30-4TL Rc1/2 110 30 10
Copper
Pipe
Business
MKT25-4 φ 4 96 25 1.5
MKT25-6 φ 6 98 25 3
MKT25-8 φ 8 100 25 5
MKT25-10 φ 10 105 25 5

Downloads

Datasheet: Maeda Koki MKT type OIL SIGNAL-Flow Gauge
