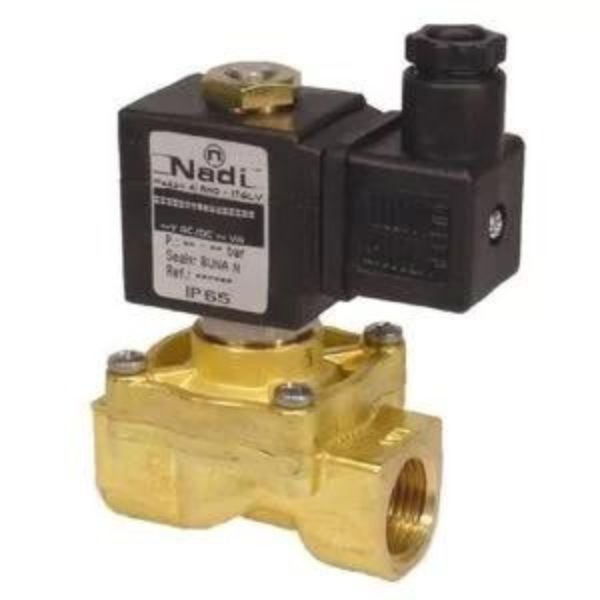

Nadi Series L54 Open Two Way Solenoid Valve

Nadi Series L54 Open Two Way Solenoid Valve: Two-way direct-acting solenoid valve with spring return. Suitable for gaseous and liquid media, compatible with the (body/seals) material used, vacuum. Forged brass, nickel-plated brass, or stainless steel body. Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position.

Nadi Series L54 Open Two Way Solenoid Valve

Nadi Series L54 Open Two Way Solenoid Valve. Nadi solenoid valves are designed according to European standards and with explosion-proof certificates according to actual “ATEX” 2014/34/UE regulations.

Design, manufacturing method, quality assurance, and tests are carried out by staff, 30 years experienced in advanced solenoid valve production, able to collaborate with customers’ technical departments in order to solve special problems, make feasibility studies for solenoid valves or duty for special applications.

Two-way direct-acting solenoid valve with spring return. Suitable for gaseous and liquid media, compatible with the (body/seals) material used, vacuum. Forged brass, nickel-plated brass, or stainless steel body. Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position.

Nadi S.r.l. is an Italian social company that manufactures service gravity solenoid valves, particularly used in the field of industrial instrumentation, for highly reliable system blocks and alarms.

Features

Body Material

  • Brass
  • Nickel-plated Brass
  • Stainless Steel

Port Size

  • 3/8″ GAS
  • 1/2″ GAS
  • 3/8″ NPT
  • 1/2″ NPT

Seals Materials

  • Buna N
  • FPM
  • RULON
  • EPDM

Protection Class

  • IP65

Applications

L54 Normally Open

  • IN: In
  • OUT: Out
  • Coil De-energized from IN to OUT
  • Coil Energized IN and OUT closed

Specifications

Continuous duty glass-reinforced nylon molded coil with electrical connection suitable for DIN-43650A plug (2 poles+ground) or “faston” wire terminal.

  • Coil type : B6 (L64 series)
  • Insulation class: F (155°C) – H (180°C) upon request.
  • Winding wire class: H (180°C)
  • Protection class: Waterproof IP-65 (EN60529 standards) when
    properly plug connected with the DIN-43650A plug.
  • Duty: Continuous (S.I.) 100% ED
  • Power consumption(1): Alternate current 10VA (inrush 20VA)
    Direct current 8W
  • Voltage tolerance: ± 10%
  • Electrical Insulation: >1000 MOhm
  • Dielectric Strength: >2000 V/1’
  • Standard voltages 12, 24, 48, 110, 115, 125, 220, 240 Volt
  • DC= o AC~(50/60Hz): other voltages available upon request.

Downloads

Datasheet : Nadi Series L54 Open Two Way Solenoid Valve
