Tokyo Ryuki Kogyo Flo-PL Series Rotameter It is a high-precision area-type flow meter that can directly read the instantaneous flow rate of various types of liquids and gases from the scale on the glass tube indicated by the float.

Get a Quote

Tokyo Ryuki Kogyo Flo-PL Series Rotameter It is a high-precision area-type flow meter that can directly read the instantaneous flow rate of various types of liquids and gases from the scale on the glass tube indicated by the float.

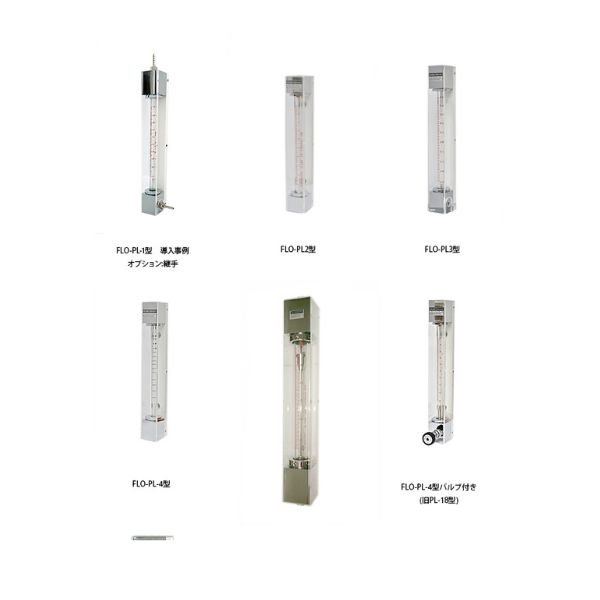

  • FLO-PL1 type (flow direction special)
  • FLO-PL2 type (flow direction bottom ⇒ top)
  • FLO-PL3 type (flow direction bottom side ⇒ top side)
  • FLO-PL4 type (flow direction back bottom ⇒ back top)
  • Existing (old) Model FLO-PL-18 (with FLO-PL- □ valve)

General Specifications

Measuring fluid Liquid (water, cooling water, transparent liquid)
Gas (air, nitrogen, argon, carbon dioxide, etc.)
Scale range 10: 1
Maximum flow rate Liquid 7-70L / min
Gas 90-900NL / min
Body material Brass (BS), SUS304, SS, etc.
Tapered tube material Hard glass
Float material Liquid SUS304 SUS316
gaseous aluminum
rubber seal NBR, CR (neoprene), byton
Connection method Rc connection
Connection diameter Please refer to the measurement range table
Flow accuracy Within ± 2% FS
Mounting direction Vertical direction
Flow direction Please specify by model code
Maximum working pressure 0.7MPa
Maximum operating temperature 80 ℃ (depending on the material)
Thermal shock 50 ℃ or less
External dimensions Please refer to the measurement range table

Features

Classification No Flow rate display Flow rate display Connection diameter External dimensions mm
H2O (L / min) AIR (NL / min) Rc
0 0.001 to 0.01 0.01-0.1 1 / 4B 320
1 0.05-0.5 0.5-5 1 / 4B 320
2 0.2-2.0 5-50 1 / 4B 320
3 0.5-5 15-150 1 / 4B 320
Four 1-10 20-200 1 / 2B 320
Five 2-20 40-400 3 / 4B 450
6 4-40 60-600 1B 530
7 7-70 90-900 1B 540
  • We will manufacture after confirming the fluid name, density, viscosity, pressure, temperature, flow rate range, connection standard, body material, packing material, etc.
  • For liquid measurement (float: SUS304, etc.)
    * Density = 1.0 g / cm3 and viscosity = 1 cP are standard.
  • For gas measurement (float: aluminum, etc.)
    * The flow rate is displayed by flowing AIR 20 ° C and converting it to the standard state of 0 ° C atm (0.101MPa (A)). (Unit: NL / min)
    * Manufactured in standard condition (atmospheric pressure 20 ° C) upon request. (Unit: SL / min)

Applications

  • Liquid
    • Water
    • Cooling water
    • Transparent liquid
  • Gas
    • Air,
    • Nitrogen
    • Argon
    • Carbon dioxide
    • etc

Specifications

Flow direction fluid Classification Wet contact material valve Packing material Alarm output Flow rate range / operating temperature / pressure
FLO-PL- -□ -□ -0 □ -T -V -P -□
1
[Special]		 A [AIR] 0 BS N [None] 1 [NBR] 0-None
2
[bottom to top]		 W [Wed] 1 SUS304 U [top] 2 [CR (neoprene)] 1-Yes (conditional)
3
[Horizontal direction]
(Please specify left and right)		 Any 2 SS D [bottom] 3 [FKM Byton]
4
[Bottom back → Top back]		 3
Four
Five
6
7

* PL-2 is a valveless type. In  addition, please fill in if the fluid is other than air or water.

Model code entry example
example ①FLO-PL-4-A-05-TBS-VN-P1-0 Flow range 30-300NL / min, temperature 20 ℃, pressure 0.101MPa (A)
Accessories: Unnecessary

Example ②FLO-PL-4 -W-3-TBS-VD-P1-0 Flow range 0.5-5L / min, Temperature 20 ℃, Pressure 0.3MPa (G)

Accessories: Unnecessary Our serial number FM stated on the name plate when making inquiries

Downloads

Datasheet: Tokyo Ryuki Kogyo Flo-PL Series Rotameter
