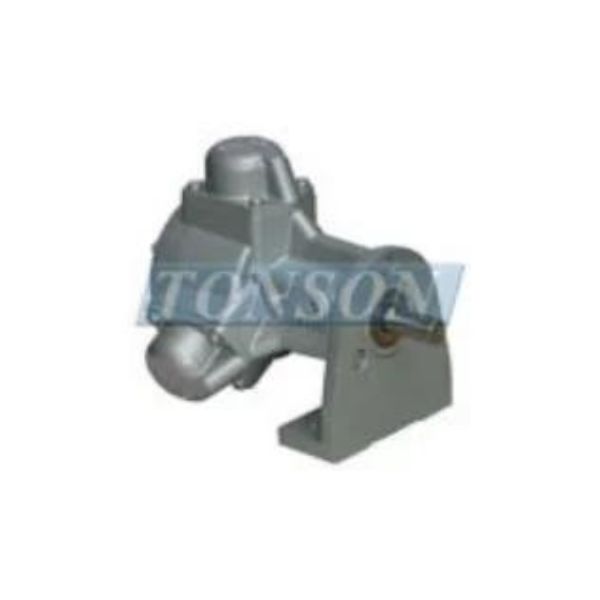

Tonson M2 G30 Piston Air Motor

Tonson M2 G30 Piston Air Motor is designed to operate by compressed air and to be used with a filter, regulator, and lubricator to improve performance and provide longer life

Tonson M2 G30 Piston Air Motor is designed to operate by compressed air and to be used with a filter, regulator, and lubricator to improve performance and provide longer life. Air Motors can easily operate under conditions that are unfavorable for electric, hydraulic, stepper, and servo motors.

Tonson M1 Type Piston Air Motor Feature :

  • Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available
  • Modular Design: All motors may be equipped with a gear reducer, brake, hand, remote, and remote pendant control as options.
  • Intrinsically safe in hazardous environments (ex. mines, petrochemical, volatile atmosphere
  • Easy Maintenance
  • 100% Explosion-proof
  • Positive Start
  • Stalling Safety
  • High Start Torque
  • Stepless Speed Control
  • Rugged Design
  • Low Air Consumption
  • Instantly Reversible
  • Never burn out
  • Self-Sealing & Cool Running
  • All Plane Operation

Application :

  • Hoist / Winches
  • Lifting Devices
  • Mixing Equipment
  • Choppers / Grinders
  • Mining Equipment
  • Pump Drives
  • Automation Devices
  • Hose Reels
  • Conveyor Drives
  • Turntables
  • Food / Pharmacy Packaging

Features

  • Explosion-proof
  • Stalling Safety
  • Rugged Design
  • Positive Start
  • High Start Torque
  • High Torque output
  • Instanlty Reversible
  • Stepless Speed Control
  • Low Air Consumption
  • Easy Maintenance
  • Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available
  • Modular Design: All motors may be equipped with gear
  • reducer, brake, hand, remote, remote pendant control as options.
  • Dual-shaft model available.
  • Intrinsically safe in hazardous environment (ex. mines, petrochemical, volatile atmosphere

Applications

  • Hoist / Winches
  • Lifting Devices
  • Mixing Equipment
  • Pump Drives
  • Choppers / Grinders
  • Mining Equipment

Specifications

  • Foot Options
  • Type: G30 With Reducer
  • Gear Ratio: 30:1
  • Performance at Maximum Speed
  1. Power (HP): 0.12
  2. Power (kW): 0.09
  3. Torque: 21.7 N·m
  4. Torque: 192 lb·in
  5. Speed: 33.3 RPM
  6. Air Consumption: 211 l/min
  7. Air Consumption: 7 CFM
  8. Speed: 6.7 RPM
  • Maximum Torque
  1. Torque: 38.1 N·m
  2. Torque: 337 lb·in

Downloads

Datasheet : Tonson M2 G30 Piston Air Motor
