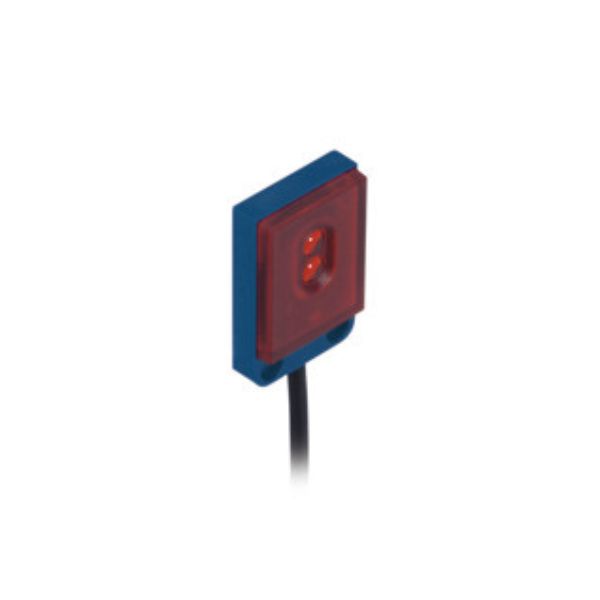

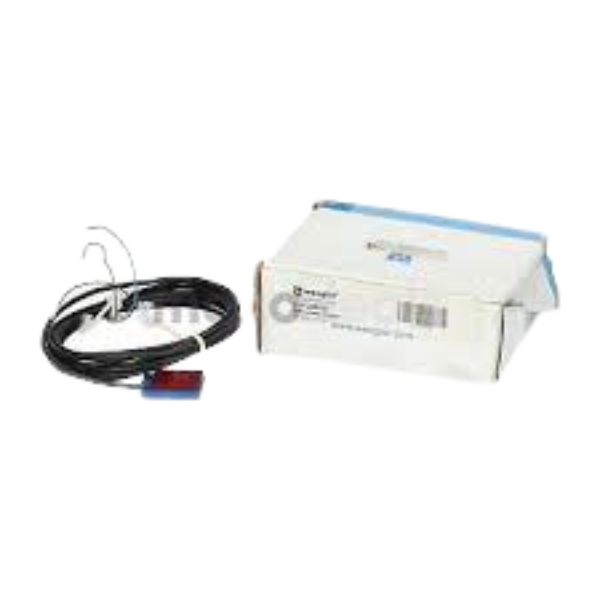

Wenglor L1FL66VD Retro Reflex Sensor Universal

Wenglor L1FL66VD Retro Reflex Sensor Universal is a reflector that must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.

Wenglor L1FL66VD Retro Reflex Sensor Universal is a reflector that must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light. Reflex light barriers and retro-reflex sensors work with different light sources, whereby the emitter and receiver are located in one housing. When the light beam between the emitter and the defined background or reflector is interrupted, a switching signal is output.

Features at a Glance

  • Rear panel mounting
  • Glossy objects can be detected
  • Integrated output

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 2 kHz
Response Time 250 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Features

  • Rear panel mounting
  • Glossy objects can be detected
  • Integrated output

Applications

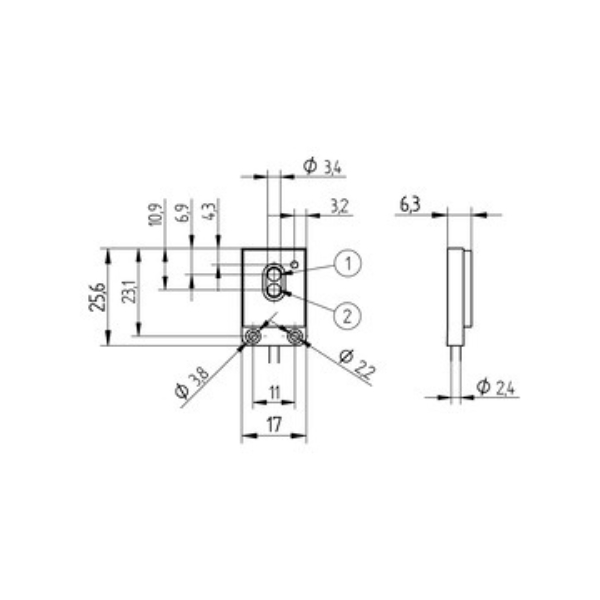

Dimensions specified in mm (1 mm = 0.03937″)
1 = Receiver Diode
2 = Transmitter DiodeScrew
M2 = 0,3 Nm

Specifications

Optical Data

Range 1,400 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis  < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 15 °
Two-Lens Optic yes

Mechanical Data

Housing Material Plastic
Degree of Protection IP67
Connection Cable, 3-wire, 2 m

Output

PNP NC yes

Downloads

Datasheet : Wenglor L1FL66VD Retro Reflex Sensor Universal
