Wenglor LB66PC7K Retro Reflex Sensor Universal

reflector must be used in combination with these sensors.

A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.

Features

  • Glossy objects can be detected
  • Micro-design
  • Contamination warning
  • Integrated output

Applications

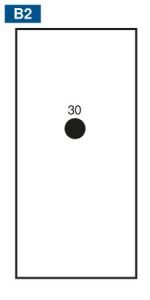

30 = Switching Status/Contamination Warning

Specifications

Optical Data

Range 1,300 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis  < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Two-Lens Optic yes

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 1,800 Hz
Response Time 270 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Mechanical Data

Housing Material Stainless Steel
Degree of Protection IP67
Connection M8 × 1; 4-pin
Cable Length 20 cm

Output

PNP NO yes

Adjustable parameters

Circuit NC
NC/NO
NO

Table 1

Working Distance 200 mm 500 mm 1000 mm
Light Spot Diameter 35 mm 80 mm 160 mm

Downloads

Datasheet : Wenglor LB66PC7K Retro Reflex Sensor Universal
