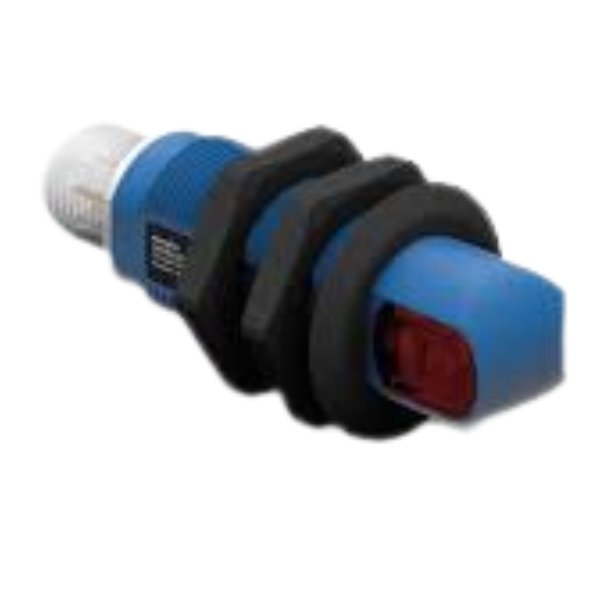

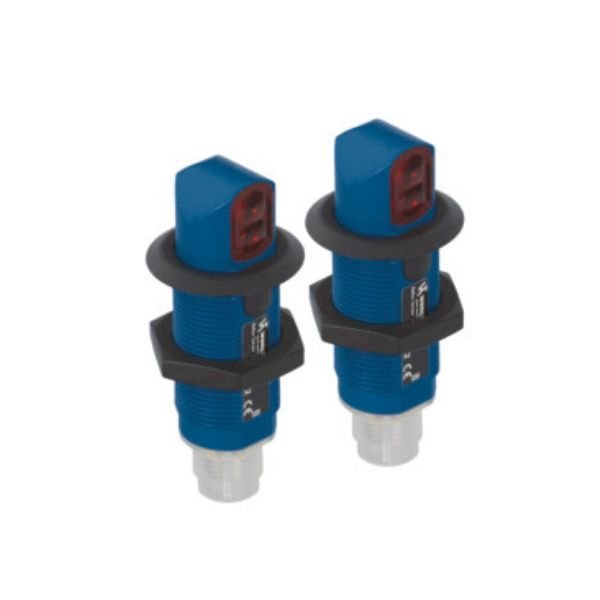

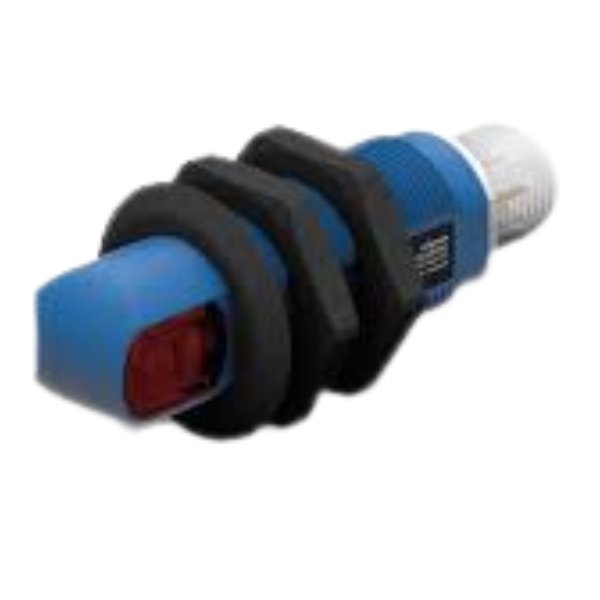

Wenglor OEWK803A0002 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor OEWK803A0002 Through Beam Sensor

Wenglor OEWK803A0002 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Wenglor OEWK803A0002 Through Beam Sensor Features at a Glance

  1. Switching distance adjuster
  2. Clever inclusive mounting technology
  3. Simple installation
  4. Large working range
  5. Minimal installation space
  • Clever inclusive mounting technology
  • Large working range
  • Minimal installation space
  • Simple installation
  • Switching distance adjuster
  • Optical Data
  • Range: 8000 mm
  • Switching Hysteresis : < 15 %
  • Light Source : Red Light
  • Service Life (T = +25 °C) : 100000 h
  • Max. Ambient Light : 10000 Lux
  • Opening Angle : 4 °
  • Electrical Data
  • Sensor Type : Receiver
  • Supply Voltage : 10…30 V DC
  • Current Consumption (Ub = 24 V) : < 20 mA
  • Switching Frequency : 600 Hz
  • Response Time : 833 µs
  • Temperature Drift : < 10 %
  • Temperature Range : -25…60 °C
  • Switching Output Voltage Drop : < 2,5 V
  • PNP Switching Output/Switching Current : 100 mA
  • Residual Current Switching Output : < 50 µA
  • Short Circuit and Overload Protection : yes
  • Reverse Polarity Protection : yes
  • Protection Class : III

Features

  • Switching distance adjuster
  • Clever inclusive mounting technology
  • Simple installation
  • Large working range
  • Minimal installation space

Applications

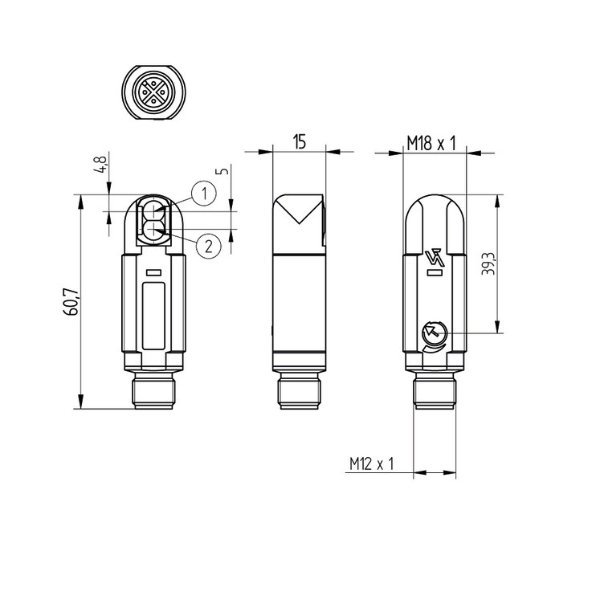

B_BED_DK_3.eps
05 = Switching Distance Adjuster
68 = supply voltage indicator
01 = Switching Status Indicator

Specifications

Optical Data

Range8,000 mm
Switching Hysteresis < 15 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle4 °

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

General Data

Scope of deliveryMounting Console

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Downloads

Datasheet : Wenglor OEWK803A0002 Through Beam Sensor
