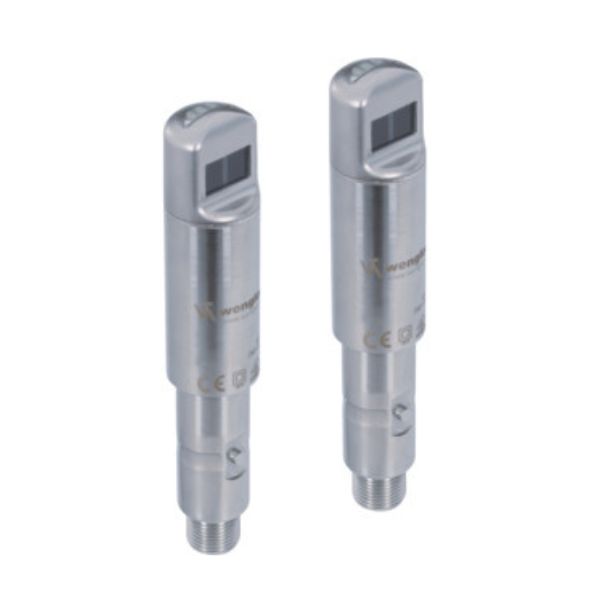

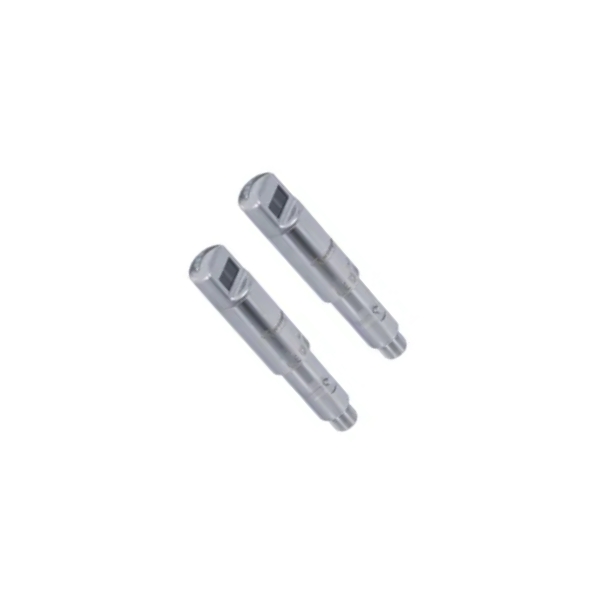

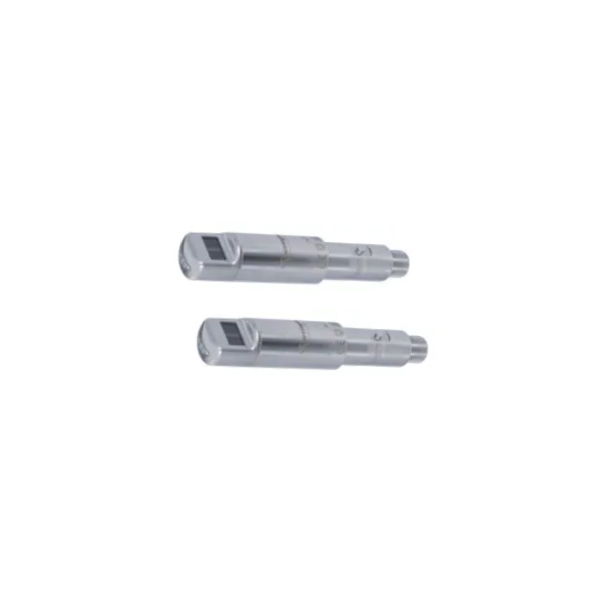

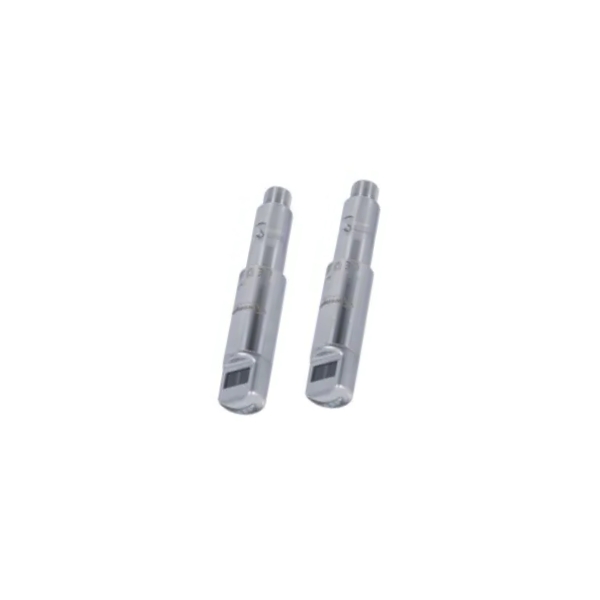

Wenglor OSII403Z0103 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor OSII403Z0103 Through Beam Sensor is the hygiene series from wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system that integrates seamlessly into the machine. The laser-welded stainless steel housing made of V4A (1.4404/316L) is corrosion-free and resistant to cleaning agents. Gap-free mounting with InoxLock and the captive optics further contribute to these sensors’ optimal suitability for cleaning-heavy environments. The InoxSens sensors are set up with the help of touch teach-in and are made possible by the hermetically sealed housing.

Wenglor OSII403Z0103 Through Beam Sensor

Features at a Glance

  • The hygienic design makes it easy to clean
  • Made with food-safe materials that are FDA approved
  • Touch teach-in, external teach-in
  • Waterproof (IP68/IP69K)

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Touch teach-in, external teach-in
  • Waterproof (IP68/IP69K)

Applications

B_BED_II_2.eps
04 = Function Indicator

Specifications

Specifications Tabs

Optical Data

Range4,000 mm
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Opening Angle3 °

Electrical Data

Sensor TypeEmitter
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 40 mA
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Reverse Polarity Protectionyes
Overload Protectionyes
Teach ModeNT, MT, XT
Test inputyes
Protection ClassIII

Mechanical Data

Setting MethodTeach-In
Housing MaterialStainless steel 316L
Degree of ProtectionIP68/IP69K
ConnectionM12 × 1; 4-pin
Optic CoverPMMA (FDA)
Material Control PanelPC (FDA)

Downloads

Datasheet : Wenglor OSII403Z0103 Through Beam Sensor
