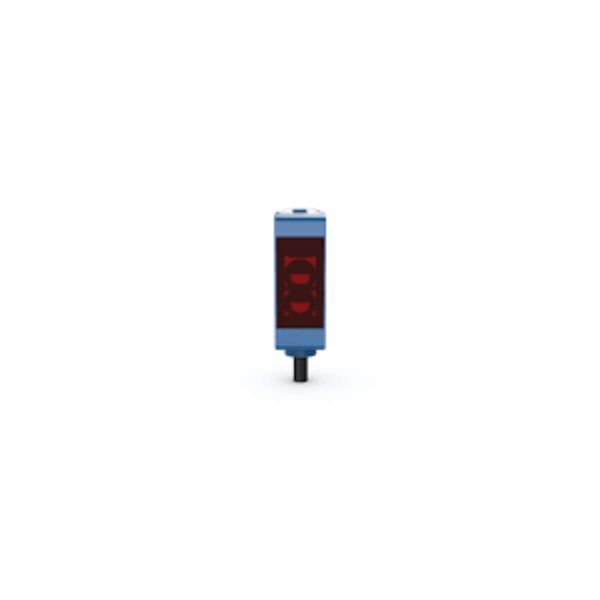

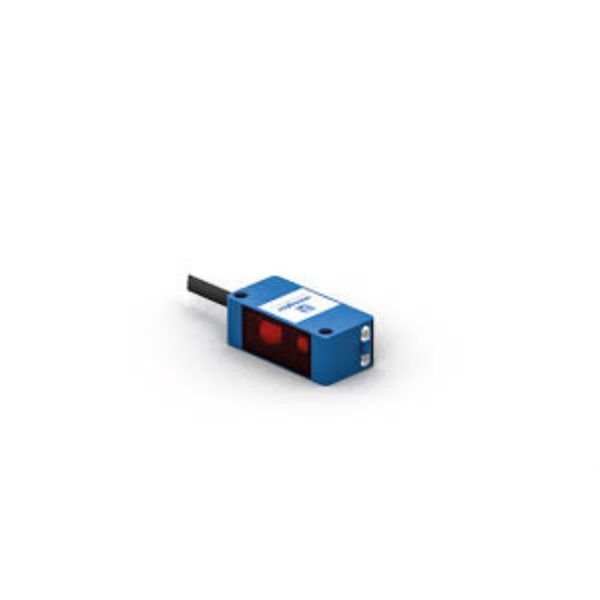

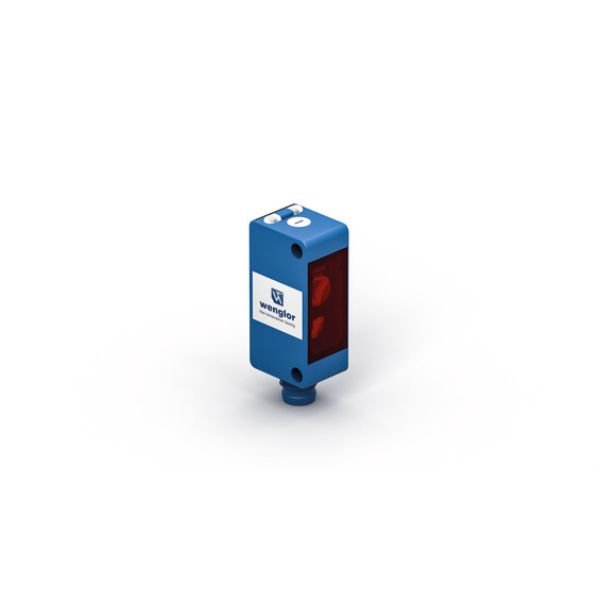

Wenglor P1KH010 Reflex Sensor Background Suppression

Wenglor P1KH010 Reflex Sensor Background Suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects.

Get a Quote

Wenglor P1KH010 Reflex Sensor Background Suppression

Wenglor P1KH010 Reflex Sensor Background Suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.

Features at a Glance

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Electrical Data
Supply Voltage 10 … 30 V DC
Supply Voltage with IO-Link 18 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 1,000 Hz
Switching Frequency (interference-free mode) 500 Hz
Response Time 0.5 ms
Response time (interference-free mode) 1 ms
Temperature Drift (0 °C < Tu < 40 °C) < 5 % *
Temperature Range -40 … 60 °C
Switching Output Voltage Drop < 2 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Lockable yes
Interface IO-Link V1.1
Protection Class III

Features

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

Presence Check of Storage Containers in Load Handling Equipment Using Reflex Sensors with Background Suppression

In modern warehouse systems, shuttles or rack feeders must be used to continuously determine whether and how the load handling equipment (LHE) is used and whether target and actual allocations match. To detect the storage boxes in the LHE, several reflex sensors with background suppression are installed all around in the shuttle. Thanks to the large light spot, the size and position of the containers can be reliably detected – even if they are perforated. Thanks to the small blind spot, the sensor can be installed very close to the boxes, which is a great advantage in the narrow shuttles.



Reflex Sensors With Background Suppression

Reflex sensors with background suppression detect and measure objects contactlessly and detect them in front of any defined background. They work with red light, infrared light, blue light or laser light. Thanks to the principle of angle measurement, the color, shape and object surface have no influence on the switching behavior of the sensors.

Specifications

Optical Data
Range 300 mm
Setting Range 30 … 300 mm
Switching Hysteresis  < 5 %
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1

Mechanical Data
Setting Method Multi-turn
Housing Material Plastic
Degree of Protection IP67/IP68
Connection M8 × 1; 4-pin
Optic Cover PMMA

Safety-relevant Data
MTTFd (EN ISO 13849-1) 2,035.82 a

Output
PNP NO/NC antivalent yes
IO-Link yes

Adjustable parameters
Output Push-pull
NPN
PNP
Circuit Inactive
Error output
NC
NC+NO
NO
Other parameters Off-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1
Detection Range 30 mm 130 mm 300 mm
Light Spot Diameter 8 mm 7 mm 18 mm

Downloads

Datasheet : Wenglor P1KH010 Reflex Sensor
