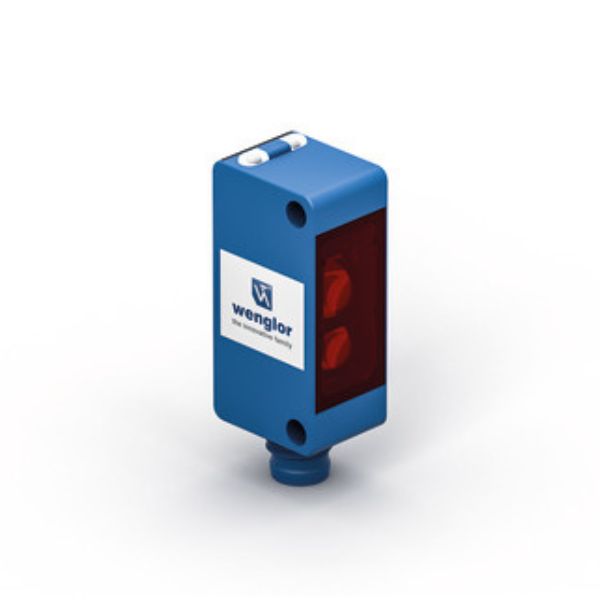

Wenglor P1KT001 Reflex Sensor Energetic

Wenglor P1KT001 Reflex Sensor Energetic the reflex sensor works with red light according to the principle of energy and is designed to detect objects without a background. The switching distance is set for a given object. Note that: Bright objects reflect transmitted light better than dark objects. Dark (matte) objects can also be differentiated from bright (glossy) objects. This means that presence or stack height checks can be conducted or counting tasks carried out. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and distance values.

Features at a Glance

Condition monitoring
Large detection range
High switching frequency
IO-Link 1.1

Electrical Data

Supply Voltage: 10 … 30 V DC
Supply Voltage with IO-Link: 18 … 30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 500 Hz
Switching frequency (speed mode): 1,000 Hz
Response Time: 1 ms
Response time (speed mode): 0.5 ms
Temperature Drift: < 10 %
Temperature Range: -40 … 60 °C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 µA
Interface: IO-Link V1.1
Protection Class: III

Features

Condition monitoring
Large detection range
High switching frequency
IO-Link 1.1

Applications

Presence Check of Nonwoven Fabric on Coffee Capsules with Reflex Sensors

In order for hot water in coffee machines to be pressed evenly through the coffee capsules and thus ensure a uniform taste, wafer-thin white nonwoven fabric must be inserted into the capsules. Once the coffee powder has been poured into the capsules and the nonwoven fabric has been placed on it, energy reflex sensors check the presence of the nonwoven fabric. Mounted above the conveyor belt, they reliably detect the difference between the darker coffee powder and the white nonwoven fabric – even at high belt speeds.

Energetic Reflex Sensors

Reflex sensors check objects for presence, check stack heights or perform counting tasks. They are used when objects need to be detected without a defined background. For this purpose, they use red light or infrared light according to the energy principle.

Specifications

Optical Data
Range	700 mm
Switching Hysteresis	< 10 %
Light Source	Red Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux

Mechanical Data
Setting Method	Potentiometer
Housing Material	Plastic
Degree of Protection	IP67/IP68
Connection	M8 × 1; 4-pin
Optic Cover	PMMA

Safety-relevant Data
MTTFd (EN ISO 13849-1)	2,630.72 a

Output
IO-Link	yes
PNP NO/NC an trivalent	yes

Adjustable parameters
Output	Push-pull NPN PNP
Circuit	NC NC+NO NO Inactive Error output
Other parameters	Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light
