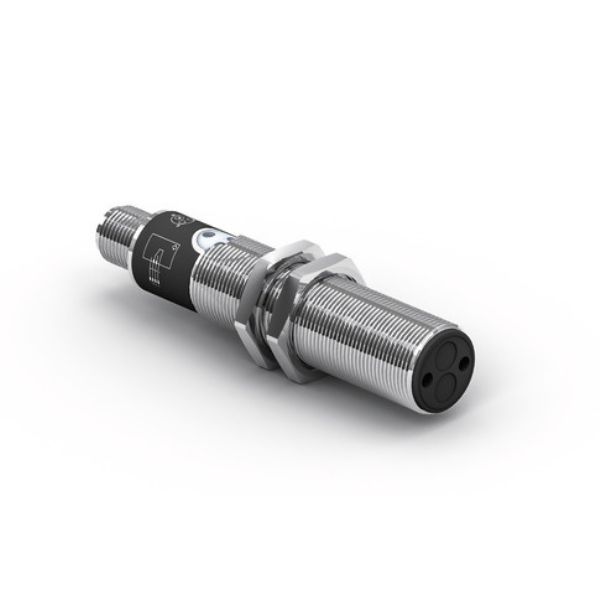

Wenglor TC22PA3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Features at a Glance Wenglor TC22PA3 Reflex Sensor Energetic
- Stainless steel housing
- Adjustable detection range
Electrical Data
- Supply Voltage: 10 … 30 V DC
- Current Consumption (Ub = 24 V): < 40 mA
- Switching Frequency: 1,500 Hz
- Response Time: 330 µs
- Temperature Drift: < 10 %
- Temperature Range: -25 … 60 °C
- Switching Output Voltage Drop: < 2.5 V
- PNP Switching Output/Switching Current: 200 mA
- Residual Current Switching Output: < 50 µA
- Short Circuit Protection: yes
- Reverse Polarity Protection: yes
- Overload Protection: yes
- Protection Class: III
