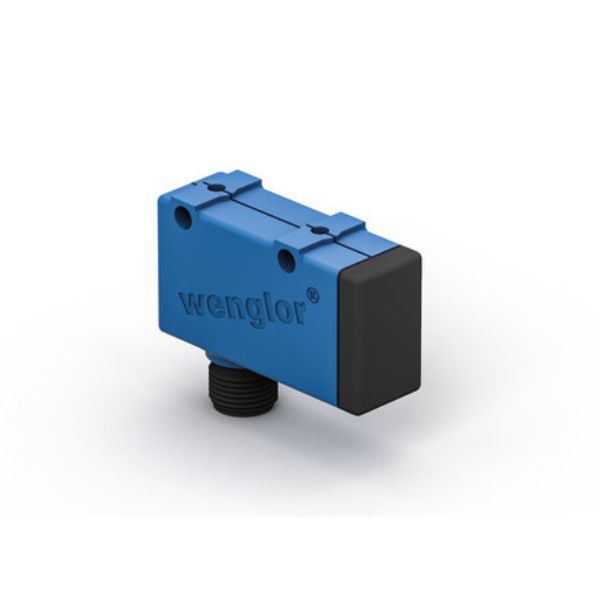

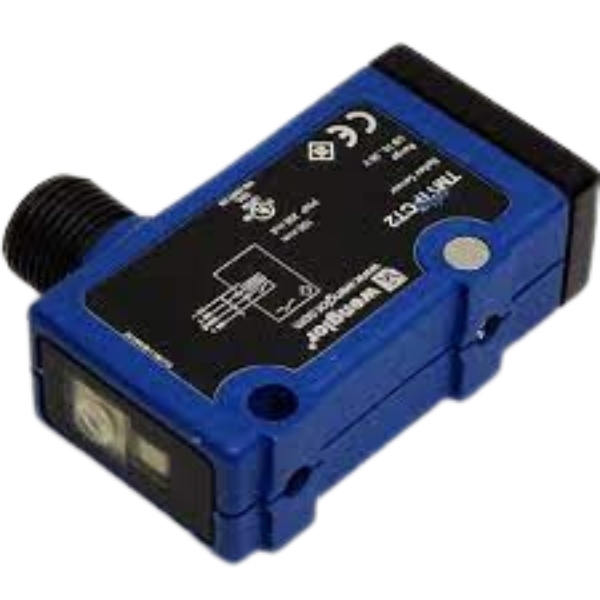

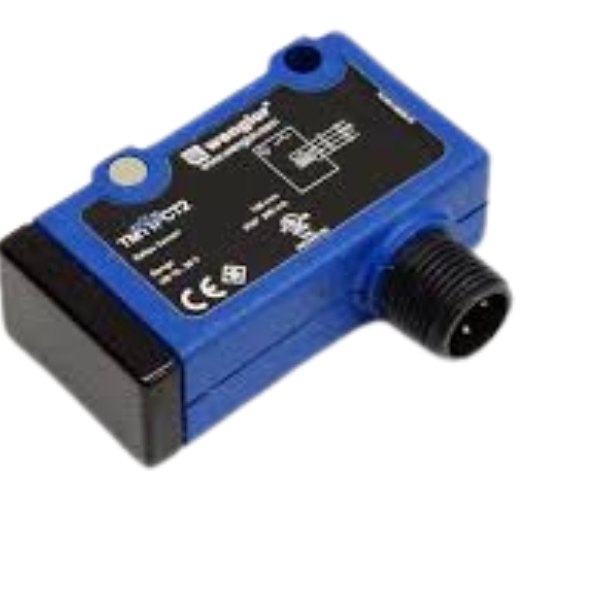

Wenglor TM11PCT2 Reflex Sensor Energetic

Wenglor TM11PCT2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing.

Wenglor TM11PCT2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances

Optical Data Wenglor TM11PCT2 :

  • Range 100 mm
  • Switching Hysteresis  < 15 %
  • Light Source Infrared Light
  • Wavelength 850 nm
  • Service Life (T = +25 °C) 100,000 h
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data Wenglor TM11PCT2 :

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 40 mA
  • Switching Frequency 2 kHz
  • Response Time 250 µs
  • On-/Off-Delay (RS-232) 0 … 5 s
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Lockable yes
  • Teach Mode NT, MT
  • Protection Class III

Mechanical Data Wenglor TM11PCT2 :

  • Setting Method Teach-In
  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output Wenglor TM11PCT2 :

  • PNP NO yes
  • RS-232 with Adapterbox yes

Adjustable parameters Wenglor TM11PCT2 :

  • Circuit NC
  • NC/NO
  • NO

Features

  • Compact housing
  • Teach-in, external teach-in

Applications

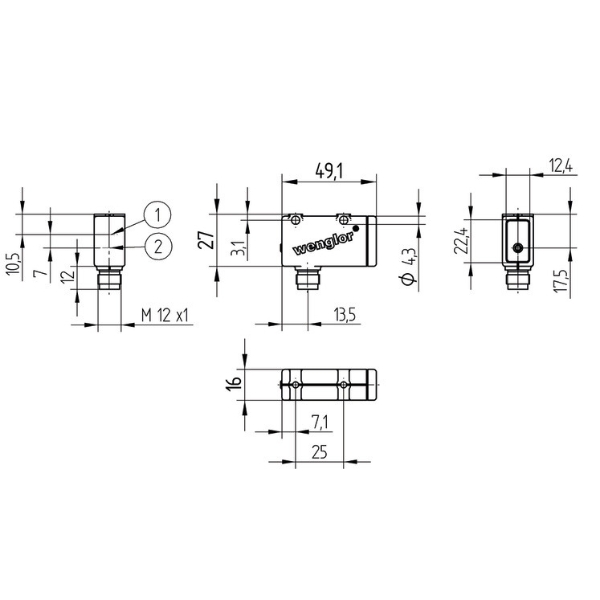

B_BED_M_03.eps
30 = Switching Status/Contamination Warning
06 = Teach Button

Specifications

Optical Data

Range 100 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Wavelength 850 nm
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data

Supply Voltage 10 … 30 V
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 2 kHz
Response Time 250 µs
On-/Off-Delay (RS-232) 0 … 5 s
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode NT, MT
Protection Class III

Mechanical Data

Setting Method Teach-In
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output

PNP NO yes
RS-232 with Adapterbox yes

Adjustable parameters

Circuit NC
NC/NO
NO
