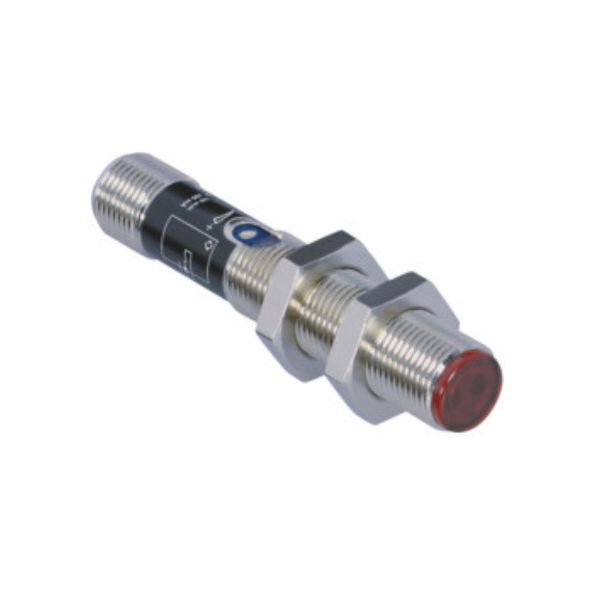

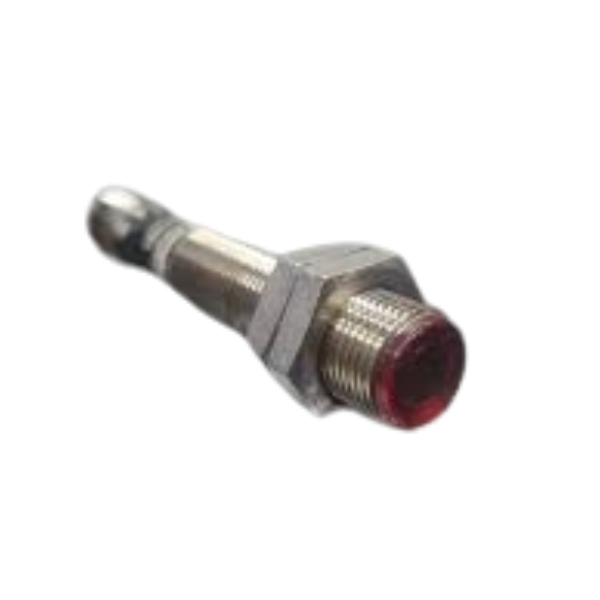

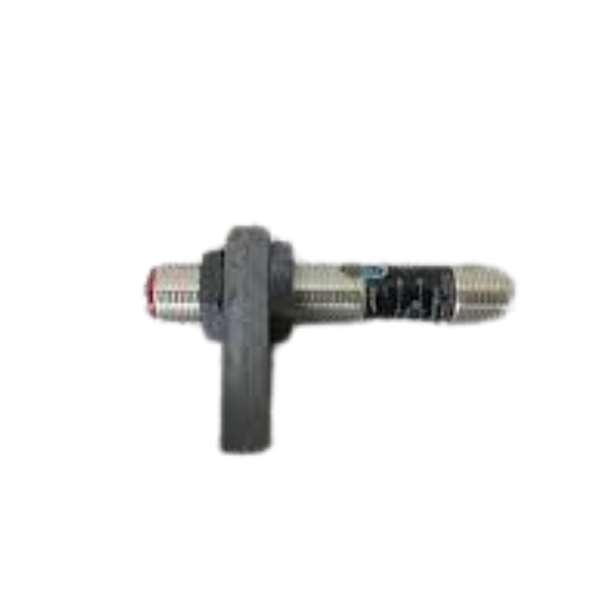

Wenglor TO11PB3 Reflex Sensor Energetic

Wenglor TO11PB3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing.

Wenglor TO11PB3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

Optical Data Wenglor TO11PB3 :

  • Range 100 mm
  • Switching Hysteresis  < 15 %
  • Light Source Infrared Light
  • Service Life (T = +25 °C) 100,000 h
  • Risk Group (EN 62471) 1
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data Wenglor TO11PB3 :

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 40 mA
  • Switching Frequency 800 Hz
  • Response Time 650 µs
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • Residual Current Switching Output < 50 µA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

Mechanical Data Wenglor TO11PB3 :

  • Setting Method Potentiometer
  • Housing Material CuZn, nickel-plated
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output Wenglor TO11PB3 :

  • PNP NO yes

Features

  • Compact housing
  • Adjustable detection range

Applications

B_BED_O_02.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning

Specifications

Optical Data

Range 100 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100,000 h
Risk Group (EN 62471) 1
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 800 Hz
Response Time 650 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Mechanical Data

Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output

PNP NO yes
