EGE MFP Series Microwave Level Meter
EGE MFP Series Microwave Level Meter, The MFP level meter for continuous monitoring of various liquids allows measurement of the fill level in plastic or metal tanks of any size. The devices offer high measurement precision. They work with numerous liquids such as water, oil, or emulsions. Principle of measurement: The microwaves are “guided” along the rod and are reflected at the surface of the medium. From this, the sensor determines the fill level. No adjustment is necessary for various media. The devices are made of aluminum and AISI 316 Ti stainless steel and are suitable for ambient temperatures between – 20 and +70 °C.
Applications
MFP Series is suitable for continuous monitoring of various liquids allow measurement of the fill level in plastic or metal tanks of any size
Specification
| Design |
DC Analog / DC PNP • G3/4 |
| Design |
Single probe |
Parallel probe |
Coaxial probe |
| Output |
4…20 mA, linear |
2x PNP, programmable |
4…20 mA, linear |
2x PNP, programmable |
4…20 mA, linear |
2x PNP, programmable |
4…20 mA, linear |
2x PNP, programmable |
4…20 mA, linear |
2x PNP, programmable |
| ID-No. |
P ….. |
| Type-sensor length L |

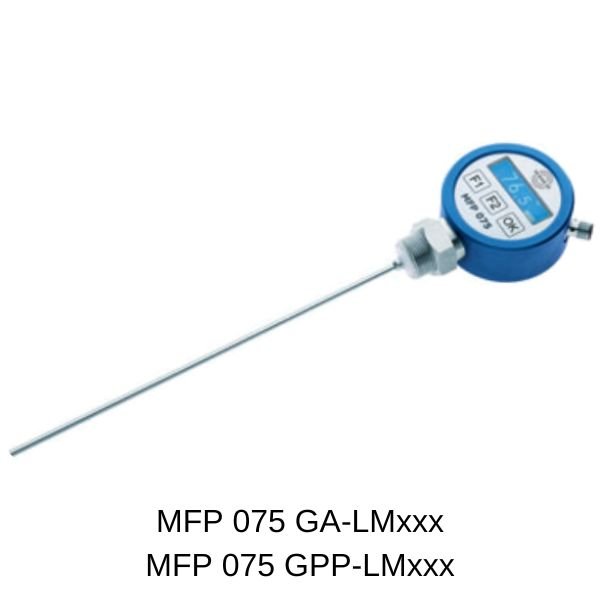

MFP 075 GA-LMxxx |
MFP 075 GPP-LMxxx |

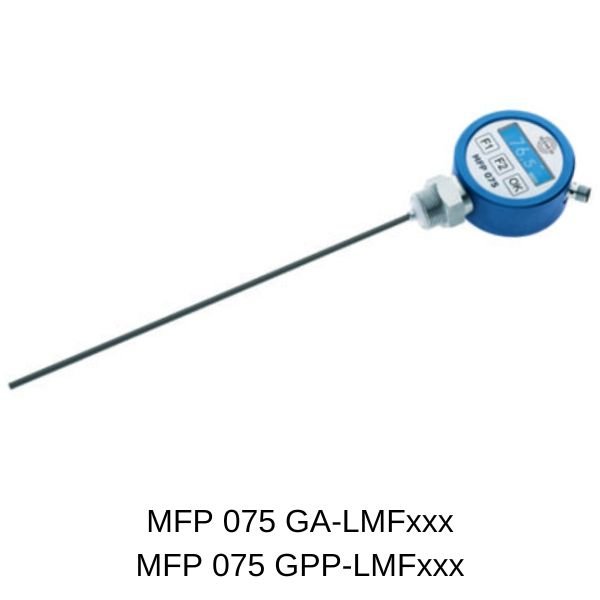

MFP 075 GA-LMFxxx |
MFP 075 GPP-LMFxxx |

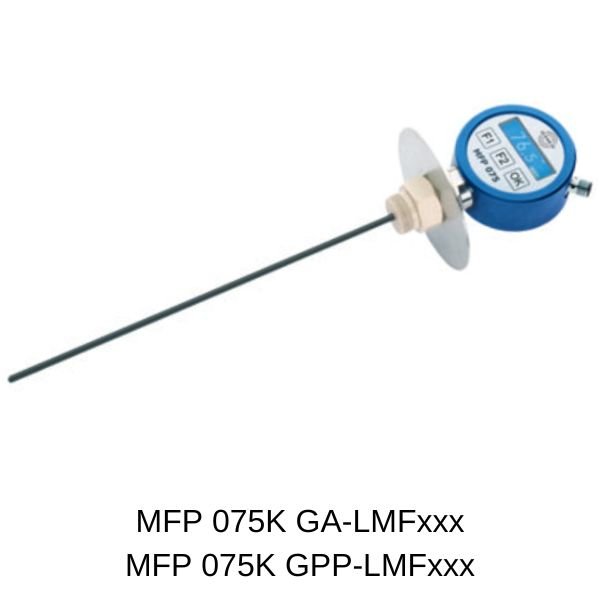

MFP 075K GA-LMFxxx |
MFP 075 GPP-LMFxxx |

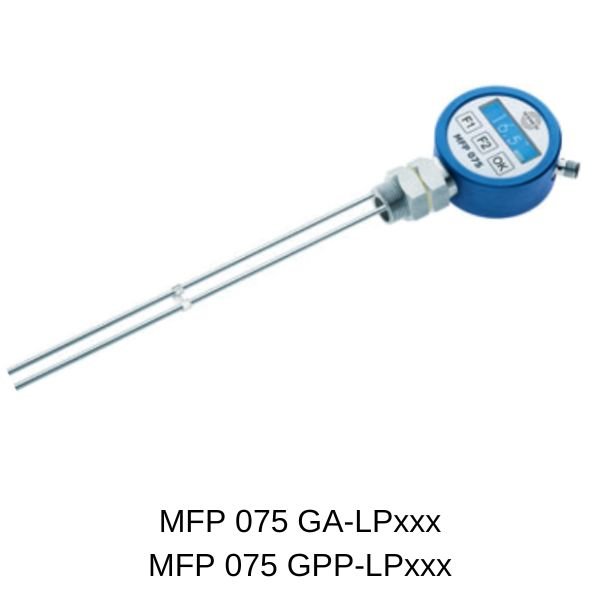

MFP 075 GA-LPxxx |
MFP 075 GPP-LPxxx |

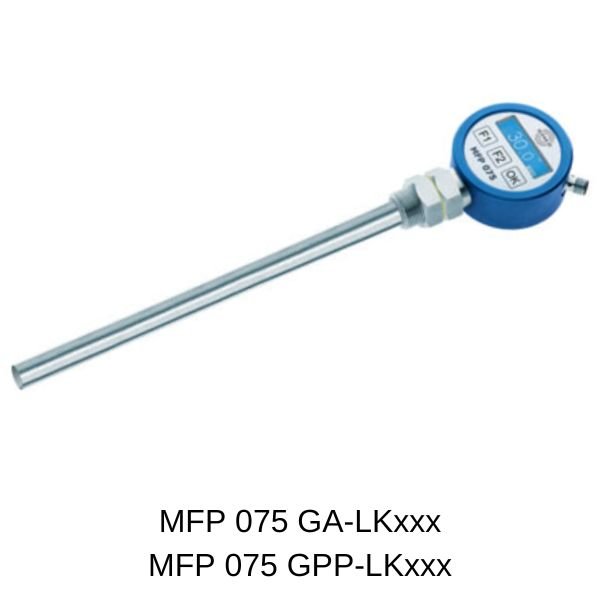

MFP 075 GA-LKxxx |
MFP 075 GPP-LKxxx |
| Supply voltage |
20…27 VDC |
| Current consumption |
< 45 mA |
| Current output |
4…20 mA |
– |
4…20 mA |
– |
4…20 mA |
– |
4…20 mA |
– |
4…20 mA |
– |
| Load resistance RL |
200…500 Ω |
– |
200…500 Ω |
– |
200…500 Ω |
– |
200…500 Ω |
– |
200…500 Ω |
– |
| Switching current |
– |
200 mA |
– |
200 mA |
– |
200 mA |
– |
200 mA |
– |
200 mA |
| Reverse protection |
Yes |
| Precision |
5 mm |
| Transition zone* |
top: 25mm, bottom: 15mm |
top: 40mm, bottom: 15mm |
top: 25mm, bottom: 15mm |
| Ambient temperature |
0…+70 °C |
| Medium temperature |
0…+80°C |
| Sensitivity |
≥20εr |
≥2.3εr |
≥2εr |
| Protection |
IP 67 EN 60529 |
| Housing material |
Aluminium |
Aluminium, AISI 316 Ti |
Aluminium |
| Material |
AISI 316 Ti, PTFE |
AISI 316 Ti, PTFE, PFA |
PEEK, PFA |
AISI 316 Ti, PTFE, POM |
| Sealing material |
NBR, AFM 34, different material on request |
NBR, different material on request |
NBR, AFM 34, different material on request |
| Compressive strength |
10 bar (25 °C) |
| Connection |
M12 connector |
| Accessories |
connecting cable SLG / SLW 3…, SLG / SLW 4…, see page 2.38 on the catalog |
* Depending on the installation conditions and the medium, deviations from the specified measuring accuracy can occur in this area.
** Please check the Catalog for more information
