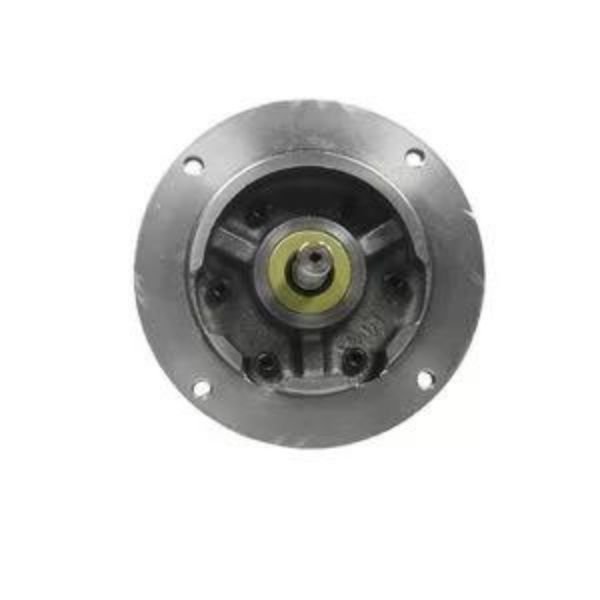

Gast 4AM-ARV-119 Air Motor

Gast 4AM-ARV-119 Air Motor the compact and portable operating speed and power output that can be adjusted to meet the precise needs of your application.

Gast 4AM-ARV-119 Air Motor

Gast 4AM-ARV-119 Air Motor the compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Why use a Gast Air Motor?

Variable Speed
You can vary air motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between the air source and air motor.
Non-electrical Sparking
As a non-electrical device, the possibility of explosion from igniting flammable gases is greatly reduced.
Instantly Reversible
A four-way valve in the air line enables a Gast Air Motor to be instantly reversed. A turn of the valve causes a complete reversal of rotation, even when the motor is running at full speed.

Features

  • 4 Vanes, Reversible
  • IEC #72 mounting frame size D71
  • Any plane operation
  • Metal muffler AC980 adds 2″ height when installed (Includes 3/8 BSP adaptor with air motor)
  • II 2 GD c T4

Applications

RECOMMENDED

  • Repair kit K206C (4AM-ARV-119)
  • Repair kit K208B (4AM-ARV-120)

Specifications

  • Key Type: KEY,SQ (METRIC)
  • Max Air Consumption: 78 cfm ( 132.52 m3h )
  • Max Power: 1.7 hp ( 1.27 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 87 dB(A)
  • Max Speed: 3000 rpm
  • Max Torque: 56 in-lb ( 6.33 N m )
  • Mount: Flange (IEC)
  • Output Shaft Type: Keyed
  • Port Size and Type: 3/8″ BSP
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Shaft Size: 0.55 in ( 13.97 mm )
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 28 in-lb ( 3.16 N m )
  • Torque Max Speed: 36 in-lb ( 4.07 N m )
  • Vanes: 4
  • Weight: 11 lbs ( 4.99 kg )

Downloads

Datasheet : Gast 4AM-ARV-119 Air Motor
