Description

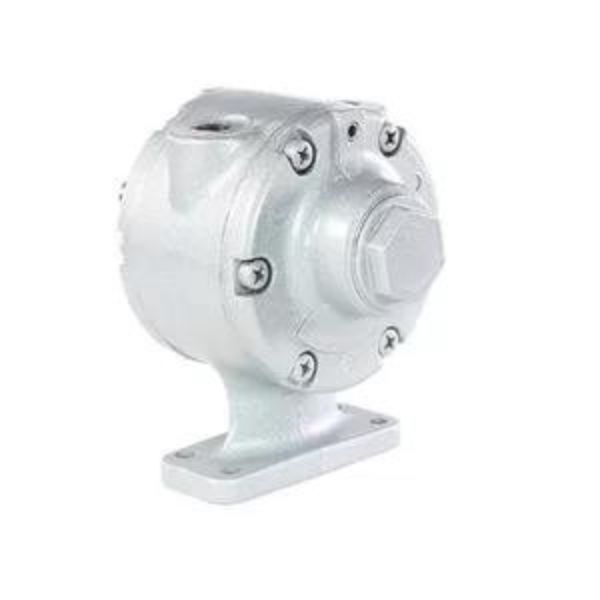

Gast 4AM-FRV-13C Air Motor

Gast 4AM-FRV-13C Air Motor the compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Why use a Gast Air Motor?

Variable Speed
You can vary air motor speed between 300 and 10,000 rpm (depending on model selection) with a simple valve put in between
the air source and air motor.

Features

4 Vanes, Reversible
Foot mounting
Any plane operation
Single or dual shaft
Metal muffler AC980 adds 2″ height when installed
II 2 GD c T4

Applications

RECOMMENDED

Filter AH103F
Regulator AH104R
Gauge AA806
Lubricator AH105L
Oil AD220 – 1 quart (.94 litres)
Repair kit K205 (4 Vane, Reversible)
Repair kit K279 (8 Vane, Reversible)

Specifications

Key Type: #3 Woodruff
Max Air Consumption: 78 cfm ( 132.52 m3h )
Max Power: 1.7 hp ( 1.27 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 87 dB(A)
Max Speed: 3000 rpm
Max Torque: 56 in-lb ( 6.33 N m )
Mount: FOOT
Output Shaft Type: Keyed
Port Size and Type: 1/4″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.5 in ( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 28 in-lb ( 3.16 N m )
Torque Max Speed: 36 in-lb ( 4.07 N m )
Vanes: 4
Weight: 7.5 lbs ( 3.4 kg )
