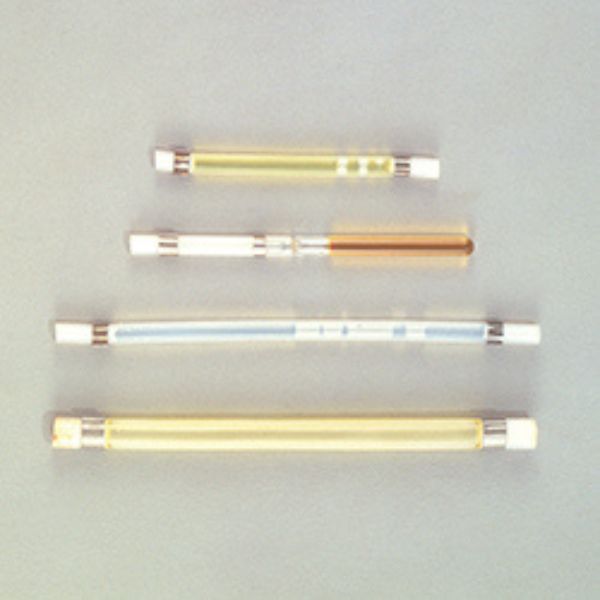

Gastec P-4 Permeation Tube Hydrogen Sulphide
Gastec P-4 Permeation Tube Hydrogen Sulphide Generating calibration gas with a permeation tube. Gastec P-4 (also cataloged as P4) is a certified Hydrogen Sulphide (H2S) permeation tube engineered as a primary trace-gas generation standard for producing known, continuous, low-ppm concentrations of hydrogen sulphide vapor.
When housed inside a constant-temperature dynamic gas calibration generator (such as the Gastec PD-1B or single-channel PD-1C permeaters), it releases a certified micro-rate mass flow of pure H2S through a fluoropolymer membrane into a controlled dilution air or nitrogen stream.
Generating Calibration gas with a permeation tube
Gastec P-4 Permeation Tube Hydrogen Sulphide a permeation tube is a fluororesin tube that contains high-grade liquefied gas. When the tube is exposed to a certain temperature, liquefied gas penetrates the tube wall by osmosis in time-increments enabling a specific quantity of gas to be retained in the tube . Consequently, a carrier gas flowing at a constant speed (for calibration purposes) can be continuously generated by keeping the tube at a fixed temperature and infusing a constant quantity of dilution gas. This method is highly reliable because the concentration of the calibration gas is determined by calculating the decrease in weight of the permeation tube and the quantity of dilution gas. This dynamic method also enables highly reactive gases such as chlorine, hydrogen sulphide or ammonia to be generated. As shown in the table below, there are many different kinds of permeation tubes and they are widely used because they can provide a stable supply of calibration gas.
