Seametrics iMAG 4700 Series Electromagnetic Flow Meter

Seametrics iMAG 4700 Series Electromagnetic Flow Meter is the most economical flanged electromagnetic flowmeter on the market.

Seametrics iMAG 4700 Series Electromagnetic Flow Meter

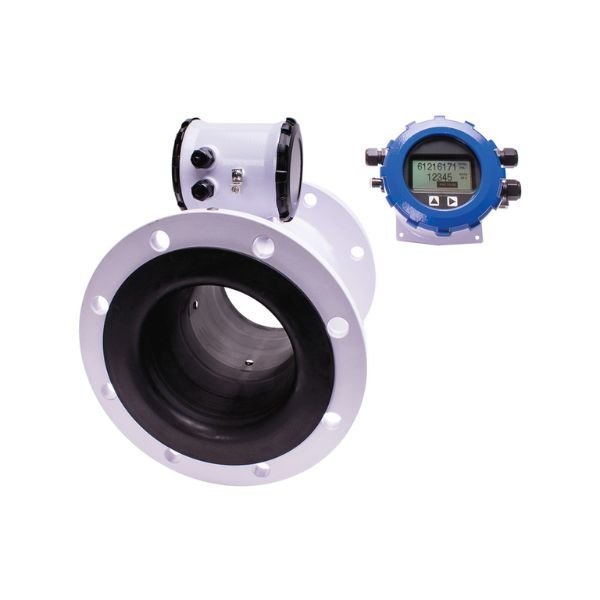

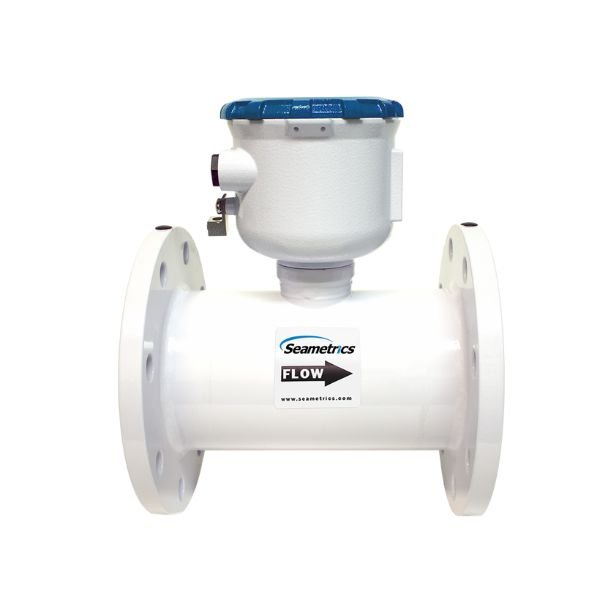

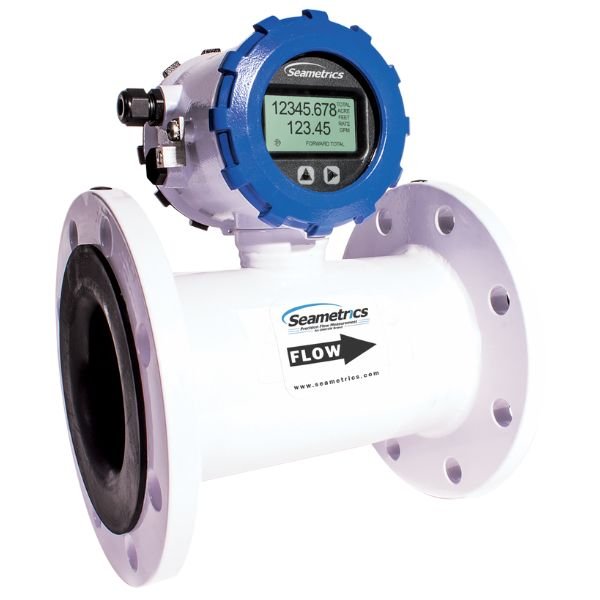

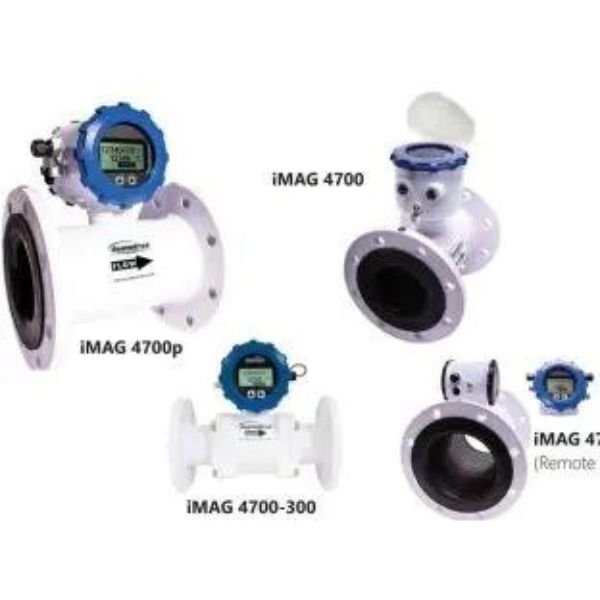

Seametrics iMAG 4700 Series Electromagnetic Flow Meter is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.

The iMAG 4700 is also available in either AC or DC powered versions, with battery backup. Pulse output is standard on all models, while 4-20mA passive current loop is also standard on the iMAG 4700p. 4-20mA loop is optional on the iMAG 4700 and iMAG 4700r externally powered meters and Modbus® protocol outputs are optional on all models although battery life will be reduced if ordered on battery powered units. A power / output cable allows outputs for use with a variety of Seametrics displays and other controls for remote reading and telemetry applications.

Features

  • Easy setup
  • Minimal straight pipe
  • Mounted or remote display
  • Tamper-evident seal
  • Certified to NSF/ANSI standard 61
  • IP68 rated
  • No moving parts
  • Telemetry ready for wireless meter reading. Solutions available now by our sister company, Signal Fire.

Applications

THE RIGHT METER FOR

  • Water & Wastewater Treatment
  • Municipal
  • Pump skids
  • Pump stations
  • Packaged plants
  • Filtration systems
  • Reclaimed water
  • Hydraulic fracturing

Specifications

Pipe Sizes 2″, 3”, 4”, 6”, 8”, 10”, 12”
Flanges 150 lb. ANSI Pattern
Pressure 150 psi (10.3 bar) line pressure
Temperature Operating 10˚ to 140˚ F (-12˚ to 60˚ C)
Storage -40˚ to 158˚ F (-40˚ to 70˚ C)
Accuracy ±0.75% of reading on iMAG 4700p and 4700r (±1.0% iMAG 4700), ±0.025% of full-scale flow from low flow
cutoff to maxi. flow rate of 10 m/sec
Low Flow Cutoff 0.5% of maximum flow rate
Material Body (2”-12”) Welded steel, epoxy-coated
Liner (2″ & 3”) Polyurethane/Noryl®
Liner (4”-12”) Santoprene flange/Polypropylene liner body
Electronics Housing Powder-coated diecast aluminum
Electrodes 316 stainless steel
Display Type 128×64 dot-matrix LCD
Digits 5 Digit Rate 8 Digit Total
Units

Please Note:
All iMAG meters are factory
set for gallons per minute
(GPM) rate and gallons
total. If other units are
required, they can be set in
the field

Rate Volume Units Rate Time Units Total Volume Units
Gallons
Liters
Barrels(42 gal)
Cubic Feet
Cubic Meters
Million Gallons²
Mega Liters²
Imperial Gallons
Million Imperial
Gallons²
Second
Minute
Hour
Day
Gallons
Liters
Barrels (42 gal)
Cubic Meters
Cubic Feet
Second Foot Day
Million Cubic Feet
Acre Feet
Acre Inches
Imperial Gallons
Fluid Ounces
Bidirectional¹ Forward Total, Reverse Total, Net Total, Batch Forward Total, Batch Reverse Total (Batch totals can be reset)
Power DC Power 9-36 Vdc @ 250 mA max, 30 mA average
Battery Backup
(Not for use as primary power)
DC powered units: Two lithium 3.6V ‘D’ batteries, replaceable.
AC powered units: One 9V alkaline battery, replaceable.
AC Power (iMAG 4700r
and 4700p only)
85-264Vac, 50/60Hz, 0.12A
Battery (iMAG 4700 only One lithium 7.2V ‘D’ size battery pack, replaceable.
Scaled Pulse
Output
Signal Current sinking pulse, isolated, 36 Vdc at 10 mA max
Pulse Rates User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150
pulses/sec max.
Options 4-20mA Current Loop Isolated, passive, 24Vdc, 650 Ω maximum current loop
HART/4-20mA HART protocol over 4-20mA line
High Speed Digital
Output (4700p only)
Isolated, open collector, 24 Vdc
Serial Communications Isolated, asynchronous serial RS485 (Reconfigurable for RS232 or 3.3V CMOS), Modbus® RTU protocol (factory
selectable)
Cable Power/Output Cable 20ft (6m) standard length polyurethane jacketed cable—for power and outputs (lengths up to 200’ available).
Remote Display Cable
(iMAG 4700r)
20ft (6m) standard length polyurethane jacketed cable—for connection between meter and remote display (lengths up to 200’ available).
Conductivity >20 microSiemens/cm
Empty Pipe Detection Hardware/software, conductivity-based
Regulatory #(EN 61326), 4”-12” certified to NSF/ANSI standard 61 60°C (140°F); 3” certified to NSF/ANSI standard 61
Cold Water 23°C (73.4°F)
Environmental NEMA 6P, IP68 (10ft (3m) depth, continuously)

Downloads

Datasheet: Seametrics iMAG 4700 Series Electromagetic Flow Meter

Quick Start Guide: Seametrics iMAG 4700 Series Electromagetic Flow Meter_1

Manual Instruction: Seametrics iMAG 4700 Series Electromagetic Flow Meter_2
