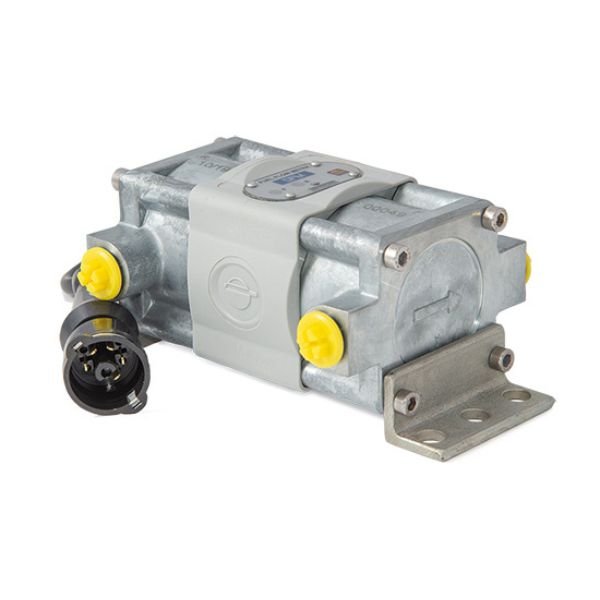

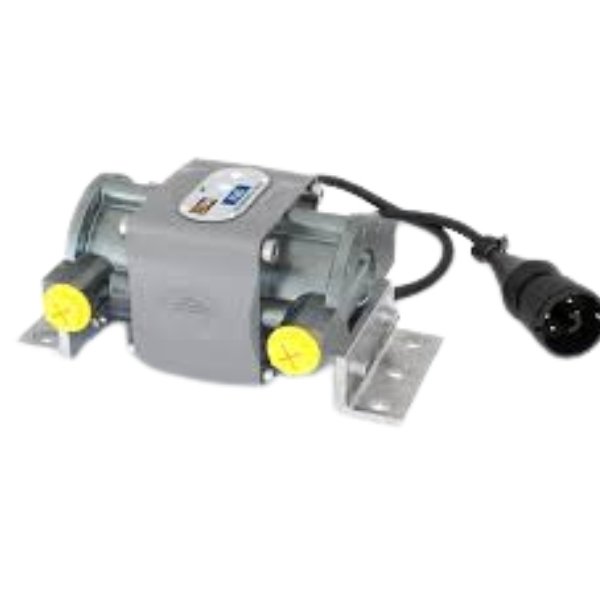

Technoton DFM-D Differential Fuel Flow Meter

Technoton DFM-D Differential Fuel Flow Meter differential fuel flow meter is designed for diesel fuel consumption measurement in fuel lines of vehicles and stationary engines and is used as part of a GPS vehicle tracking system.

Technoton DFM-D Differential Fuel Flow Meter differential fuel flow meter is designed for diesel fuel consumption measurement in fuel lines of vehicles and stationary engines and is used as part of a GPS vehicle tracking system. In addition, DFM D registers the working time of the engine in various modes of operation. DFM D is used for consumption monitoring of:

  • diesel fuel;
  • heating oil;
  • other types of liquid fuel with a kinematic viscosity of 1.5 to 6 mm2/ s.

DFM D fuel flow meters, which are equipped with a display, are used as a stand-alone (autonomous) solution for accounting fuel consumption, not requiring any connection to a web server. DFM D is more suitable for modern engines (Common rail or pump injector fuel systems) of vehicles and stationary units.

Features

  • Built-in battery
  • Differential measurement of fuel consumption
  • Replaceable mud filter

Applications

  • Bus
  • Truck
  • Marine Vessel
  • Minning Vehicles
  • Diesel Locomotives
  • Agricultural Machinery
  • Diesel General Engine
  • Road Building Machinery

Specifications

Connecting thread M14x1.5
Nominal pressure, bar 2
MAX pressure, bar 25
Supply voltage, V 10-45
Overvoltage protection, V ≤100
Current consumption, mA (24 V/12 V), mA 25 / 50
Operating temperature, (without/with display), °C -40..+85/
-20..+60
Ingress Protection Rating IP54
Relative accuracy error per chamber, %, not more than 1

List of model

Model Chamber volume, ml MIN flow rate in each chamber, l/h MAX flow rate in each chamber, l/h
DFM 100D 5 10 100
DFM 250D 12,5 50 250
DFM 500D 20 100 500

DFM modifications

Following DFM types are available:

  • fuel flow meters with display, one-chamber or differential);
  • fuel flow meters without display, one-chamber or differential).

DFM order identification codes* A symbol is not specified for differential fuel flow meters.

** For autonomous fuel flow meters Z version is not used.

*** This version is delivered upon special order. Designation U is available only for one-chamber flowmeters.

Output signals (specified in purchase order): pulse, digital RS232, digital RS485, digital CAN/S6
