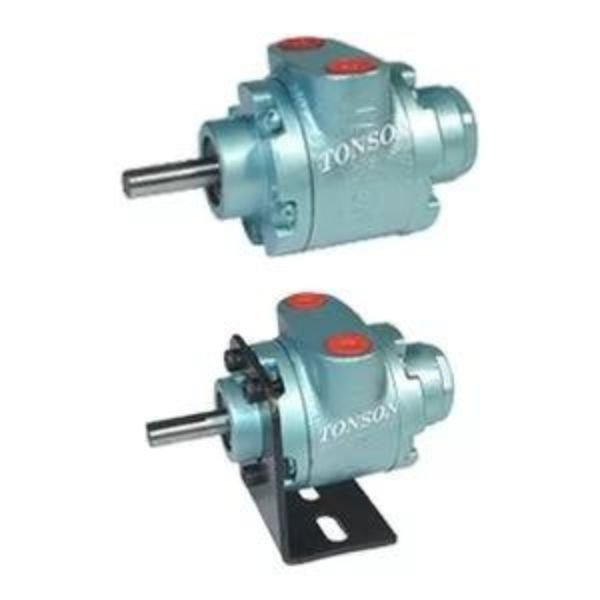

Tonson VA1 Standard Vane Air Motor

TONSON’s patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane type air motors. Vane Air Motors are all reversible and available in 8 vanes and Dual-Shaft, Diverse Gear Reductions, Brakes, Hand/Remote/Pendant Control are available. Air Motors are designed to operate by compressed air and to be used with filter, regulator and lubricator to improve performance and provide longer life. Air Motors can easily operate under conditions which are unfavorable for electric, hydraulic, stepper and servo motors.

Features

  • 100% Explosion-proof
  • Never Burn Out
  • Mounting Flexibility
  • Stalling Safety
  • Self-Sealing & Cool Running
  • All Plane Operation
  • Stepless Speed Control
  • Smooth Start
  • Toleration of Environment

Applications

  • Hoist / Winches
  • Conveyor Drives
  • Automation Devices
  • Hose Reels
  • Mixing Equipment
  • Choppers / Grinders
  • Turntables
  • Pump Drives
  • Food / Pharmacy Packaging

Specifications

  • Series: VA1
  • Type: Standard
  • Mounting: Face and Foot Mounting
  • Gear Ratio: 1:1
  • Performance at Maximum Speed
  1. Power (HP): 0.5
  2. Power (kW): 0.37
  3. Torque: 0.60 N·m
  4. Torque: 5.31 lb·in
  5. Speed: 6,000 RPM
  6. Air Consumption: 760 l/min
  7. Air Consumption: 27 CFM
  8. Speed: 500 RPM
  • Maximum Torque
  1. Torque: 0.68 N·m
  2. Torque: 6.01 lb·in

Downloads

Datasheet : Tonson VA1 Standard Vane Air Motor
