Wenglor P1KS001 Through Beam Sensor

The through-beam sensor works with red light as well as a transmitter and a receiver.

The through-beam sensor works with red light as well as a transmitter and a receiver. Thanks to their high light intensity, the sensor provides a high degree of operational reliability even with interferences like steam, fog or dust. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Applications

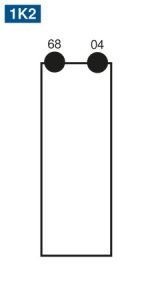

04 = Function Indicator
68 = supply voltage indicator

Specifications

Optical Data

Range 6,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Light Spot Diameter see Table 1

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Temperature Drift < 10 %
Temperature Range -40 … 60 °C
Reverse Polarity Protection yes
Lockable yes
Test input yes
Protection Class III

Mechanical Data

Housing Material Plastic
Degree of Protection IP67/IP68
Connection Cable, 3-wire, 2 m
Optic Cover PMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1) 3,063.75 a

Adjustable parameters

Other parameters Emitted light

Table 1

Working Distance 1 m 2 m 6 m
Light Spot Diameter 70 mm 140 mm 500 mm

Downloads

Datasheet : Wenglor P1KS001 Through Beam Sensor
